CF2238 is a ceiling mount speaker certified to the AS ISO7240.24 standard for fire & evacuation announcements in buildings. White metal grille finish.

200mm 100V 15W Ceiling EWIS Speaker White Metal Grille

Name: 200mm 100V 15W Ceiling EWIS Speaker White Metal Grille
SKU: CF2238
Price: 154.55 AUD
Availability: InStock

by: One-Shot

SKU: CF2238

CF2238 is a ceiling mount speaker certified to AS ISO7240.24 for fire & evacuation announcements in buildings. White metal grille finish.

$154.55

All Prices Shown are (ex GST)

Bulk Pricing

ea	$154.55
4+	$145.45
10+	$131.82

i h

Overview
Details
Warranty
Downloads

Overview

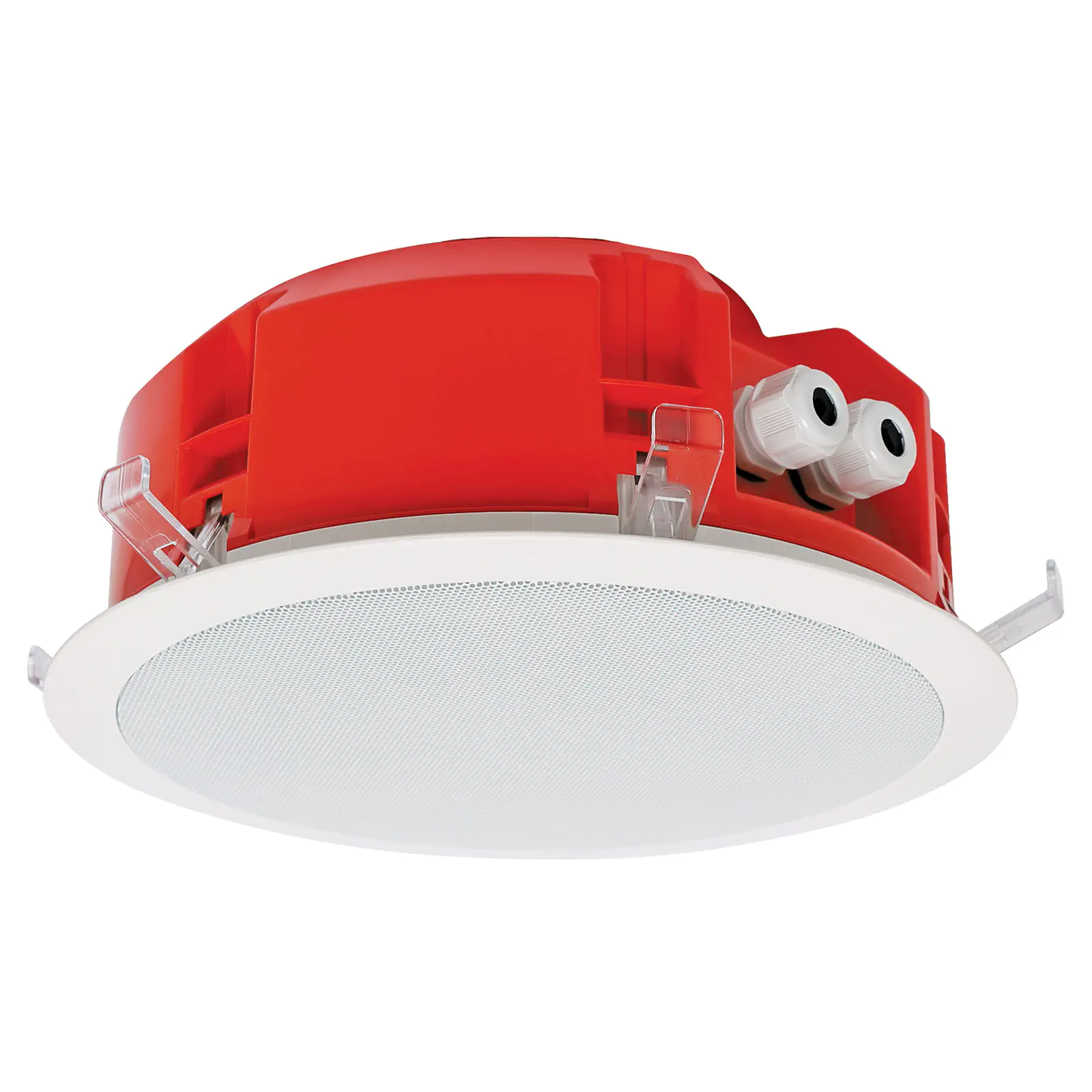

CF2238 is a ceiling mount speaker certified to the AS ISO7240.24 standard for fire & evacuation announcements in buildings. Each speaker is fitted with a fire retardant speaker/transformer dome and is fitted with sealed gland cable entries and terminal blocks for easy on site termination. The speaker utilises the One-Shot ‘snap fit’ mounting system. The CF2238 features a metal grille.

Features:

Designed to meet Australian Standard AS ISO7240.24
Excellent speech intelligibility
Overall depth only 117mm deep.
Tuned PA driver designed to meet the latest fire standards
High quality speaker driver developed for BGM, paging and emergency warning applications
Patented 6 way latching ensures a neat, sag free installation.
Fitted with 4 way wire protect terminal for loop in, loop out wiring.
Fitted with cable restraint plate and flame retardant safety cover.
Fitted with supervisory capacitor for line monitoring.
Assembled in Australia.
5 year warranty.

Specifications:

Rated Noise Power: 15W (100V line)

Power Taps & Impedance (100V line): 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ), 10W (1kΩ), 15W (668Ω)

Sensitivity: 90dB (1W @ 1m), 78dB (1W @ 4m)

Maximum Sound Pressure Level: 101dB (15W @ 1m), 89dB (15W @ 4m)

Frequency Response: 100Hz - 20kHz, 100Hz - 16kHz: ±80dB

Coverage Angle (-6dB): 500Hz: >180°, 1000Hz: 160°, 2000Hz: 80°, 4000Hz 70°

Environmental Type: A (for indoor applications as per standard)

Speaker Component: 200mm (8”) Paper Cone Speaker + Coaxial Tweeter

Mounting Hole: 246mmØ

Mounting Method: 6x Plastic Spring Loaded Clips

Line Monitoring: Yes, 22µF Bipolar Capacitor

Applicable Cable: 2.5mm2 (14AWG) max conductor area

Connection: 4 Way Screw Terminal

Finish: White flame retardant ABS grille (ABS AF312C)

Clear Flame retardant ABS spring clips (Makrolon 6557)

Red flame retardant ABS transformer dome cover (Starex VH-0800)

Powdercoated aluminium grille insert (RAL9003 white, RAL9004 black)

Weight: 1.95kg

Dimensions: 266Ø x 127D mm

Backed by an industry leading 5 Year Speaker Performance Warranty.

This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Details

Products specifications

Warranty	5 Years
Speakers
Input	100 Volt Line Speakers
Size	8" (200mm)
