150mm 100V Marine Ceiling Speaker

by: Redback
SKU: CM2111
This compact, low profile speaker features a 150mm (6”) 6W driver and snap fit edge to edge grille for a stylish finish.
$117.27

All Prices Shown are (ex GST)
Bulk Pricing
ea $117.27
6+ $108.18
12+ $104.55
i h

Overview

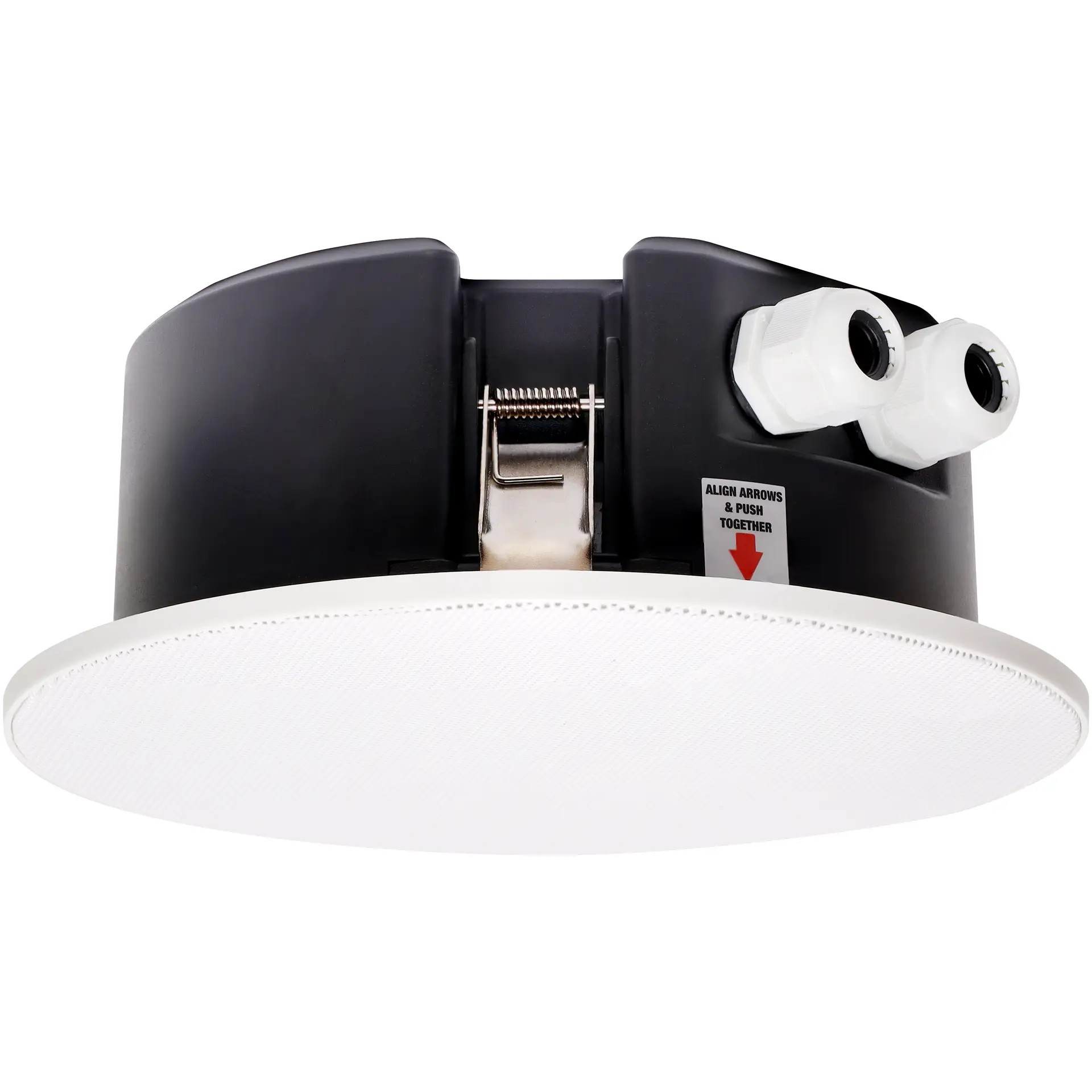

This compact, low profile speaker features a  150mm (6”) 6W driver and snap fit edge to edge aluminium grille for a stylish finish. Though suitable for any 100V line general PA usage, it has been designed to be ideally used in large passenger ferries and commercial vessels. It features sealed cable gland entries, rear dust cover and dual spring retention clips - plus additional screw securing holes in case of rough seas!  Termination is made easy with a pluggable 4 pin terminal block for loop in, loop out cabling. A thermal fuse is also fitted to protect the speaker line.



Specifications:

Power taps: 0.375, 0.75, 1.15, 3, 6W
SPL 1W @ 1m: 91dB @ 1kHz ±2dB
Freq response: 100Hz - 15kHz
Ceiling cutout: 165mm Ø
Mounting depth: 73mm
Terminal type: 4 way pluggable terminal block
Flame retardant cover: Yes
Cable entry:  PG13.5 (10-12mm OD cable)

Details

Products specifications

Warranty 2 Years, 2 Years
Speakers
Input 100 Volt Line Speakers
Size 5" (130mm)
