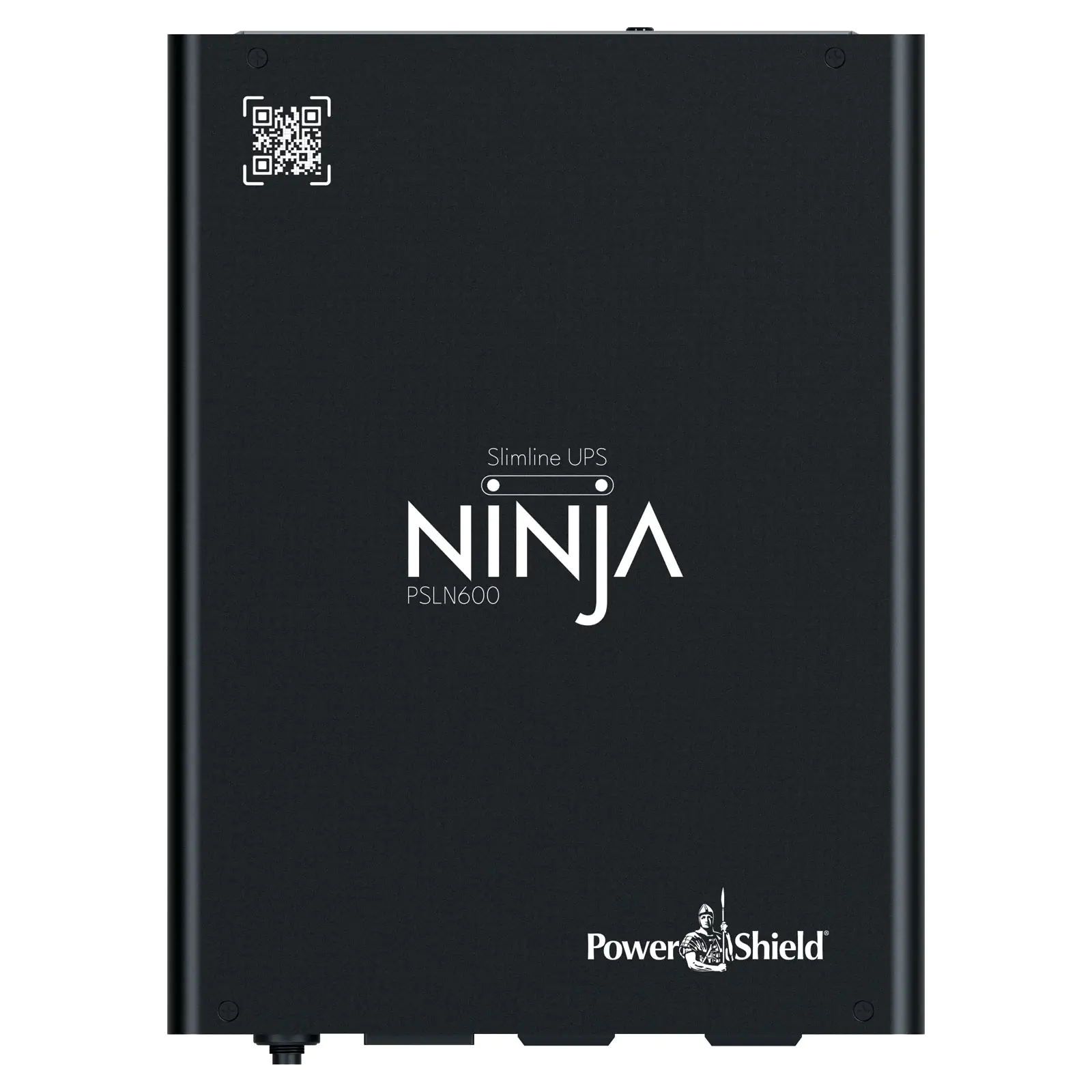

PowerShield PSLN600 Ninja Slimline LifePO4 600VA UPS

by: PowerShield
SKU: D0863
Designed for Australian conditions the PowerShield Ninja Slimline UPS features Lithium Iron-Phosphate (LiFePO4) battery technology to allow the UPS to operate continuously at up to 40 degrees celcius without reduction in battery life. At 42mm in height, the Ninja Slimline is the perfect UPS for compact spaces.
$740.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $740.91
i h

Overview

Designed for Australian conditions the Ninja Slimline UPS features Lithium Iron-Phosphate (LiFePO4) battery technology to allow the UPS to operate continuously at up to 40 degrees celsius without reduction in battery life. At 42mm in height, the Ninja Slimline is the perfect UPS for compact spaces.

Even the smallest disruption in power can affect valuable equipment and send an electrical system into reboot, often necessitating a technician to provide support. The Ninja Slimline UPS will ensure constant, uninterrupted power to not only protect equipment and extend its lifespan, but avoid unnecessary reboot glitches and costs.

With its ultra-thin design the Ninja Slimline UPS is designed for environments where space is limited and perfect for use in protecting equipment such as electrical boards, irrigation and reticulation panels, switchboards, intelligent homes, light boards, menu boards and anywhere else that requires a compact power solution.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.





Specifications:



Model:

Model Number: PSLN600

Capacity: 600VA/360W

Topology: Stand By


Input:

Voltage: 220-240V AC

Voltage Range: 180-270V AC

Frequency Range: 50Hz (auto-sensing)



Output:

Output Voltage: 240V AC ± 10%

Frequency: 50Hz

Transfer Time: 6ms (Typical)

Waveform: Simulated Sine Wave

Outlets - UPS & Surge Protection: 2 x IEC



Battery:

Battery Type: LiFePO4 18650

Battery Number: 1

Battery Cell Configuration: 4S4P

Typical Recharge Time: 4-8 hours to recover to 90% capacity



Protection:

Full Protection: Overload, discharge, thermal, short circuit and over charge protection

Surge Protection: 760Joules / 5000Amps



Interface:

Interface - Standard Communications: R2-232 port provides communication and power for optional web card

Interface - Web/SNMP Card Option: PSECMB - External Web/SNMP card for UPS monitoring

Environmental Monitoring Device Option: PSEMD - for temperature and humidity monitoring, requires Web/SNMP card option

Software: NetGuard supports - Windows, Linux, Unix and Mac (free download)



Physical:

Net Weight: 2.5kgs

Dimensions: 277 x 210 x 42 mm (UPS only)



Operating Environment:

Temperature: 0-40°C (non-condensing)

Humidity: 0-90% RH

Noise Level: Less than 40dB

Elevation: 0-2000m



Features:

  • Long life LiFePO4 battery with up to 10 year service life
  • Silent operation for use in any environment
  • Auto restart when AC recovers without any interaction by the user
  • High efficiency fan-less design reduces heat
  • Wall/surface mountable brackets
  • Optional external web/SNMP card for remote monitoring
  • 5 year warranty with local support through PowerShield
