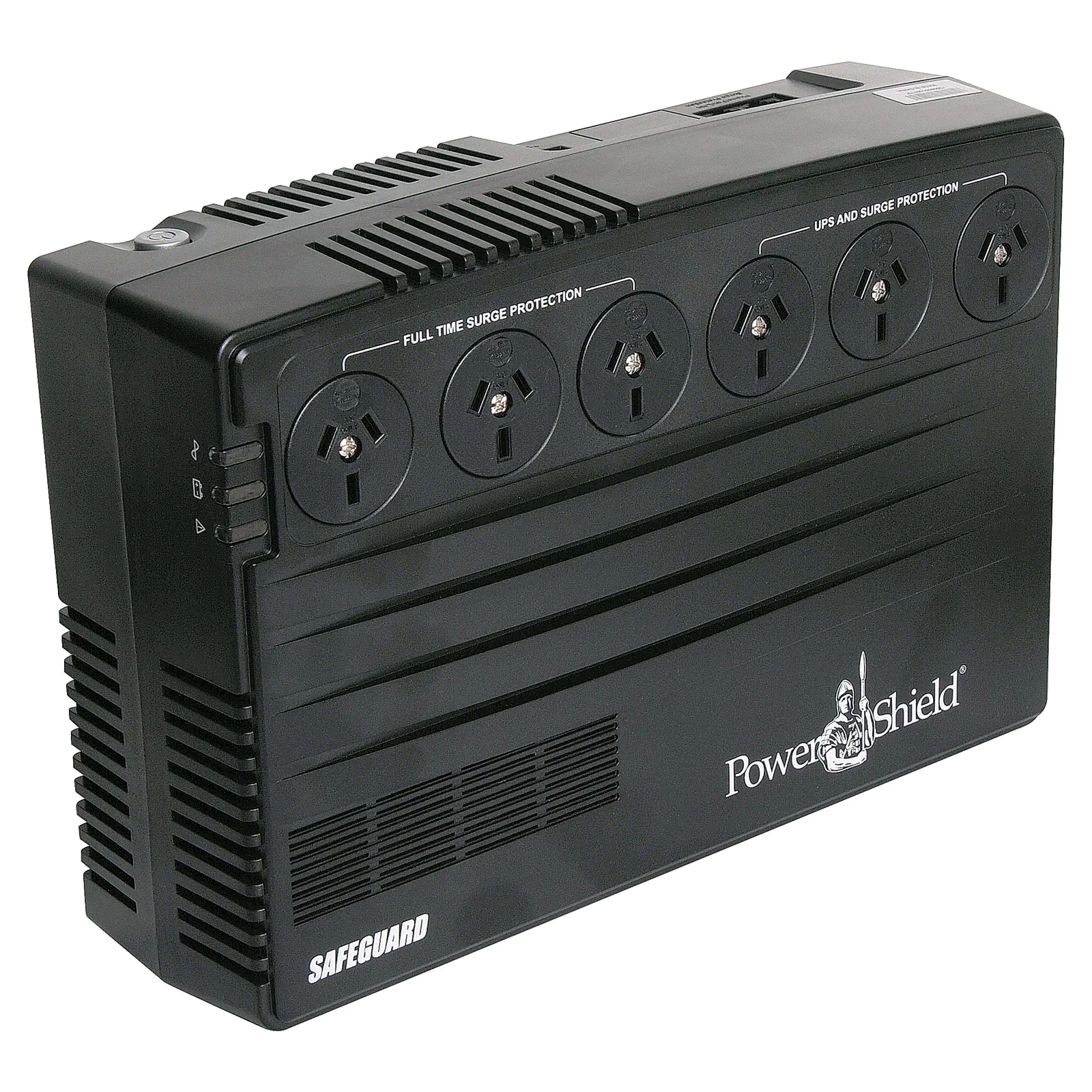

PowerShield PSG750 UPS 750VA Safeguard

by: PowerShield
SKU: D0873
The PowerShield PSG750 UPS is perfect for a home/office solution. It includes three battery backup and surge protected Australian sockets, three dedicated Australian outlets with surge protection and RJ45 phone line surge protection.Provides modified sinewave output and has an audible alarm when activated.
$171.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $171.82
i h

Overview

The Powershield SafeGuard 750VA Uninterruptible Power Supply (UPS) is designed for a home/office solution. It includes three battery backup and surge protected Australian sockets, three dedicated Australian outlets with surge protection and RJ45 phone line surge protection. Provides modified sinewave output and has an audible alarm when activated. Includes management software to suit most operating systems.


Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.





Specifications:

Capacity: 750VA / 450W Line interactive



Input:

Voltage: 240V a.c. (Nominal)

Voltage range: 177V a.c to 290V a.c.

Frequency: 50Hz or 60Hz (Auto Sensing)



Output:

Output voltage: 240V a.c. ±10%

Frequency Range (Batt. Mode): 50Hz or 60Hz ±-1Hz

Battery transfer time: 6 msec (typical)

Wave Form (Batt. Mode): Simulated Sine Wave

Australian Outlets: 3 (UPS and Surge Protection)

Australian Outlets: 3 (Full Time Surge Protection)



Battery:

Capacity: 12V/9Ah

Backup time: 25 min (1 PC load at 100W)

Typical Recharge Time: 6-8 hours recover to 90% capacity



Protection:

Full Protection: Overcharge, discharge, short circuit and thermal protection

Surge Protection: 468Joules /11000Amps - Best in its class

Data Protection: Tel/modem/LAN, RJ45 connector



Communications and Management:

Interface: USB interface

Software: PowerShield® NetGuard® supports Windows, Linux, Unix & Mac

LED Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault

Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault



Physical:

Dimensions: 292L x 91W x 199Hmm

Weight: 5.5kg



Operating Environment:

Temperature: 0-400°C

Humidity: 0-90% (RH Non-condensing)

Noise Level: <5dB (No Fan)



Features:

  • Automatic Voltage Regulation (Buck and Boost)
  • Light-weight compact and elegantly designed
  • Intelligent microprocessor control
  • Monitoring and shutdown software included
  • Fax/modem/LAN surge suppression port
  • Overload protection and alarm
  • Output short circuit protection
  • Start on battery function (cold start)
  • USB communication
  • Easy user replaceable battery
  • Australian/New Zealand approved sockets
  • Wall mountable
  • Fast charging – 90% in 4 hours
