PowerShield PSG1000 UPS 1000VA Safeguard

by: PowerShield
SKU: D0874

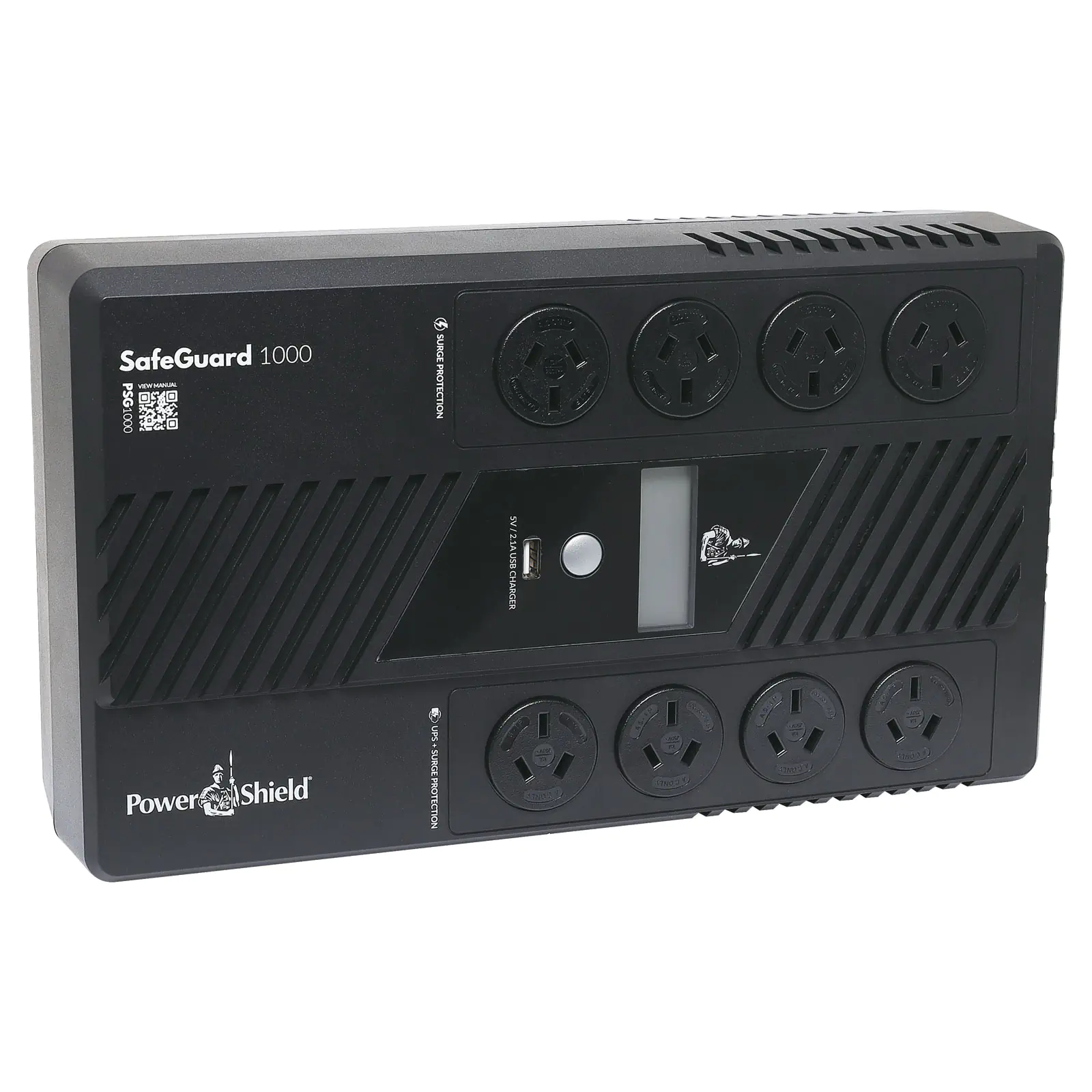

The PowerShield SafeGuard 1000VA Uninterruptible Power Supply (UPS) is designed for a home/office solution with surge and spike protection.
$271.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $271.82
i h

Overview

The Powershield PSG1000 SafeGuard 1000VA Uninterruptible Power Supply (UPS) is designed for a home/office solution. Similar to but larger than the D 0873 model, this new model includes four battery backup and surge protected Australian sockets, another four dedicated surge-only protection outlets, USB charging and communications parts, plus an interactive LCD screen displaying relevant battery data. The unit provides simulated sinewave output and has an audible alarm when activated. It includes management software to suit most PC operating systems and can be wall mounted if required.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.





Specifications:



Capacity: 1000VA/600W Line interactive

Model: Powershield UPS PSG1000



Input:

Voltage: 240V a.c. (Nominal)

Voltage range: 177V a.c to 290V a.c.

Frequency: 50Hz or 60Hz (Auto Sensing)



Output:

Output voltage: 240V a.c. ±10%

Frequency Range (Batt. Mode): 50Hz or 60Hz ±-1Hz

Battery transfer time: 6 msec (typical)

Wave Form (Batt. Mode): Simulated Sine Wave

Australian Outlets: 4 (UPS and Surge Protection)

Australian Outlets: 4 (Full Time Surge Protection)



Battery:

Capacity: 12V/9Ah

Backup time: 25 min (1 PC load at 100W)

Typical Recharge Time: 6-8 hours recover to 90% capacity



Protection:

Full Protection: Overcharge, discharge, short circuit and thermal protection

Surge Protection: 475Joules/13000Amps - Best in its class

Data Protection: NA



Communications and Management:

Interface: USB interface

Software: PowerShield® NetGuard® supports Windows, Linux, Unix & Mac

LED Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault

Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault



Physical:

Dimensions: 345L x 200W x 100Hmm

Weight: 6.1kg



Operating Environment:

Temperature: 0-40°C

Humidity: 0-90% (RH Non-condensing)

Noise Level: <40dB (No Fan)



Features:

  • Automatic Voltage Regulation (Buck and Boost)
  • Informative Screen Display
  • USB Charging Port
  • Light-weight compact and elegantly designed
  • Intelligent microprocessor control
  • Monitoring and shutdown software included
  • Overload protection and alarm
  • Output short circuit protection
  • Start on battery function (cold start)
  • USB communication
  • Easy user-replaceable battery
  • Australian/New Zealand approved sockets
  • Wall mountable

Details

Products specifications

Warranty 2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
