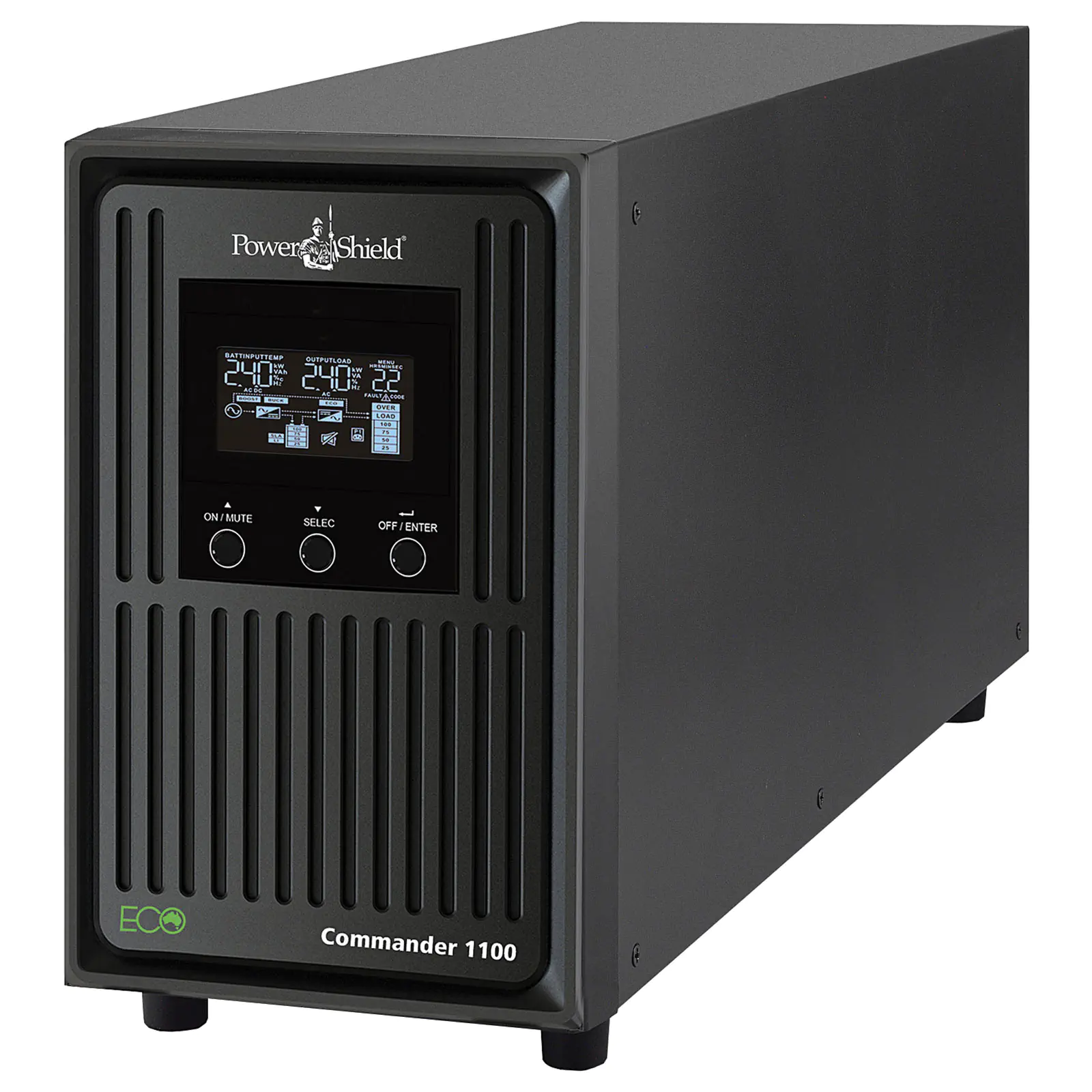

PowerShield Commander PSCM1100 1100VA UPS

The Powershield Commander 1100VA Uninterruptible Power Supply (UPS) provides mains like pure sine wave for powering devices with less heat generation and high efficiency. Besides providing Automatic Voltage Regulation (AVR) it also provides for a Pure Sine Wave output while in backup mode. Perfect for servers, motor driven equipment and sensitive equipment requiring a perfect sinewave to operate correctly in both regular and battery back up modes. Fitted with IEC outlets and RJ11 phone line surge protection. The front panel features an LCD providing real time battery management, showing battery and equipment load levels. It also features audible alarm and a host of safety features including discharge, overcharge, short circuit, overheat and overload protection. Includes management software to suit most operating systems.


Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.

Pure Sine Wave Output

The Commander Tower provides a sine wave output, even when the UPS is running off of its batteries.

The pure sine wave offers an economical solution to back up gates, cameras, computers, motors, telephone systems and other sensitive equipment.

Output Power Factor 0.9

With an output power factor of 0.9 the Commander Tower is a high-density UPS that will provide higher performance and efficiency to critical applications.

Programmable Power Management

Features a combination of both Australian and IEC outlets.

With programmable power management outlets users can easily and independently control load segments. During power failure this feature enables users to extend battery time to mission-critical devices by shutting down noncritical devices in a timely manner.

Ultra Modern, Informative LCD

Designed by Power Shield engineers this ultra modern LCD features extra large numeral displays and an informative mimic allowing users to view up to date information at a glance.

ECO Mode:

With built in advanced ECO mode this UPS will achieve an efficiency of up to 98% during normal mains operation. Using this option will allow for reduced ongoing running costs.

Smart AVR with Buck and Boost

With a built in voltage regulator, the Commander Tower will maintain regulated nominal output without using battery power during brownouts and overvoltages.

Emergency Power Off Function (EPO)

This feature can turn off and isolate the UPS in the event of fires or other emergencies.

Multiple Communication Available

USB, RS-232 supports PowerShield NetGuard® software for Windows, Linux and Mac

Intelligent slot for either PSSNMPV4, PSAS400, PSMbus

Specifications:

Powershield P/No: SS1000

Battery backup time: 14 minutes @ half load, 5 minutes @ full load.

Battery backup capacity: 1000VA

Transfer time: 3ms max

Input voltage (nominal): 240V AC Input

Frequency: 50-60Hz

Dimensions: 380 x 200 x 180

Weight: 15kg

Features:

• Pure Sine Wave Output
• Output Power Factor 0.9
• Free, programmable Power Management
• Ultra Modern, Informative LCD – Shows Battery Time Remaining
• ECO Mode
• Smart AVR
• Emergency Power Off Function
• Multiple Communication Available with faster SNMP Card
