PowerShield PSD650 UPS 650VA Defender

by: PowerShield
SKU: D0881

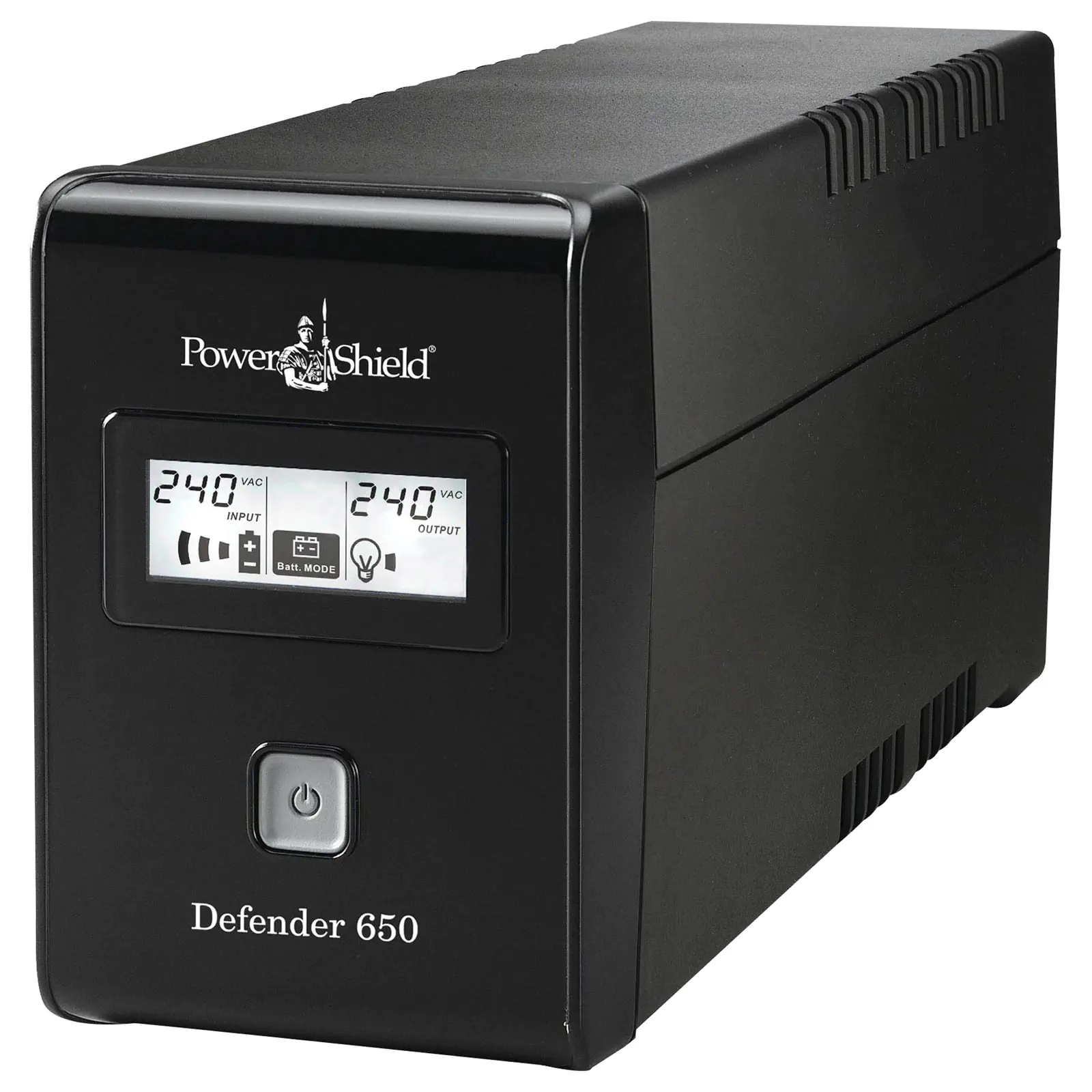

The Powershield Defender PSD 650VA Uninterruptible Power Supply (UPS) is designed to support multiple computers and peripherals, networked PC's and point of sale systems.
$140.91

All Prices Shown are (ex GST)
Bulk Pricing
ea $140.91
i h

Overview

The Powershield Defender PSD 650VA Uninterruptible Power Supply (UPS) is designed to support multiple computers and peripherals, networked PC's and point of sale systems. In the event of a power outage the UPS will allow continued operation of the PC so that work can be saved and the system can be shutdown safely.

Generally, computers need to be shutdown in a specified manner to avoid damaging the software/data that is being used. By using a UPS and the included software a computer can be automatically shutdown safely in the event of a power outage. Backup time up to 10 minutes depending on connected load. Compact design is ideal for under desk operation.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.





Specifications:



Input:

Voltage: 240Vac (Nominal)

Voltage Range: 177-290Vac

Frequency Range: 50/60Hz ±5Hz (Auto sensing)



Output:

Output Voltage: 240Vac ±10%

Frequency: AC mode tracks utility

Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz

Transfer Time: 6ms (Typical)

Waveform (Batt. Mode): Simulated Sine Wave

Australian outlets- UPS & surge protection: 2



Battery:

Battery Type & Number: 12V*9AH (x1)

Typical Recharge Time: 6 hours recovery to 90% capacity

Backup Time (50% Load): 6min



Protection:

Full Protection: Overload, discharge, thermal, short circuit and overcharge protection

Surge Protection: 312Joules / 6500 Amps



Communications & Management:

Interface: USB Interface

Software: NetGuard® supports Windows®, Linux, Unix & MAC (Free Download)

LCD Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload

Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault, Overload



Physical:

Dimensions: 328D x 100W x 145H mm

Net Weight: 5.2kg



Operating environment:

Temperature: 0 - 40°C

Humidity: 0 - 90% (RH Non-condensing)

Noise Level: <5dB (no fan)



Compliance:

Safety/EMC: EN62040-1-1 2003 , IEC60950-1 : 2001 , EN62040-2 2006

RoHS: Directive 2011 / 65 / EU



Features:

  • Stylish and informative LCD display
  • Surge Protection, Best in it’s Class
  • Excellent microprocessor control guarantees high reliability
  • Australian outlet sockets for UPS and Surge protection
  • Buck and boost AVR for voltage stabilization
  • User replaceable batteries
  • Silent operation (no fans included)
  • Auto restart when AC returns
  • Off-mode charging
  • Cold start function
  • USB communication with sophisticated NetGuard® software
  • Free download software included
