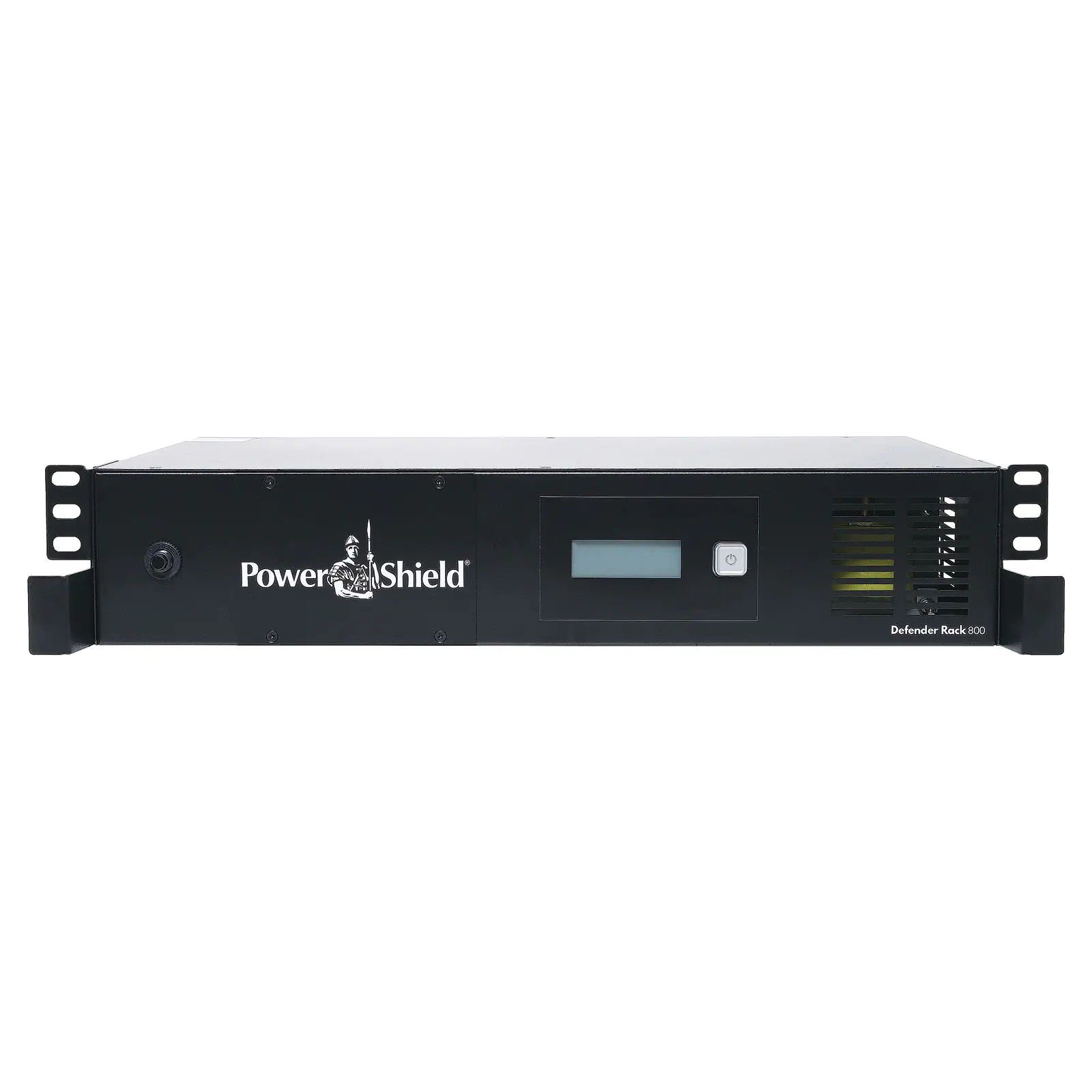

PowerShield PSDR800 UPS 800VA Defender Rack Mount

by: PowerShield
SKU: D0884
The PowerShield PSDR800 800VA Defender Rack Mount UPS expands the successful Defender Range by building the popular features into a Rack Mount UPS. At 230mm deep, this is the perfect UPS for shallow, wall mounted Comms cabinets.
$400.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $400.00
2+ $363.64
i h

Overview

The all new Defender Rackmount 800 UPS expands the successful Defender Range by building the popular features into a Rack Mount style. At 230mm deep, this is the perfect UPS for shallow, wall mounted Comms cabinets.

This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.

Note: this model features an Intelligent SNMP Communications Slot.





Specifications:



Model:

Model Number: PSDR800

Capacity: 800VA / 480W

Topology: Line Interactive



Input:

Voltage: 240Vac (Nominal)

Voltage Range: 177-290Vac

Frequency Range: 50/60Hz (auto sensing)



Output:

Output Voltage: 240Vac ± 10%

Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz

Transfer Time: 6ms (Typical)

Waveform (Batt. Mode): Simulated Sine Wave

Australian Outlets - UPS & Surge Protection: 2x 10 Amp IEC Sockets, 6 x Australian Sockets



Battery:

Battery Type & Number: 12V / 9AH (x1)

Typical Recharge Time: 4- 6 hours recover to 90% capacity

Backup Time (50% Load): 8 min



Protection:

Full Protection: Overload, discharge and overcharge protection

Surge Protection: 312Joules / 6500Amps



Communications and Management:

Interface: USB as standard, Intelligent slot for PSSNMP

Software: NetGuard® supports - Windows®, Linux, Unix and Mac (Free Download)

HID: Supports Windows, Apple, Linux, NAS and various industrial controllers

LCD Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload

Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault, Overload



Physical:

Dimensions: 230L x 438W x 86H mm

Net Weight: 7.7kgs



Operating Environment:

Temperature: 0-40°C

Humidity: 0-90% RH (non-condensing)

Noise Level: Less than 5dBA @ 1 meter (no fan)



Compliance:

Safety/EMC: EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006

RoHS Directive: 2011/65/EU



Features:

  • Offering the best protection in its class, protecting against damaging surges
  • Modern, stylish LCD display indicates voltage in/out, amount of load and remaining capacity
  • The AVR automatically bucks/boosts unstable fluctuating utility voltages, bringing them within 10% of nominal voltage range and thereby protecting valuable equipment
  • Compact design at just 230mm deep
  • Intelligent slot for SNMP communications card
  • Battery is easily hot swappable and user replaceable
  • Designed to run cool without fans
  • After an extended power outage the UPS will turn back on and resume equipment functionality once power has returned
  • Allows for orderly shutdown without software
  • Free, downloadable NetGuard software provides complete power monitoring
  • The plugged in UPS will continue to charge internal batteries whether the unit is on or off
  • Comes standard with 6 Australian sockets and 2 IEC outlets. Of the 6 Australian outlets, 4 can be used with plug packs
  • The UPS can turn on equipment when it is off, simply by connecting equipment and turning the UPS on
  • Plug and play on any computer or NAS drive

Details

Products specifications

Warranty 2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Brochure
PDF
.pdf
Instructions
PDF
.pdf
Powershield Product Range
PDF
