The Defender Rackmount 1500VA UPS expands the successful Defender Range by building the popular features into a Rack Mount style. At 300mm deep, this is the perfect UPS for shallow, wall mounted Comms cabinets.

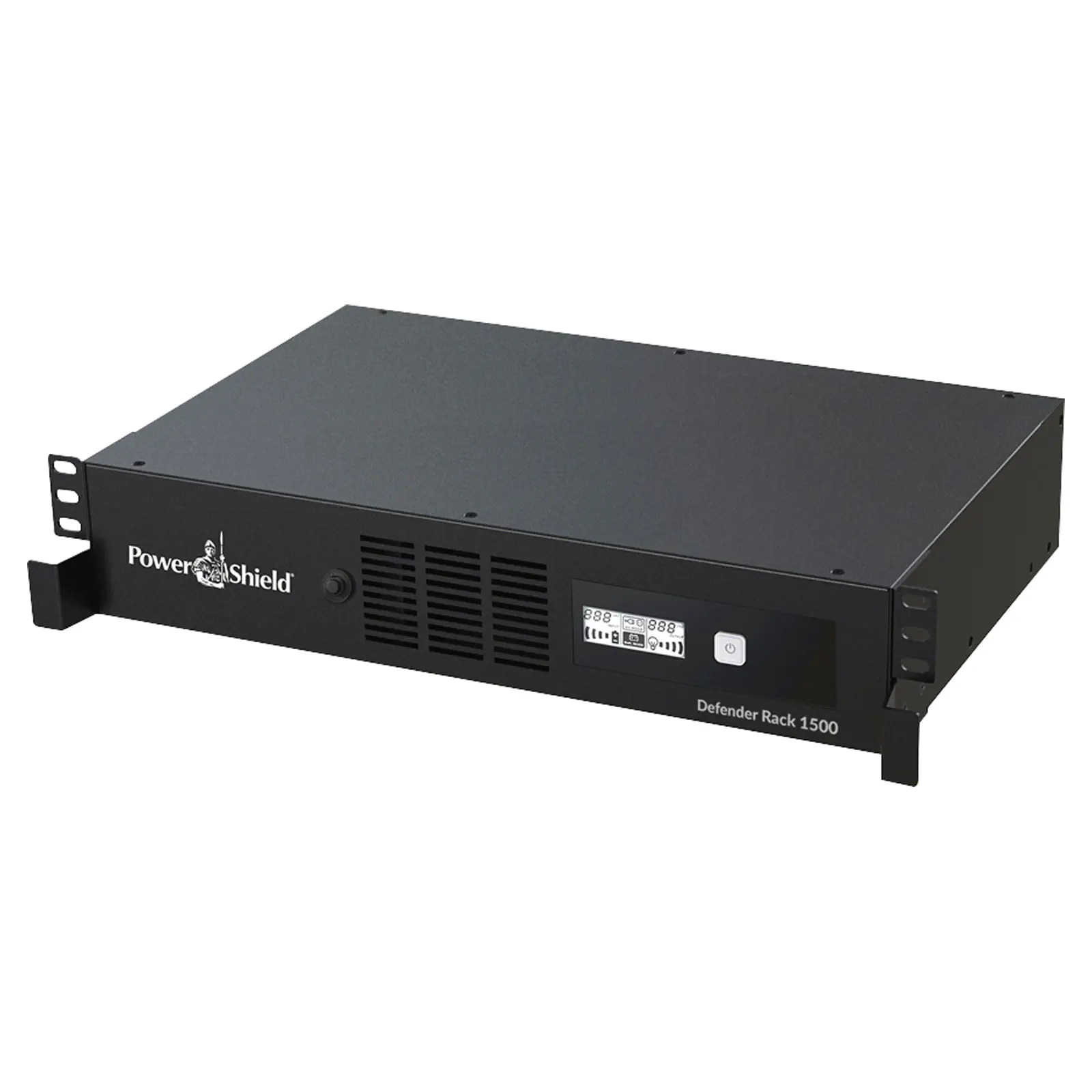

PowerShield PSDR1500 UPS 1500VA Defender Rack Mount

Name: PowerShield PSDR1500 UPS 1500VA Defender Rack Mount
SKU: D0889
Price: 840.00 AUD
Availability: InStock

by: PowerShield

SKU: D0889

The PowerShield Defender Rackmount 1500VA UPS expands the successful Defender Range by building the popular features into a Rack Mount style. At 300mm deep, this is the perfect UPS for shallow, wall mounted Comms cabinets.

$840.00

All Prices Shown are (ex GST)

Bulk Pricing

ea	$840.00
2+	$789.09

i h

Overview
Details
Warranty

Overview

The Defender Rackmount 1500VA UPS expands the successful Defender Range by building the popular features into a Rack Mount style. At 300mm deep, this is the perfect UPS for shallow, wall mounted Comms cabinets. This versatile UPS uses Automatic Voltage Regulation (AVR) to minimise the effects of fluctuations in input voltage, protecting your valuable equipment from power line disturbances whilst also incorporating the best surge protection in its class.

Specifications:

Model:

Model Number: PSDR1500

Capacity: 1500VA / 900W

Topology: Line Interactive

Input:

Voltage: 240Vac (Nominal)

Voltage Range: 177-290Vac

Frequency Range: 50/60Hz (auto sensing)

Output:

Output Voltage: 240Vac ± 10%

Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz

Transfer Time: 6ms (Typical)

Waveform (Batt. Mode): Simulated Sine Wave

Australian Outlets - UPS & Surge Protection: 2x 10 Amp IEC Sockets, 5 x Australian Sockets

Battery:

Battery Type & Number: 12V / 9AH (x2)

Typical Recharge Time: 6 hours recover to 90% capacity

Backup Time (50% Load): 8 min

Protection:

Full Protection: Overload, discharge and overcharge protection

Surge Protection: 312Joules / 6500Amps

Communications and Management:

Interface: USB as standard, Intelligent slot for PSSNMP

Software: NetGuard® supports - Windows®, Linux, Unix and Mac (Free Download)

HID: Supports Windows, Apple, Linux, NAS and various industrial controllers

LCD Alarm: AC Mode, Battery Mode, Low Battery (Batt. Mode), Fault, Overload

Audible Alarm: Battery Mode, Low Battery (Batt. Mode), Fault, Overload

Physical:

Dimensions: 300L x 438W x 86H mm

Net Weight: 13.8kgs

Operating Environment:

Temperature: 0-40°C

Humidity: 0-90% RH (non-condensing)

Noise Level: Less than 5dBA @ 1 meter (no fan)

Compliance:

Safety/EMC: EN62040-1 -1 2003, IEC60950-1 : 2001, EN62040-2 2006

RoHS Directive: 2011/65/EU

Features:

Offering the best protection in its class, protecting against damaging surges
Modern, stylish LCD display indicates voltage in/out, amount of load and remaining capacity
The AVR automatically bucks/boosts unstable fluctuating utility voltages, bringing them within 10% of nominal voltage range and thereby protecting valuable equipment
Compact design at just 300mm deep
Intelligent slot for SNMP communications card
Battery is easily hot swappable and user replaceable
Designed to run cool without fans
After an extended power outage the UPS will turn back on and resume equipment functionality once power has returned
Allows for orderly shutdown without software
Free, downloadable NetGuard software provides complete power monitoring
The plugged in UPS will continue to charge internal batteries whether the unit is on or off
Comes standard with 5 Australian sockets and 2 IEC outlets.
The UPS can turn on equipment when it is off, simply by connecting equipment and turning the UPS on
Plug and play on any computer or NAS drive

Details

Products specifications

Warranty	2 Years

Warranty

WARRANTY

We offer 2 Years warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
