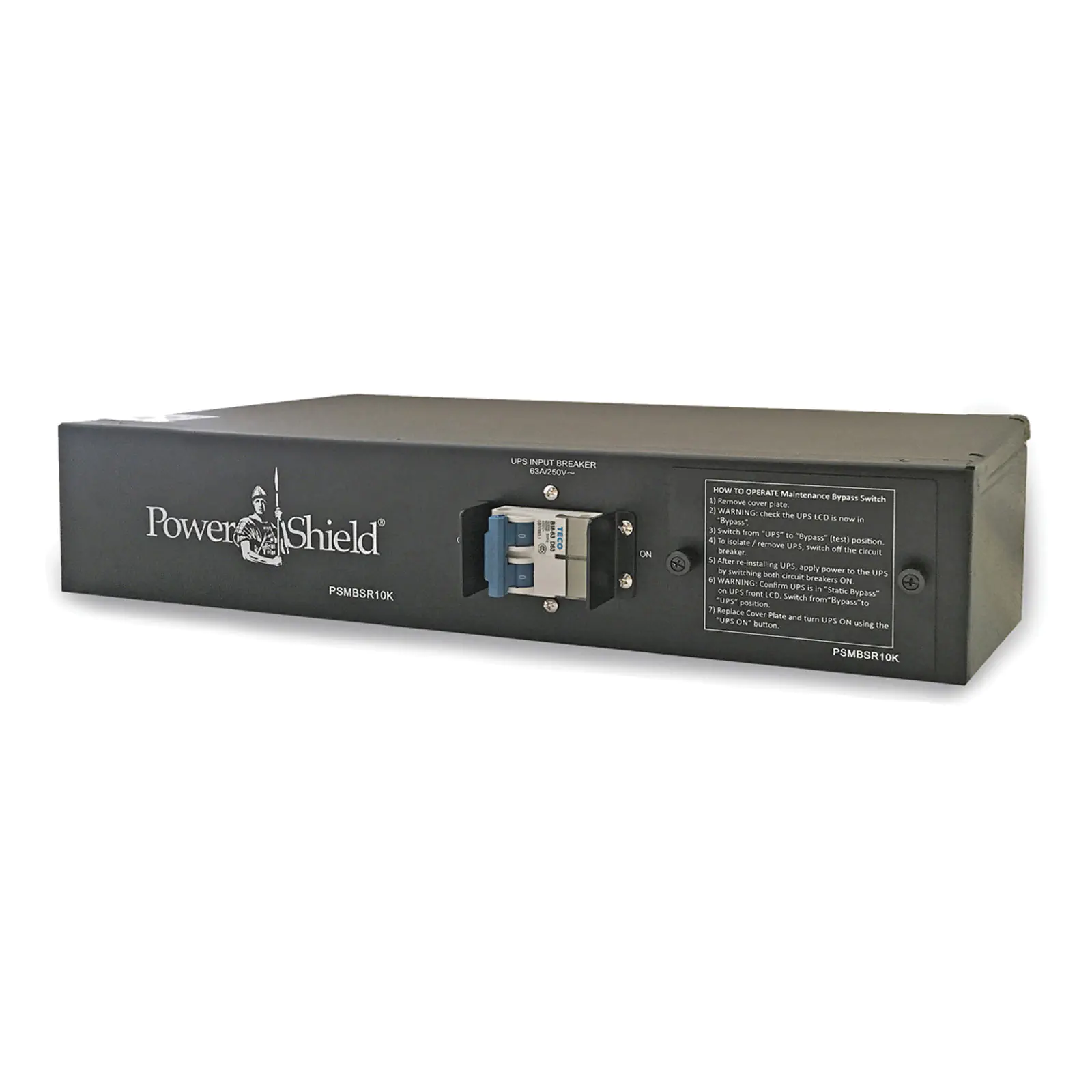

PSMBSR10K Maintenance Bypass Switch PDU 10kVA

by: PowerShield
SKU: D0922
Mechanical safety microswitch with static bypass activation is standard. This eliminates the possibility of incorrect switching sequences and hence possible damage to the UPS and injury to personnel. 10kVA
$1,030.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $1,030.00
i h

Overview

A 6-10kVA mechanical safety microswitch with static bypass activation is standard. This eliminates the possibility of incorrect switching sequences and hence possible damage to the UPS and injury to personnel.

A correctly designed MBS enables a technician to perform maintenance on a UPS at any time, without interruption to normal business operations with no need to shut down your critical electrical load. While in the “Bypass” position the UPS will still receive power from the mains (or alternative power source) so that the technician can perform maintenance procedures, without interruption to the load.

In the “Bypass and Isolate” position there is no voltage present at the input and output terminals of the UPS. Hence in this position, a trained technician can safely work on components within the UPS. Also, if need be the UPS can be safely removed and replaced, without danger to the technician and without interruption to the load.



 PowerShield offers a versatile range of MBS solutions (Maintenance Bypass Switch) and PDUs (Power Distribution Units) for all types of UPS applications.





Specifications:



UPS Rating: 6-10kVA

Input (Nominal): 240V AC

Input Plug: Hard wired

Output (Nominal): 240V AC

Output Sockets: Hard wired

Style: Rack mountable

Dimensions: 254 x 433 x 88mm.



Features:

  • Mechanical safety microswitch with static bypass activation is standard. This eliminates the possibility of incorrect switching sequences and hence possible damage to the UPS and injury to personnel
  • Optional PDU available to connect 10A/15A devices through IEC distribution outlet sockets
