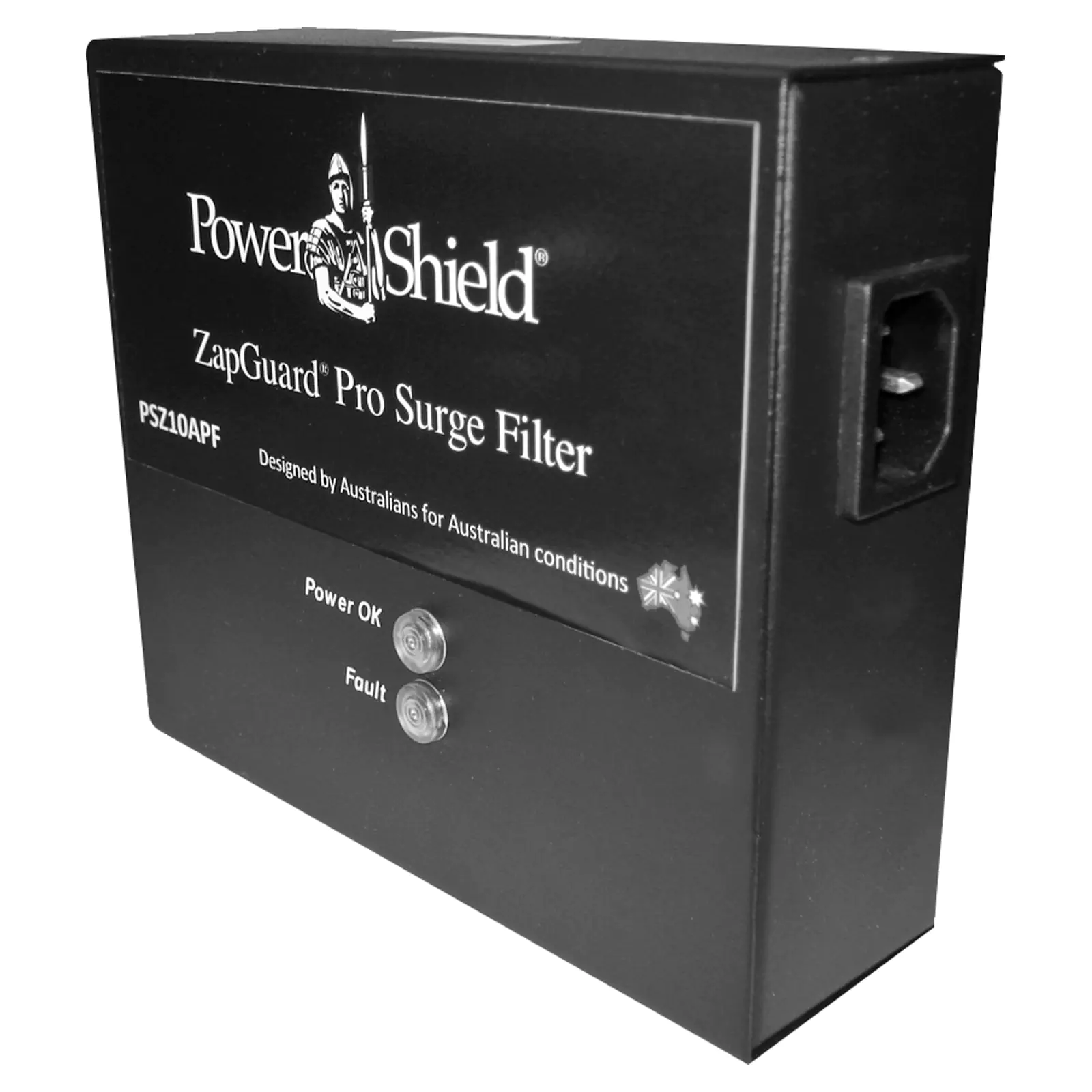

10A IEC C13 / C14 In Line Power Filter

by: PowerShield
SKU: D0942
Provides secondary protection for critical equipment in locations prone to unreliable electrical supply, such as lightning prone regions. Ideally suited for use in conjunction with UPS systems or as secondary surge protection connected in line at the equipment location. Excess voltage transients are diverted to neutral and earth, limiting the damage to the connected appliance.
$398.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $398.18
2+ $374.55
i h

Overview

Provides secondary protection for critical equipment in locations prone to unreliable electrical supply, such as lightning prone regions. Ideally suited for use in conjunction with UPS systems or as secondary surge protection connected in line at the equipment location. Excess voltage transients are diverted to neutral and earth, limiting the damage to the connected appliance. Once the spike condition is alleviated, the unit returns to normal operation. Designed for commercial installations with mission critical equipment such as servers, medical appliances etc.





Specifications:



Nominal Voltage: 200-250VAC, Single phase, 48-62Hz

Ports: 2 Ports

MCOV Uc: 320Vac L-N, 255VAC N-E

TOV: 350Vac L-N

Protection modes: L-N, N-PE, L-PE

Imax 8/20us: 40kA L-N, 10kA L-E, 10kA N-E

Inom 8/20us: 20kA L-N, 5kA, L-E, N-E

Response time: <25ns

Topology: Stage 1. L1, L2, L3-N MOV, N-E GA, Stage 2. Low pass LC network, Stage 3. L-N MOV.

Location category: Indoor

Degree of protection: IP24

Mounting: Portable

Operating temperature: –10°C to 50°C

Dimensions: 152D x 133W x 55H (mm)

Weight: 0.8kg



Features:

  • Surge and EMI/RFI filter protection
  • 40kA Imax in L-N mode
  • 60kA all modes
  • 3 stage, 3 mode protection
  • LC filter network
  • Rugged IP24 enclosure
  • 10A IEC C13/14
