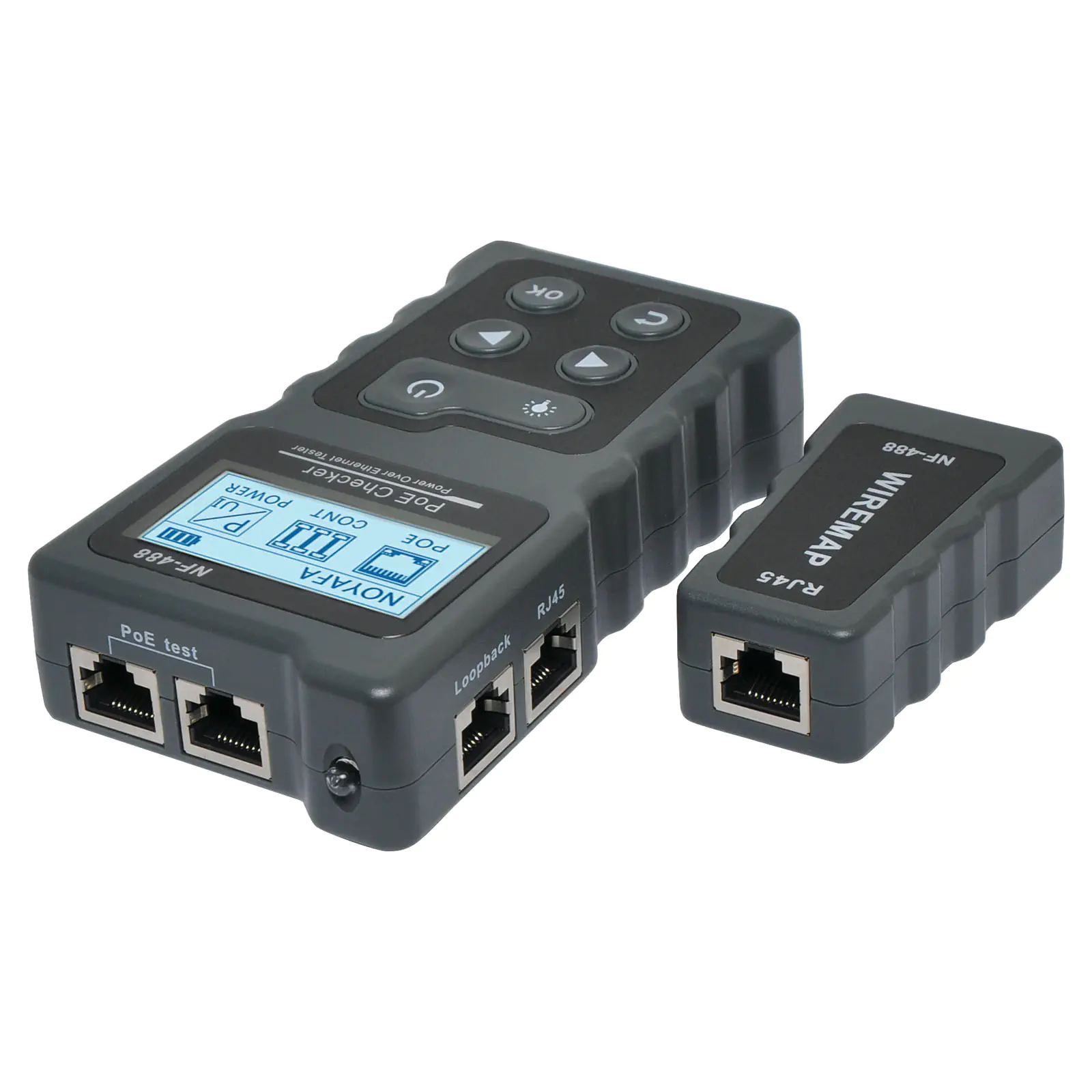

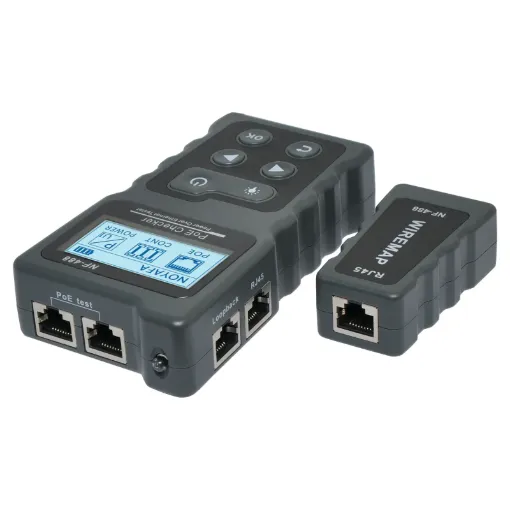

Power Over Ethernet (PoE) Tester

SKU: D3011
Allows you to test the conditions of 802.3af/at standard and non-standard PoE cabling and ports on PoE equipment. Tests for power supply voltage, polarity and crossover mode, plus displays power consumption of connected DC devices such as cameras or other PoE enabled IoT products.
$99.09

All Prices Shown are (ex GST)
Bulk Pricing
ea $99.09
2+ $90.00
4+ $80.91
i h

Overview

Allows you to test the conditions of 802.3af/at standard and non-standard PoE cabling and ports on PoE equipment. Tests for power supply voltage, polarity and crossover mode, plus displays power consumption of connected DC devices such as cameras or other PoE enabled IoT products. Checks for short circuit, crossover and open circuit status in network cables. It also allows loopback testing to the connected PoE switch for checking the integrity of cabling. Requires 3xAAA batteries.



In the Box:

1 x Emitter

1 x Remote Control

1 x Crocodile Clip Test Line

1 x Network Cable

1 x Carry bag

1 x User Manual

(Battery Not Included)





Specifications:



Tester Type

Cable Type: STP/UTP

Continuity Function: Yes

Maximum Testing Range: 600m

Wire Mapping: Emitter + Remote, Emitter + Switch/Router



POE Function

Test Range: DC 5-60V PoE Switch

Standard Identify: 802.3af/at (Standard/Non-standard)

Test Range Power: 0-18W

Voltage Test Range: DC 0-60V

Current Test Range: 0-3A

Power Test Range: 0-180W

Display: LCD Screen, with Backlight

Input Voltage Protection: DC 48V, 5mA

Maximum Working Current: ≤80mA

Loopback: Compatible with 10M/100M Switch

Power Supply: 3 x 1.5V AAA Battery (Not Included)



Remote

Ports: RJ45

Function: Wire Mapping for Network Cable

Input Voltage Protection: DC 48V, 5mA

Screen Size: 128mm x 64mm

Total Size: 140mm x 40mm x 20mm



Features:

  • Identify af / at Standard Automatically.
  • Quickly check power sourcing equipment (PSE) type, the IEEE802.3af or 802.3at standard.
  • Inline test info of standard/non-standard PoE devices, including power supply voltage, power supply polarity, crossover mode, and more.
  • Test the short circuit, crossover and open circuit status for STP, UTP lan cable.
  • Test the loop circuit condition connected to switch
  • LED light for finding your way behind racks.
