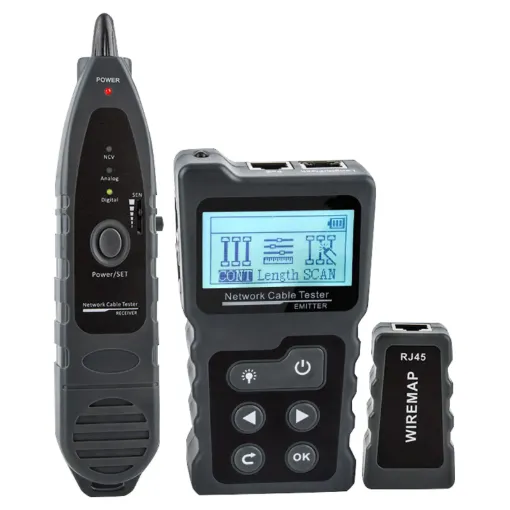

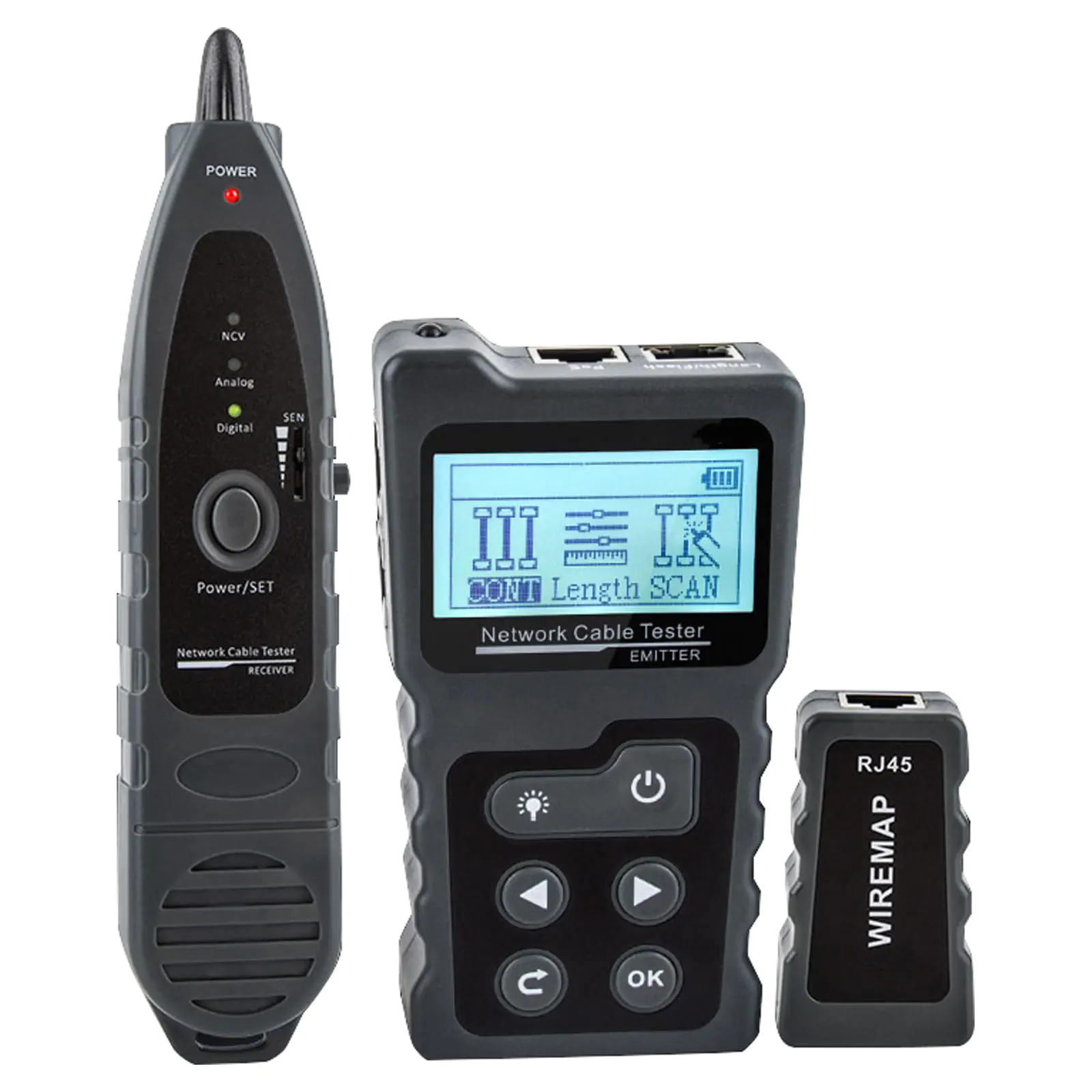

Power Over Ethernet (PoE) Tester & Cable Tracer

SKU: D3012
A complete PoE cabling tester with cable tracer receiver, cable length testing,
$171.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $171.82
2+ $153.64
4+ $135.45
i h

Overview

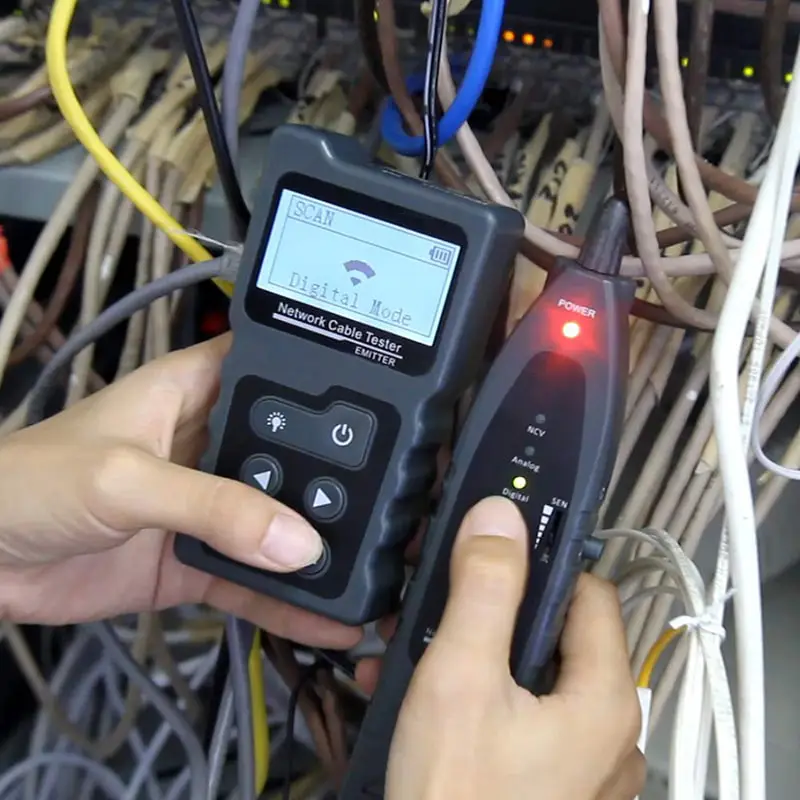

A complete PoE cabling tester with cable tracer receiver, cable length testing, PoE verification and fault testing.  Performs wire map testing for common wiring faults including open, short, cross, split, and reversed pairs  PoE cabling can be checked for correct pin out, voltage and current. It even includes non-contact AC voltage detection in the receiver probe. A must have for anyone installing PoE equipment. Requires 3 x AAA batteries and 1 x 9V battery.





Specifications:



Transmitter

Wiremap Cable tyoe: CAT5, CAT6 (STP & UTP)

Wiremap test with switch directly: Yes

Wiremap Max range: 600m

Test Range length: 2-200m

Accuracy length: ±1.6m

Breakage location: Yes

Max signal voltage scan: 8Vp-p

Frequency: 130KHz

AC filter: Yes

Test Range POE: DC 5-60V standard/non-standard PoE switch

Voltage Display PoE: Yes

PSE Type: IEEE 802.3af/at

LCD Display: 128*64 Dot-matrix with backlight

Power supply: 3 x AAA Batteries (not included)

Low battery warning: 2.7V

Auto-off time: 15min, 30min, 60min, OFF

Voltage protection: DC 48V 5mA

Max working current: <150mA

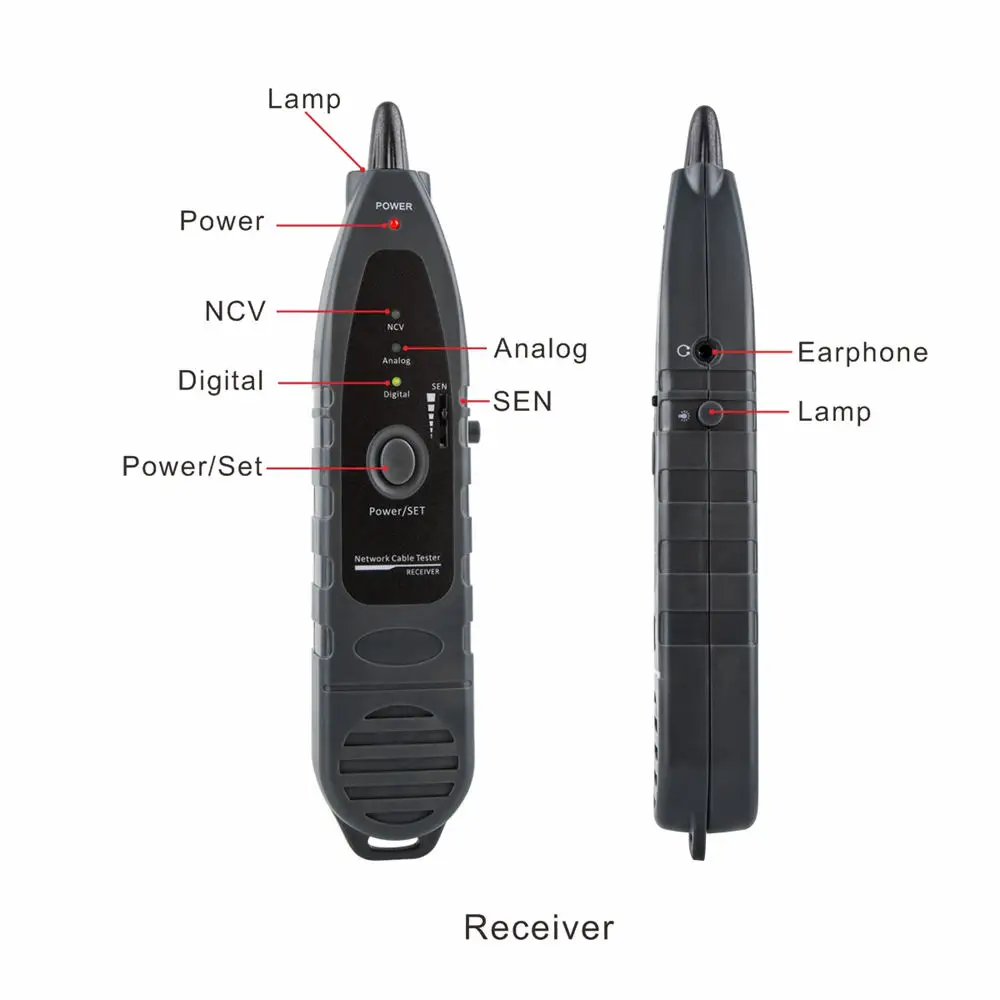

Receiver

Sensitivity adjustable: Yes

AC Voltage detecting: Yes

Lamp: Yes

Battery type: 9V x 1 (not included)

Low battary warning: 6± 0.5V

Max working current: <100mA



Remote

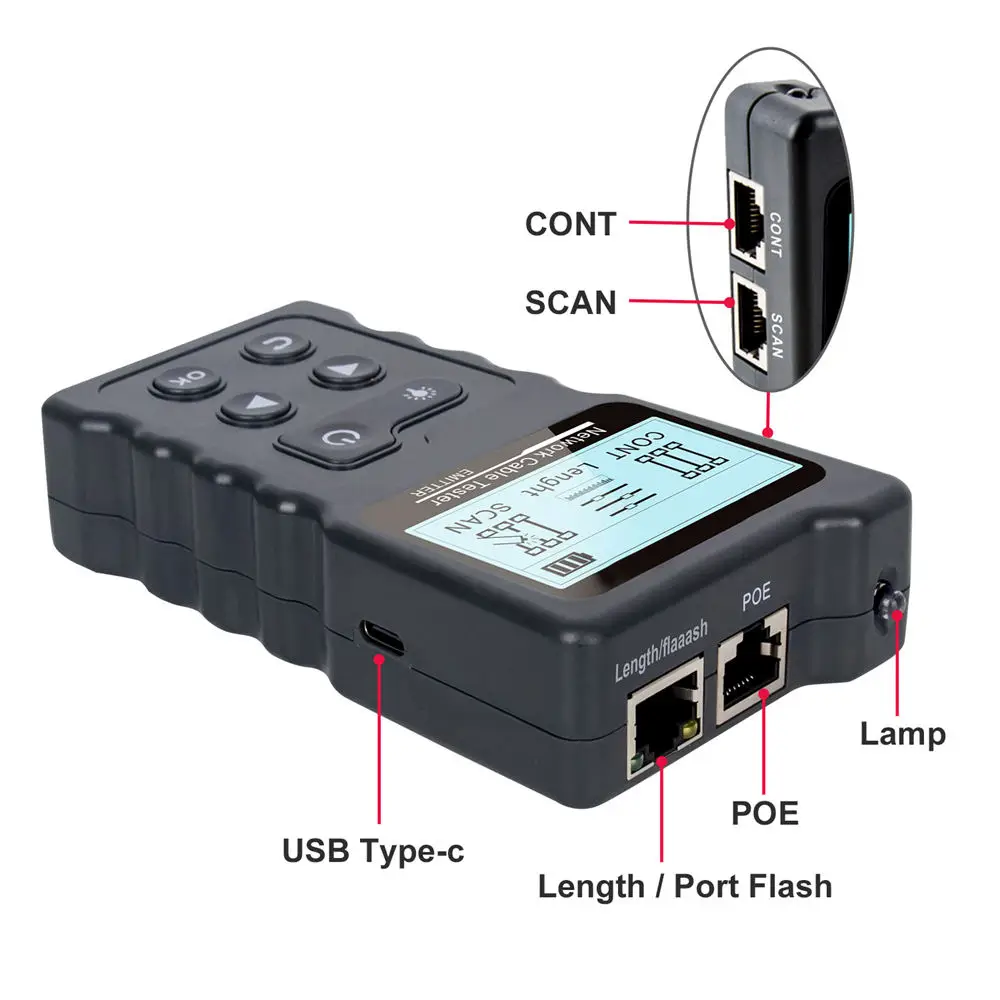

Wiremap Port: RJ45

Voltage protection: DC48V 5mA



Features:

  • Continuity test for short circuit and open condition - shows pin configuration
  • Cable length measurement up to 200m (±1.6m)
  • Digital, analog and PoE testing modes
  • 802.3af/at PoE port testing with pin detection

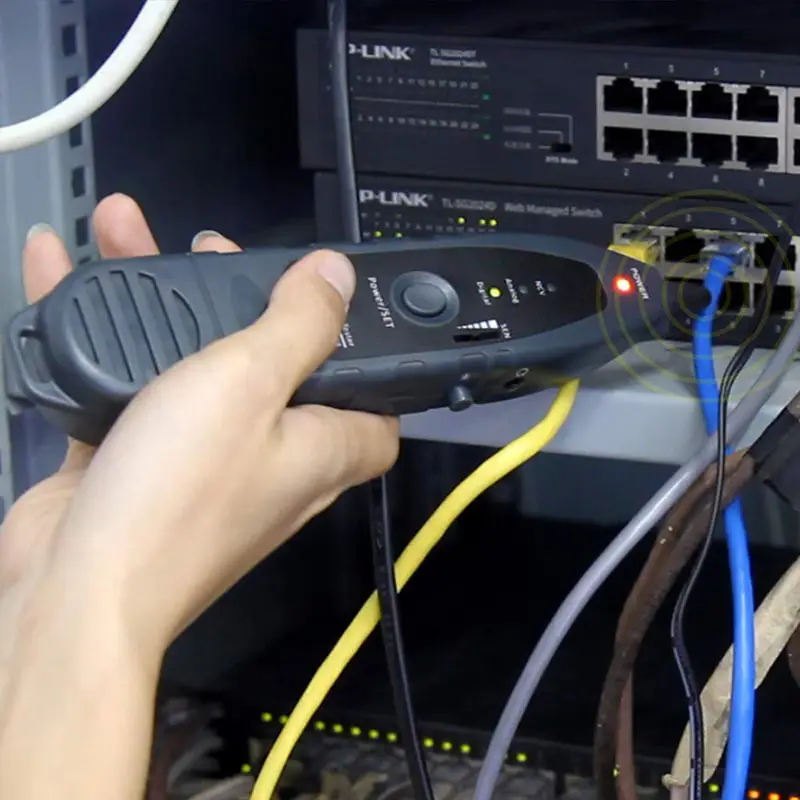

  • Port flash and switch detail display
  • Easy to read backlit graphical screen
  • Non-contact AC voltage detection on receiver probe




D3012
D3012
D3012
D3012
