Combination DMM & LAN Cable Tester

by: Micron
SKU: D3020
This is the perfect "all-in-one" solution for network installers and IT technicians.
$108.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $108.18
2+ $99.09
4+ $90.00
i h

Overview

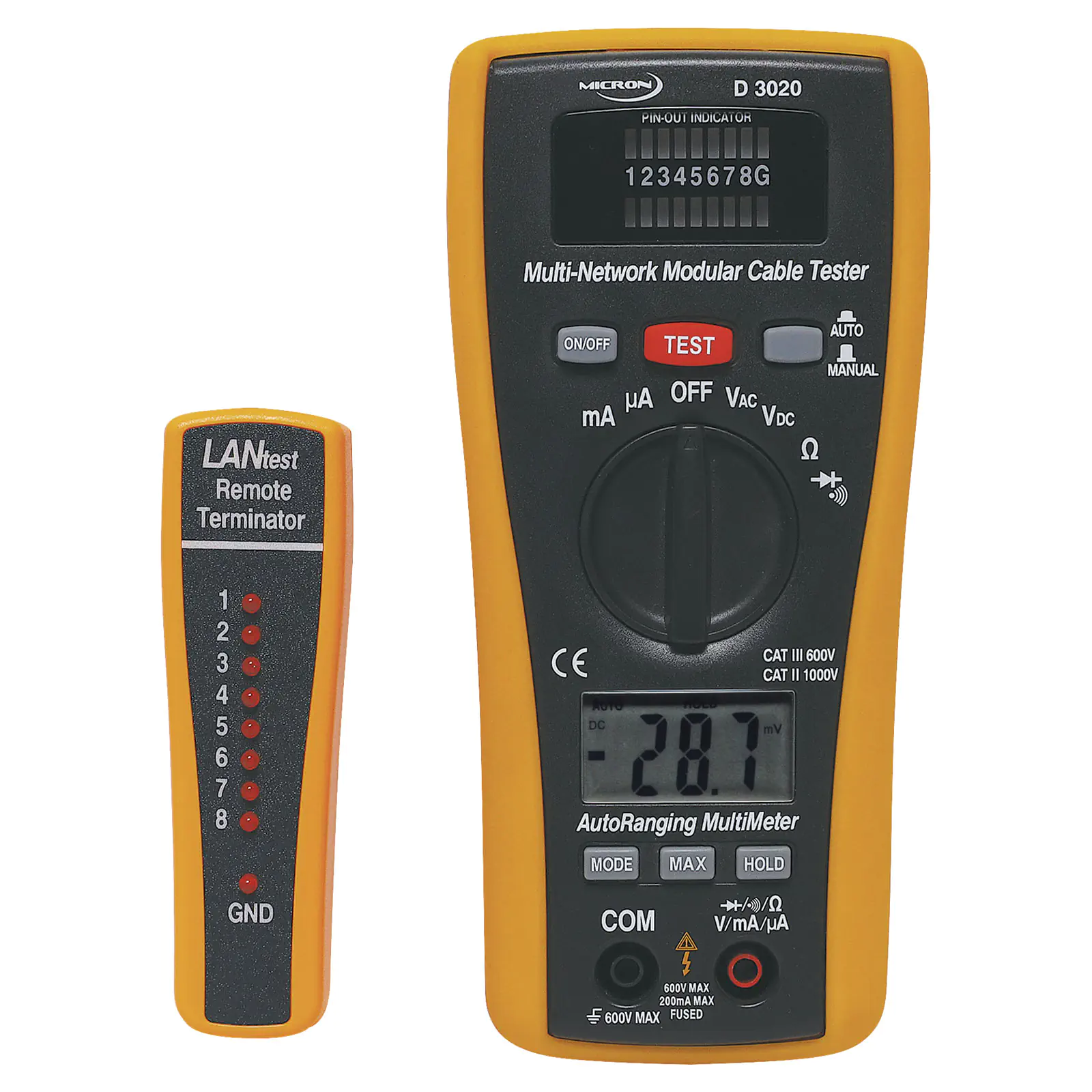

Includes all the features of a standard digital multimeter with the addition of a LAN tester. This is the perfect ‘all-in-one’ solution for network installers & IT technicians. The multimeter is an auto ranging design measuring current, voltage & resistance. Includes a max reading recall function, plus data hold. The LAN tester features dual RJ45 sockets on top for quick testing of ethernet patch leads. A remote terminator permits testing of installed cables in buildings & patch panels. The LAN tester quickly confirms the integrity of each conductor by way of the LED indicators. Suitable for both RJ45/RJ11 & BNC coaxial cabling (adaptor leads included). Supplied with rubber holster, carry case, network adaptors and high quality silicon rubber test probes.

Please Note: Batteries included.





Specifications:



DC voltage: 200mV, 2V, 20V, 200V, 600V

AC voltage:2V, 20V, 200V, 600V

DC current: 200µA, 2000µA, 20mA, 200mA

AC current: 200µA, 2000µA, 20mA, 200mA

Resistance: 200, 2k, 20k, 200k, 2M, 20M Ohm

Continuity: < 150 Ohm, Audible tone

Diode test: 1mA max

Display: 3.5 digit LCD, 2000 count, backlit

Dimensions: ˜ 75W x 44D x 162H mm (excluding remote terminator)



Features:

  • Auto-ranging multimeter
  • Will test 10Base-T, 10Base-2, RJ45/11, 258A, TIA 568A/568B and Token Ring
  • Includes RJ & BNC network lead adaptors
  • Auto power off
  • Supplied with test probe leads & carry case
  • Battery included
  • Cat II 1000V & Cat III 600V
