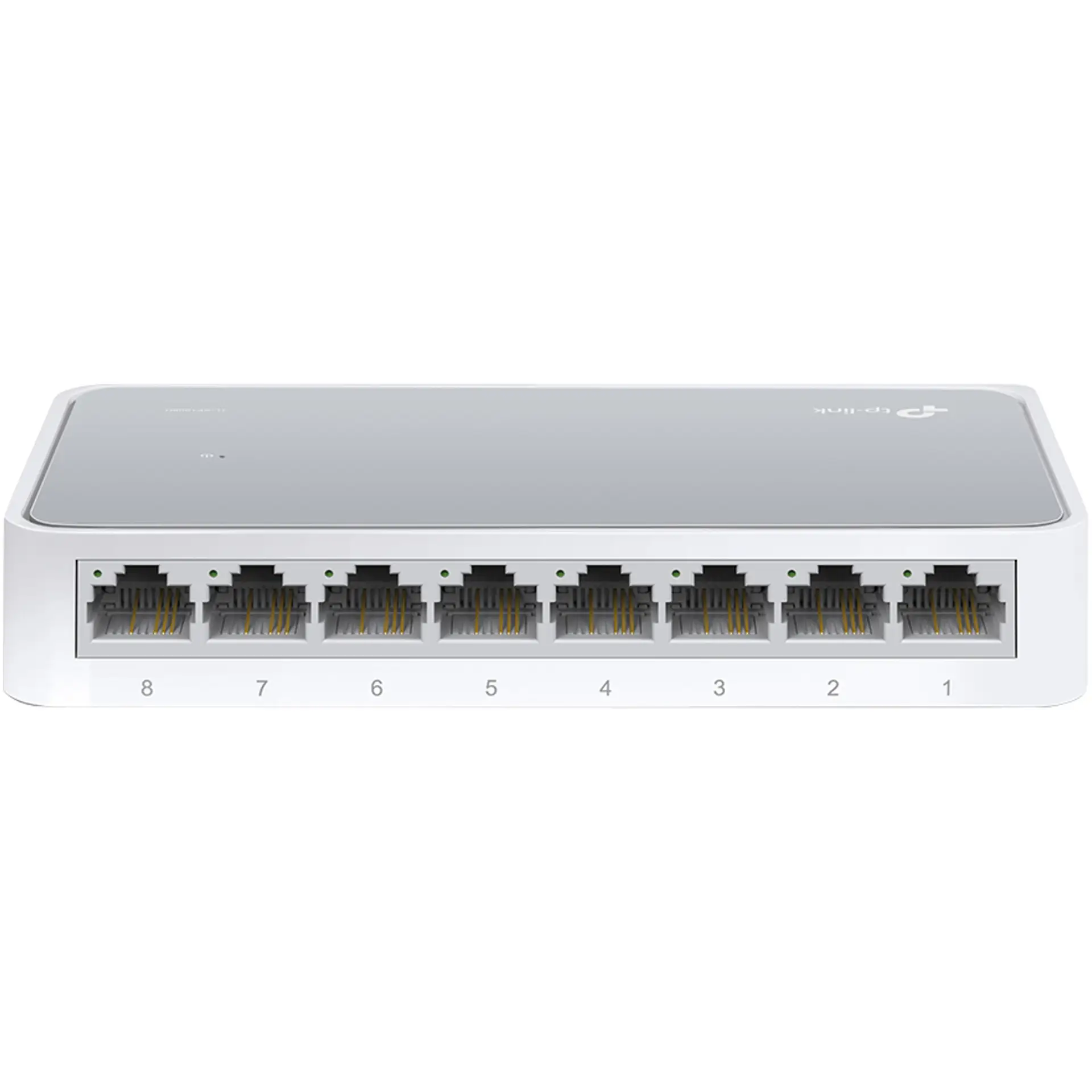

TL-SF1008D 8 Port 10/100M Ethernet Switch

by: TP-Link
SKU: D4185
TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.
$23.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $23.64
i h

Overview

TL-SF1008D 8-port 10/100Mbps Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch, using straight cable or crossover cable.

The TP-LINK TL-SF1008D 8-port 10/100M Fast Ethernet Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network. It will boost your network performance up to full duplex data transfer. Its wire-speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them.





Specifications:



Standards: IEEE802.3, IEEE802.3u

Ports: 10/100Mbps Auto-Negotiation ports

Cable Type: cat. 5, cat. 5e Ethernet Cable for 100Mbps, Cat. 3, 4, 5 for 10Mbps

Data Transfer Rate: Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex) Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)

LED Indicators: Power, Link/Act

Transfer Method: Store-and-Forward

MAC Address Learning: Automatically learning, automatically Update

Frame Filtering and Forward Rate: 10Mbps: 14880pps, 100Mbps: 148800pps

Power Supply Output: 9V~ 50-60Hz, 0.8A

Dimensions (W×D×H): 140 × 85 × 30mm



Features:

  • Complies with IEEE802.3, IEEE802.3u standards
  • 8 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Supports IEEE802.3x flow control for Full Duplex mode and backpressure for half-duplex mode
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • Plastic case, desktop or wall-mounting design
  • External Power Adapter supply

Details

Products specifications

Warranty 3 Years
Tech & Data
Type Wired Ethernet
