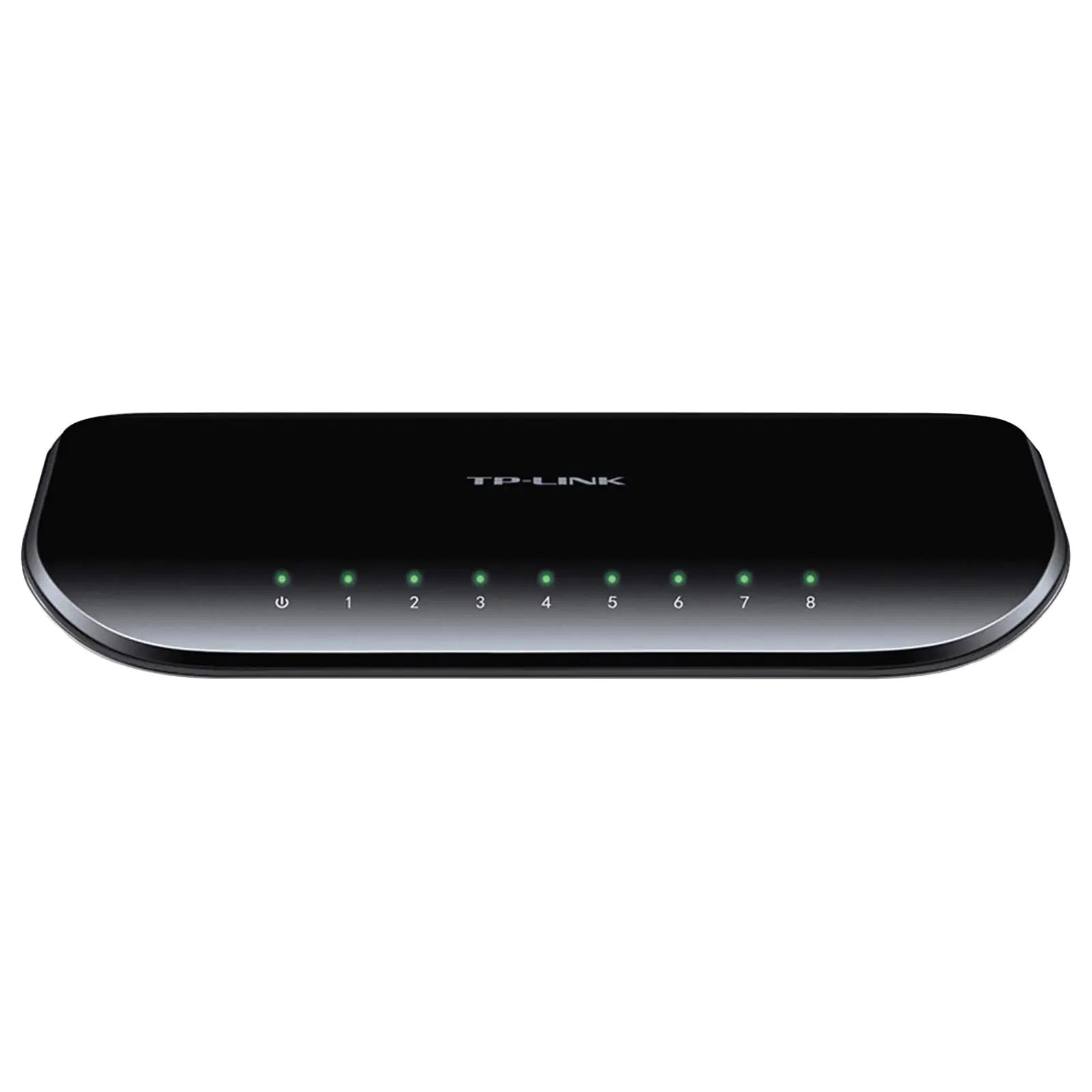

TL-SG1008D 8 Port 10/100/1000M Ethernet Switch

by: TP-Link
SKU: D4192
This high speed TP-Link 10/100/1000Mbps ethernet switch will allows up to 8 computers to be connected together. Further computers may be added by daisy-chaining more switches together. Plugpack included.
$46.82

All Prices Shown are (ex GST)
Bulk Pricing
ea $46.82
i h

Overview

This high speed TP-Link 10/100/1000Mbps ethernet switch will allows up to 8 computers to be connected together. Further computers may be added by daisy-chaining more switches together. Plugpack included.

Features:

  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • Supports MAC address auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • Plastic case, desktop or wall-mounting design
  • External power adapter supply



Specifications:



Standards and Protocols:

IEEE802.3, 802.3u, 802.3ab, 802.3x

CSMA/CD, TCP/IP



Basic Functions:

Wire-speed Performance

MAC Address Auto-Learning and Auto-aging

IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth: 16Gbps

MAC Address Table: 4k



Forwarding Rate:

- 10BASE-T: 14880pps/port

- 100BASE-TX: 148800pps/port

- 1000BASE-T: 1488000pps/port

Transmission Method: Store-and-Forward

Ports: 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)



Network Media:

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators: Power, 10/100M, 1000M

Safety & Emission: FCC, CE

Dimensions (W x D x H): 7.9 x 5.5 x 1.1 in. (200 x 140 x 28 mm)



Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Power: External Power Adapter

Details

Products specifications

Warranty 3 Years
Tech & Data
Type Wired Ethernet
