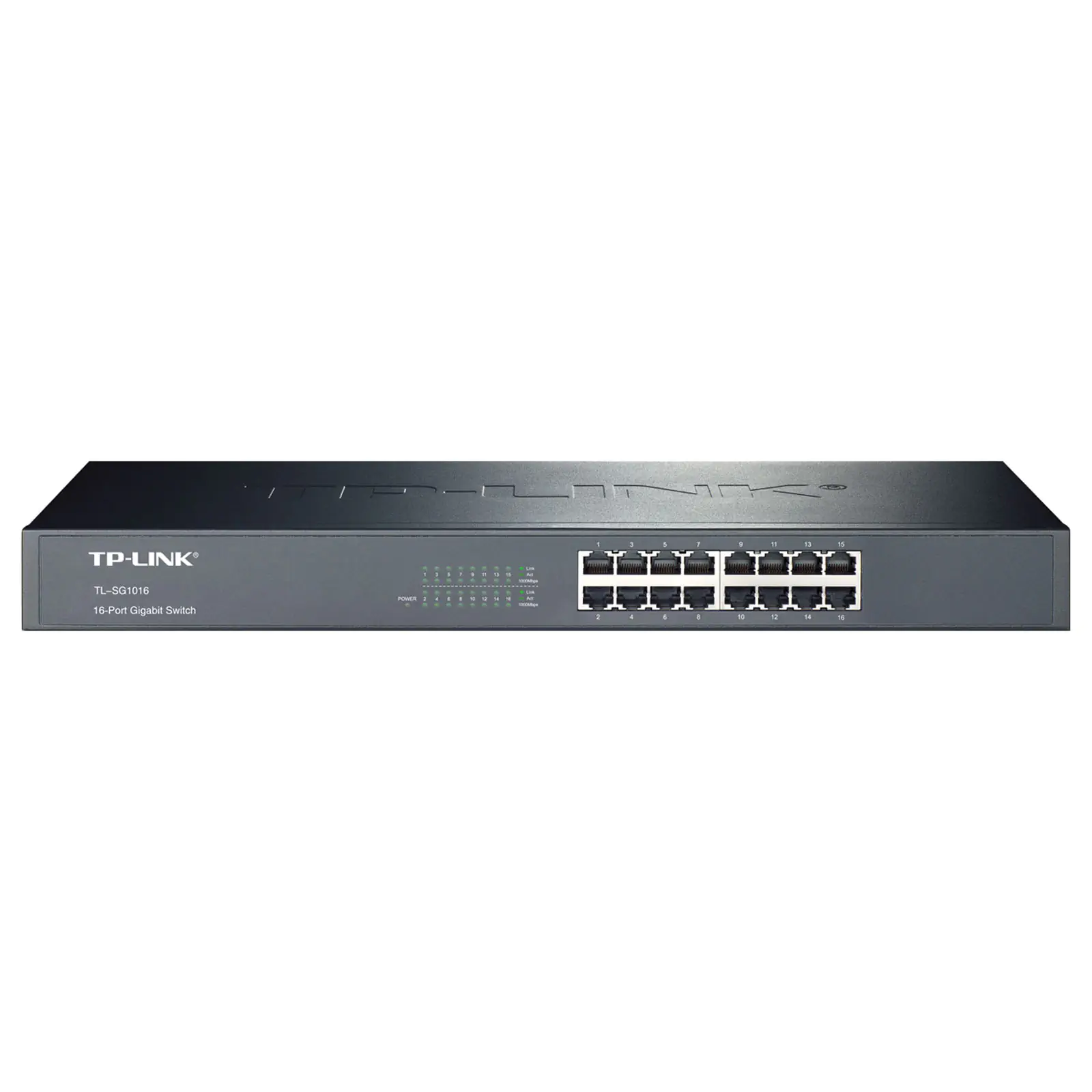

TL-SG1016 16 Port 10/100/1000M Ethernet Switch

by: TP-Link
SKU: D4195
This high speed TP-Link 10/100/1000Mbps ethernet switch will allows up to 16 computers to be connected together. Further computers may be added by daisy-chaining more switches together. Plugpack included. Rack mountable.
$156.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $156.36
i h

Overview

This high speed TP-Link 10/100/1000Mbps ethernet switch will allows up to 16 computers to be connected together. Further computers may be added by daisy-chaining more switches together. Plugpack included.
Rack mountable.







Specifications:



Standards and Protocols:

IEEE802.3, 802.3u, 802.3ab, 802.3x

CSMA/CD, TCP/IP

Basic Function:

Wire-speed Performance

MAC Address Auto-Learning and Auto-aging

IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth: 32Gbps

MAC Address Table: 8k



Forwarding Rate:

10BASE-T: 14880pps/port

100BASE-TX: 148800pps/port

1000BASE-T: 1488000pps/port

Transmission Method: Store-and-Forward

Ports: 16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)



Network Media:

10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

100Base-Tx: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ù STP (maximum 100m)

1000Base-T: UTP category 5, 5e cable (maximum 100m)



LED Indicators: Power, Link/Act

Safety & Emission: FCC, CE

Dimensions (W x D x H): 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)



Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Power: 100-240VAC, 50/60Hz



Features:

  • All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
  • Supports Auto-MDI/MDIX function
  • Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
  • Store and forward Switching scheme
