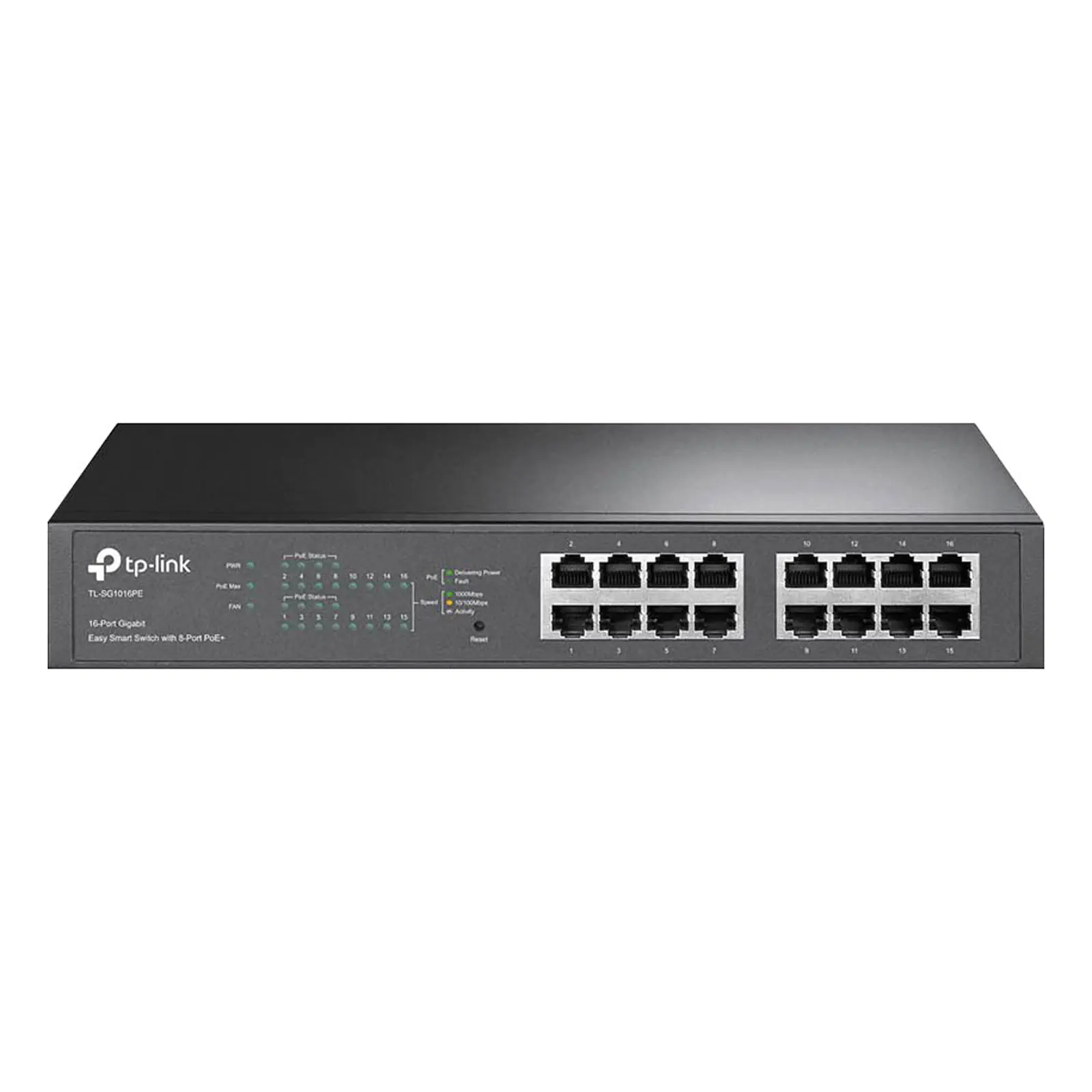

TL-SG1016PE 16 Port Gigabit PoE Switch

by: TP-Link
SKU: D4206
16-Port Gigabit Desktop Switch with 8-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
$225.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $225.45
i h

Overview

16-Port Gigabit Desktop Switch with 8-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

8 of the 16 Auto-Negotiation RJ45 ports (port-1 to port-8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs or IP Phones, etc.

D 4206 is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the D 4206 16-Port Gigabit Desktop Switch with 8-Port PoE is a great selection for expanding your home or office network.



Package Contents:

1 x TL-SG1016PE

1 x Power Cord

1 x Installation Guide

1 x Resource CD

1 x Rackmount Kit

1 x Rubber Feet





Specifications:



Hardware Specifications



Standards and Protocols:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p



Interface:

16 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX



Network Media:

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

 EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: 1

Power Supply: 100-240VAC, 50/60Hz

Power Consumption: Maximum: 124.4W (220V/50Hz)

PoE Ports (RJ45): Standard: 802.3 at compliant

PoE Ports: Port 1- Port 8

PoE Power Budget: 110W

Dimensions: 294W x 180D x 44H mm



PERFORMANCE:

Switching Capacity: 32Gbps

Packet Forwarding Rate: 23.8Mbps

MAC Address Table: 8K

Packet Buffer Memory: 4.1Mbit

Jumbo Frame: 9KB



Software Specifications:



Quality of Service:

Support Port-Based/802.1p/DSCP priority

Support 4 priority queues

Rate Limit

Storm Control



L2 Features:

IGMP Snooping V1/V2/V3

Link Aggregation

Port Mirroring

Cable Diagnostics

Loop Prevention



VLAN:

Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)

MTU/Port/Tag VLAN



Management:

Web-based GUI

Easy Smart Configuration Utility

Transmission Method: Store-And-Forward



General:

Certification: FCC, CE, RoHS

System Requirements: Microsoft® Windows® for running Utility



Environment:

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing



Features:

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 110W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 8K entry MAC address table of the TL-SG1016PE with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity and speed
