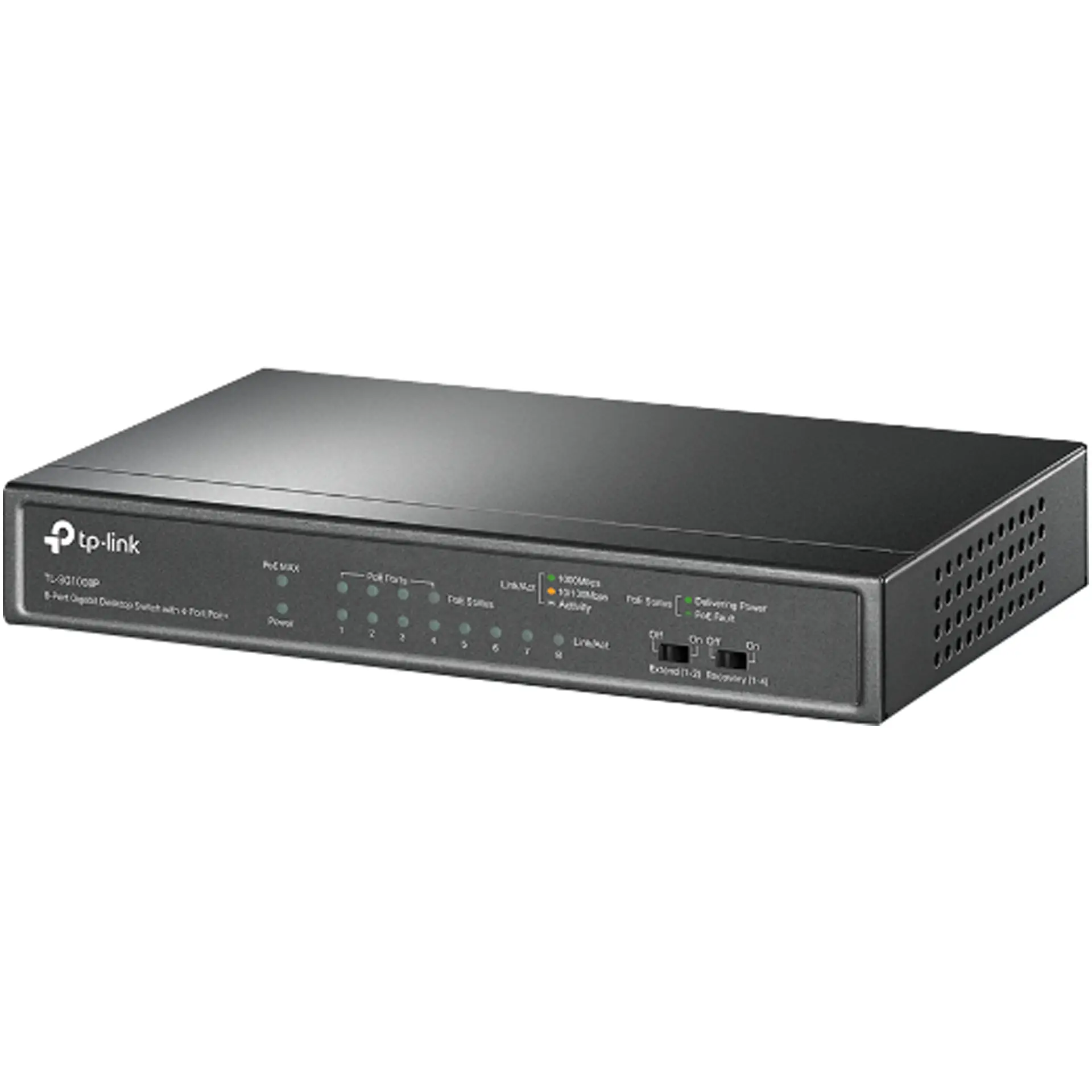

TP-LINK 8-Port Gigabit Desktop Switch with 4-Port PoE

by: TP-Link
SKU: D4212
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities. 4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function.
$120.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $120.45
i h

Overview

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs or IP Phones, etc.
D 4212 is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the D 4212 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.
Package Contents
8-Port Gigabit Desktop Switch
Power Adapter
Installation Guide



Features:

  • 8 10/100/1000Mbps RJ45 ports
  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Requires no configuration and installation
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 64W for all PoE ports



Specifications:

Hardware
Interface: 8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX
Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m), 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity: Fanless
Physical Security Lock: Yes
External Power Supply: External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate: 11.904 Mpps
PoE Ports (RJ45): Standard: 802.3 af/at compliant, PoE Ports: Ports 1–4, Power Supply: 64 W
Mac Address Table: 4K
Jumbo Frame: 16 KB
Switching Capacity: 16 Gbps
Dimensions: 171W × 98D×27H mm
Max. Power Consumption: 5.39 W (220/50 Hz no PD connected), 75 W (220/50 Hz with 64 W PD connected)
Max. Heat Dissipation: 18.38 BTU/h (no PD connected), 225.75 BTU/h (with 64 W PD connected)

Software
Advanced Features: Compatible With IEEE 802.3af/at Compliant PDs, IGMP Snooping, Mac Address Auto-Learning And Auto-Aging,  IEEE802.3x Flow Control, 802.1p/DSCP QoS
Transmission Method: Store-And-Forward

Environment
Operating Temperature: 0–40 ℃
Storage Temperature: -40–70 ℃
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Details

Products specifications

Warranty 5 Years
Tech & Data
Type Power Over Ethernet
