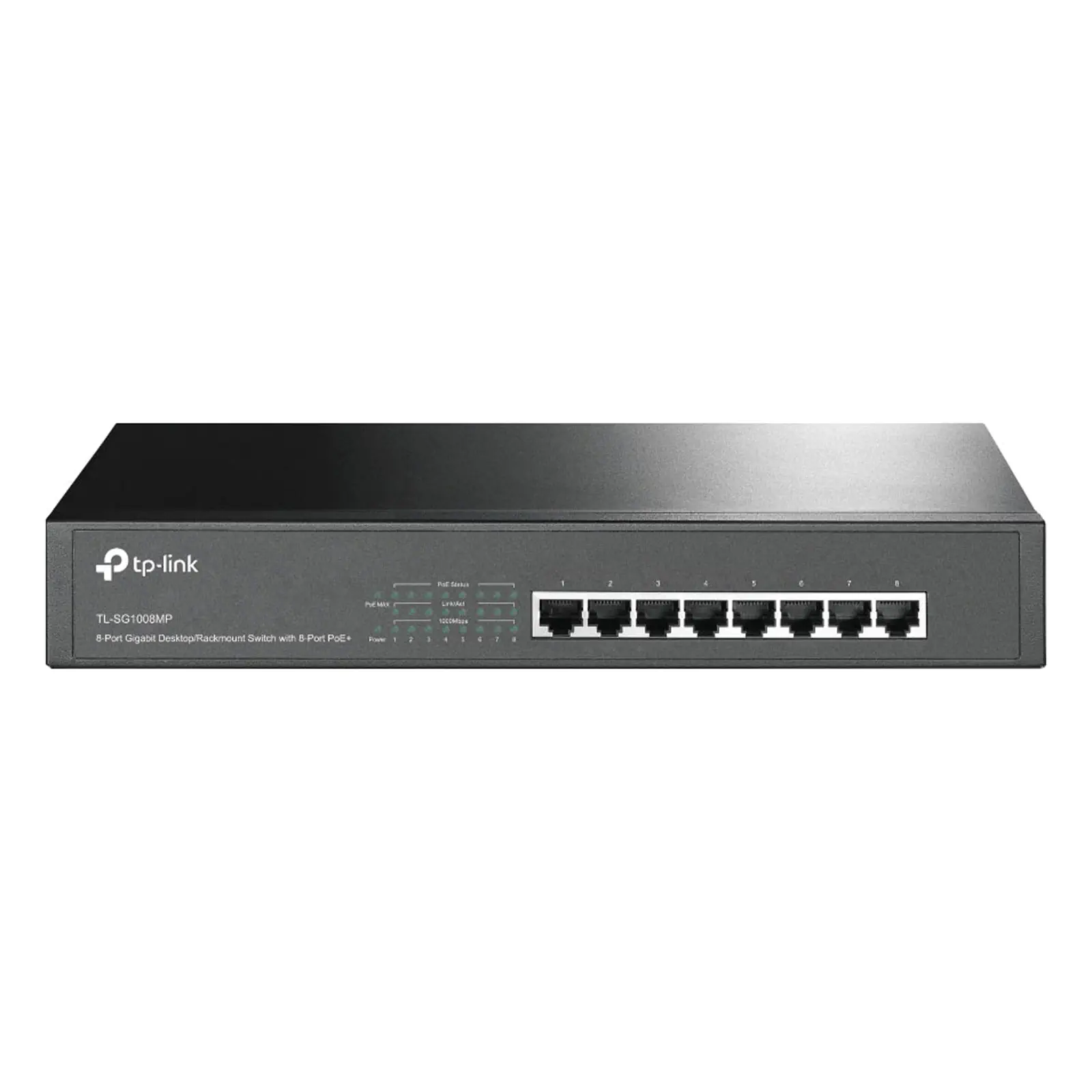

TL-SG1008MP 8-Port PoE+ Gigabit Desktop/Rackmount Switch

by: TP-Link
SKU: D4213A
8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.
$200.00

All Prices Shown are (ex GST)
Bulk Pricing
ea $200.00
i h

Overview

This 8-Port Gigabit Desktop/Rack mountable Switch has all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port. It can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, it can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.

Box Contents:

TL-SG1008MP

Power Cord

Installation Guide

Rackmount Kit

Rubber Feet



Specifications:



HARDWARE FEATURES:



Interface: 8 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity: 1

Power Supply: 100-240VAC, 50/60Hz

PoE+ Ports(RJ45): Standard: 802.3at/af (30W)

PoE+ Ports: 8 Ports

Total PoE Budget: 126W

Backbound Bandwidth: 16Gbps

Mac Address Table: 4K

Buffer Size: 1.5Mbits

Dimensions ( W x D x H ): 294 × 180 × 44 mm

Mounting : 13" and 19" 1U rack mountable

Max Power Consumption: 9.9W(no PD load)

144.4W(with 124W PD load)

Max Heat Dissipation: 33.7BTU/h(no PD load)

492.6BTU/h(with 124W PD load)



SOFTWARE FEATURES:



Advanced Features: Compatible With IEEE 802.3af/at Compliant power devices (PD)

Port Priority Function

MAC Address Auto-Learning And Auto-Aging

IEEE802.3x Flow Control

Transfer Method: Store-And-Forward



OTHERS:



Consumption: 9.5 watts (max. no PD connected)

140.1 watts (max. with 126w PD connected)

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing



Features:

  • 8 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
  • Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
  • Innovative energy-efficient technology reduces power consumption
  • Rack mountable with included rack mount bracket
  • Total PoE power budget up to 126W
  • Plug and play design, no configuration required

Details

Products specifications

Warranty 3 Years
Tech & Data
Type Power Over Ethernet
