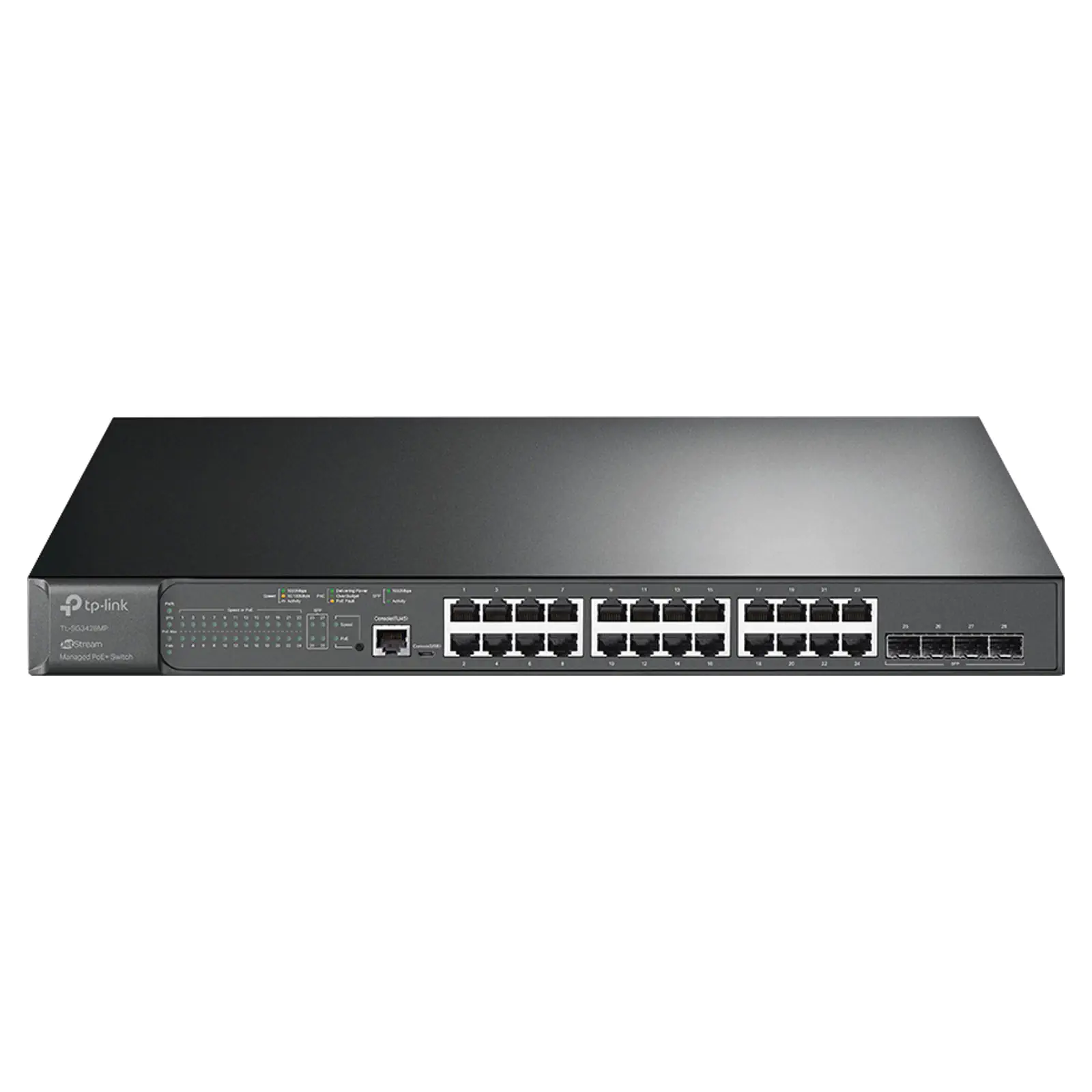

TL-SG3428MP JetStream 28-Port Gigabit Managed Switch with 24-Port PoE+

by: TP-Link
SKU: D4215
This JetStream 28-Port Gigabit managed switch has 24 ports supporting 802.3at/af-compliant PoE+.  Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
$768.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $768.18
i h

Overview

This JetStream 28-Port Gigabit managed switch has 24 ports supporting 802.3at/af-compliant PoE+.  Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses. Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralised cloud management. Omada creates a highly scalable network— all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Dimensions: 440W × 330D × 44Hmm.

Package Contents:

1 x TL-SG3428MP Switch

1 x Power Cord

1 x Quick Installation Guide

1 x Rack Mount Kit

1 x Rubber Feet

Features:

  • 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralised Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimise Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Specifications

Hardware Features

Interface:

24× 10/100/1000Mbps RJ45 Ports

4× Gigabit SFP Slots

1× RJ45 Console Port

1× Micro-USB Console Port

Fan Quantity: 2

Power Supply: 100-240 V AC~50/60 Hz



PoE+ Ports(RJ45):

Standard: 802.3at/af compliant

PoE+ Ports: 24 Ports, up to 30 W per port

Power Budget: 384 W

Dimensions ( W x D x H ): 440 × 330 × 44 mm

Mounting: Rack Mountable



Max Power Consumption:

31.0 W (110 V/60 Hz) (no PD connected)

463.8 W (110 V/60 Hz) (with 384 W PD connected)



Max Heat Dissipation:

105.78 BTU/h (110 V/60 Hz) (no PD connected)

1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)



Performance

Switching Capacity: 56Gbps

Packet Forwarding Rate: 41.66Mpps

MAC Address Table: 8K

Jumbo Frame: 9KB



Software Features

Quality of Service:

8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

SP (Strict Priority)

WRR (Weighted Round Robin)

SP+WRR

Bandwidth Control

Port/Flow based Rating Limiting

Smoother Performance

Action for Flows

Mirror (to supported interface)

Redirect (to supported interface)

Rate Limit

QoS Remark



L2 and L2+ Features:

Link Aggregation

Static link aggregation

802.3ad LACP

Up to 8 aggregation groups and up to 8 ports per group

Spanning Tree Protocol

802.1d STP

802.1w RSTP

802.1s MSTP

STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect

Loopback Detection

Port-based

VLAN based

Flow Control

802.3x Flow Control

HOL Blocking Prevention

Mirroring

Port Mirroring

CPU Mirroring

One-to-One

Many-to-One

Tx/Rx/Both



L2 Multicast:

Supports 511 (IPv4, IPv6) IGMP groups

IGMP Snooping

IGMP v1/v2/v3 Snooping

Fast Leave

IGMP Snooping Querier

IGMP Authentication

IGMP Authentication

MVR

MLD Snooping

MLD v1/v2 Snooping

Fast Leave

MLD Snooping Querier

Static Group Config

Limited IP Multicast

Multicast Filtering: 256 profiles and 16 entries per profile



VLAN:

VLAN Group

Max 4K VLAN Groups

802.1Q Tagged VLAN

MAC VLAN: 12 Entries (30 Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)

Protocol VLAN: Protocol Template 16, Protocol



VLAN 16

Private VLAN

GVRP

VLAN VPN (QinQ)

Port-Based QinQ

Selective QinQ

Voice VLAN



Access Control List:

Time-based ACL

MAC ACL

Source MAC

Destination MAC

VLAN ID

User Priority

Ether Type

IP ACL

Source IP

Destination IP

Fragment

IP Protocol

TCP Flag

TCP/UDP Port

DSCP/IP TOS

User Priority

Combined ACL

Packet Content ACL

IPv6 ACL

Policy

Mirroring

Redirect

Rate Limit

QoS Remark

ACL apply to Port/VLAN



Security:

IP-MAC-Port Binding

DHCP Snooping

ARP Inspection

IPv4 Source Guard

IPv6-MAC-Port Binding

DHCPv6 Snooping

ND Detection

IPv6 Source Guard

DoS Defend

Static/Dynamic Port Security

Up to 64 MAC addresses per port

Broadcast/Multicast/Unicast Storm Control

kbps/ratio/pps control mode

IP/Port/MAC based access control

802.1X

Port based authentication

Mac based authentication

VLAN Assignment

MAB

Guest VLAN

Support Radius authentication and accountability

AAA (including TACACS+)

Port Isolation

Secure web management through HTTPS with SSLv3/TLS 1.2

Secure Command Line Interface (CLI) management with SSHv1/SSHv2



IPv6:

IPv6 Dual IPv4/IPv6

Multicast Listener Discovery (MLD) Snooping

IPv6 ACL

IPv6 Interface

Static IPv6 Routing

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 applications

DHCPv6 Client

Ping6

Tracert6

Telnet (v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http/Https

IPv6 TFTP



L3 Features:

16 IPv4/IPv6 Interfaces

Static Routing

48 static routes



Static ARP

128 static entries

316 ARP Entries (512 ARP Entries for TL-SG3428 V2.0 & TL-SG3428MP V2.0)

Proxy ARP

Gratuitous ARP

DHCP Server

DHCP Relay

DHCP interface relay

DHCP VLAN relay

DHCP L2 Relay



Management:

Web-based GUI

Command Line Interface (CLI) through console port, telnet

SNMPv1/v2c/v3

Trap/Inform

RMON (1, 2, 3, 9 groups)

SDM Template

DHCP/BOOTP Client

802.1ab LLDP/LLDP-MED

DHCP AutoInstall

Dual Image, Dual Configuration

CPU Monitoring

Cable Diagnostics

EEE

Password Recovery

SNTP

System Log



Advanced Features:

Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller

Automatic Device Discovery

Batch Configuration

Batch Firmware Upgrading

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

ZTP (Zero-Touch Provisioning)



Environment:

Operating Temperature: 0–45℃

Storage Temperature: -40–70℃

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing
