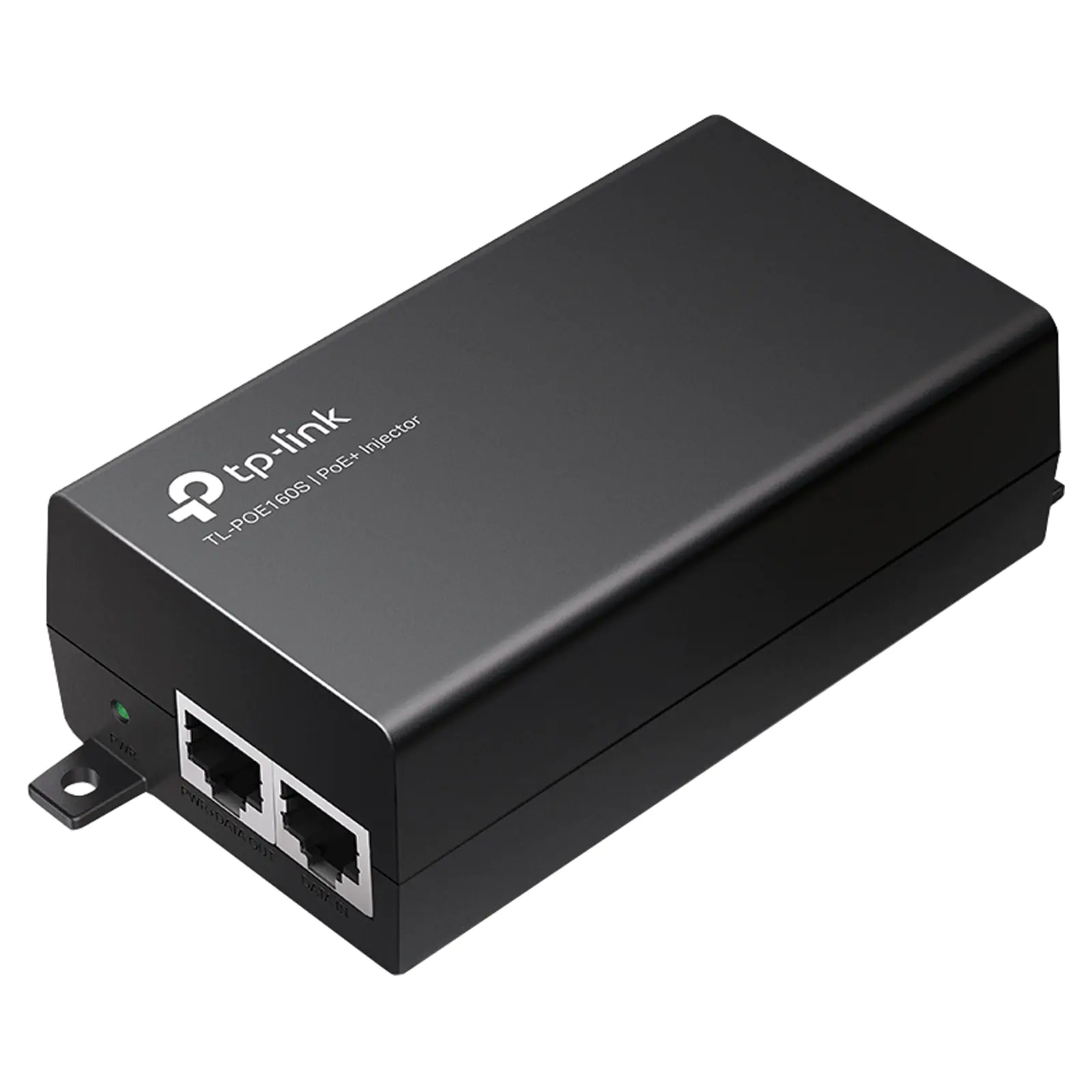

TL-POE160S PoE+ Injector

by: TP-Link
SKU: D4228
Expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
$39.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $39.55
i h

Overview

This PoE+ Injector fully complies with IEEE 802.3af/at standards and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc. Dimensions: 125W x 59.4D x 36.8Hmm



Specifications:



Network

Standards and Protocols: IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at



General

Certification: FCC, CE, RoHS

Environment Operating Temperature: 0°C to 40°C

Storage Temperature: -40°C to 70°C

Operating Humidity: 10% to 90%RH non-condensing

Storage Humidity: 5% to 90%RH non-condensing



Hardware Features

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

Ports: 1 10/100/1000Mbps RJ45 data-in port, 1 10/100/1000Mbps RJ45 power+data-out port and 1 AC socket

Power Consumption: Input: 100-240 V, 50/60 Hz, Output: Auto-determine the necessary power requirements (max. 30 W)

Basic Function: Auto-Sensing Algorithm enables providing power with 802.3af/at PD, Auto-determine the necessary power requirements, Wall-mounting and desktop installation supported, Plug-and-Play

LED Indicator: ON: Supplying power normally, OFF: No power supply



Features:

  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at standards, supplies up to 30 W
  • Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
  • Automatically determines and supplies the exact power to meet the device's need
  • Wall-mounting and desktop design accommodates most installation scenarios
  • Plug & Play installation requires no configuration
  • Integrated power supply
  • Delivers power and data through a single Ethernet cable for simple network extension
  • Transmits power & data over an Ethernet cable up to 100m(328 feet) away
  • Plug and play design provides a hassle free setup
  • 12/9/5VDC triple output adapts to different Ethernet-enable devices

Details

Products specifications

Warranty 3 Years
Tech & Data
Type Power Over Ethernet
