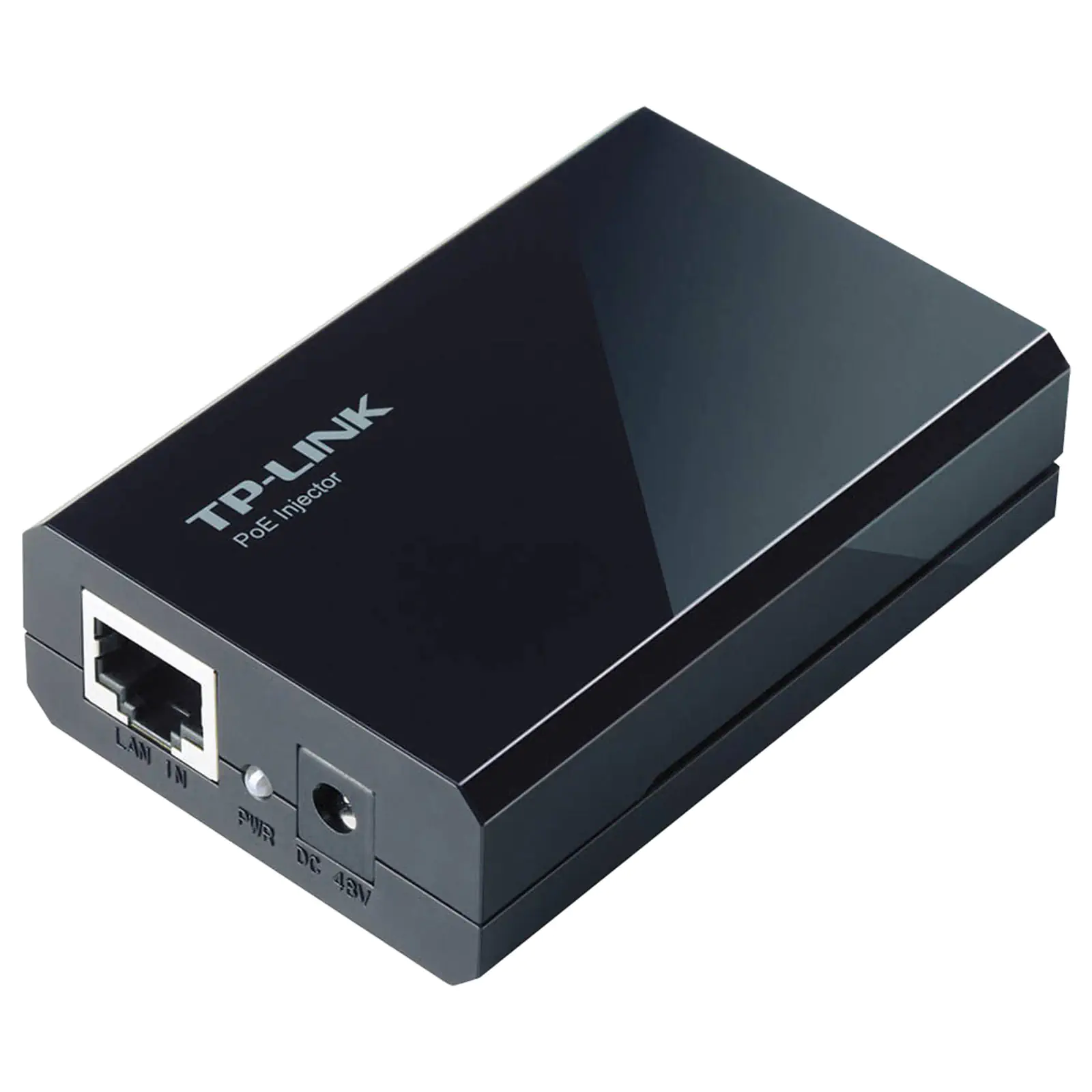

TL-POE150S Power Over Ethernet (PoE) Single Port Injector

by: TP-Link
SKU: D4229
The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters or other equivalent products, to extend your network to where there are no power line or outlets, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
$31.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $31.77
i h

Overview

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters or other equivalent products, to extend your network to where there are no power line or outlets, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

 *TP-LINKs TL-POE150S uses widely adopted PoE technology in the industry and provides more cost-effective PoE solution. It is highly recommended not to pair the PoE products with other PoE adapters unless under professional guidance.



Specifications:

Hardware Features:

Interface:

2 10/100/1000Mbps RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

1 48VDC POWER INPUT PORT



Network Media:

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

Dimensions (W X D X H): 3.2*2.1*0.9 in.(80.8*54*24 mm):

LED Indicator: PWR

Power Supply: 15.4W (Max. 48VDC)



Software Features:

Basic Function:

Compatible With IEEE 802.3af Compliant PDs

Delivers Power Up To 100 Meters

Auto-Determine The Necessary Power Requirements



Others:

Certification: FCC, CE, RoHS

System Requirements:

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing



Features:

  • IEEE 802.3af compliant
  • Delivers power up to 100 meters
  • Auto-determine the necessary power requirements
  • Gigabit speed support
  • Plug-and-Play, requires no configuration
  • External power adapter supply
