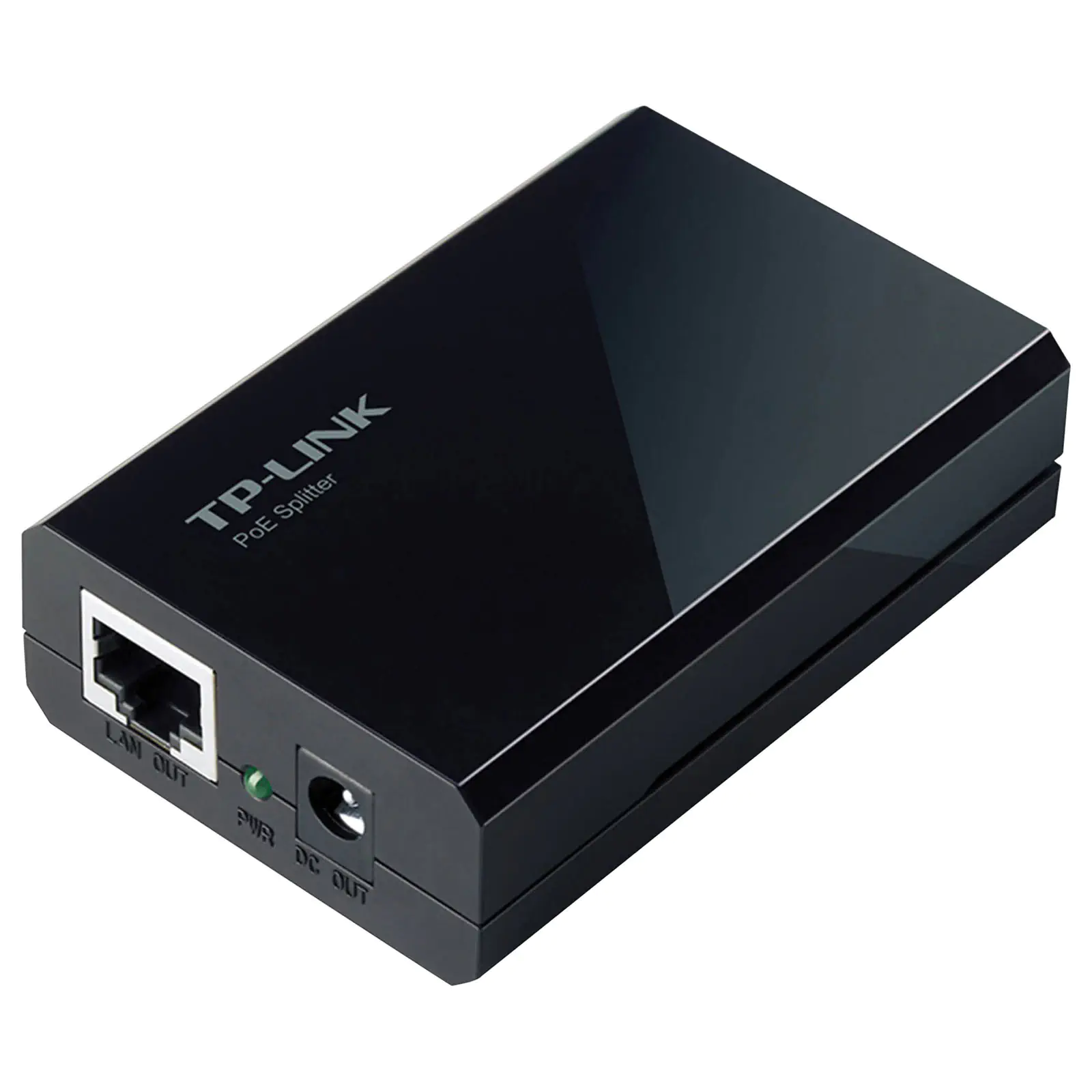

TL-POE10R Power Over Ethernet (PoE) Splitter

by: TP-Link
SKU: D4230
The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter.
$29.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $29.77
i h

Overview

The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter. It is designed for use at the end of PoE runs where power needs to be split from the PoE signal. Accepts 5, 9 or 12V PoE input and splits out to a standard RJ45 socket and 2.1mm DC jack. Ideal for powering wireless access points, phone systems etc.

*TP-LINKs TL-POE10R uses widely adopted PoE technology in the industry and provides more cost-effective PoE solution. It is highly recommended not to pair the PoE products with other PoE adapters unless under professional guidance.





Specifications:



Hardware Features:

Power Supply: 12VDC 1A, 9VDC 1A, 5VDC 2A



Basic Function:

Compatible With IEEE 802.3af Compliant PSEs

Delivers Power Up To 100 Meters

Optional 12VDC, 9VDC or 5VDC Power Output



Interface:

2 10/100/1000Mbps RJ45 Port

AUTO Negotiation/AUTO MDI/MDIX

1 POWER OUTPUT PORT



Network Media:

10BASE-T: UTP category 3, 4, 5 cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

100BASE-TX: UTP category 5, 5e cable (Max 100m)

EIA/TIA-568 100Ω STP (Max 100m)

1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)



LED Indicator: PWR

Dimensions: 80.8W x 54D x 24H mm



Software Features:

Basic Function

Compatible With IEEE 802.3af Compliant PSEs

Delivers Power Up To 100 Meters

Optional 12VDC, 9VDC or 5VDC Power Supply



Others:

Certification: FCC, CE, RoHS

System Requirements:

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing



Features:

  • IEEE 802.3af compliant
  • Delivers power up to 100 meters
  • Gigabit speed support
  • Optional 12V DC 9V DC or 5V DC power supply
  • Plug-and-Play, requires no configuration

Details

Products specifications

Warranty 3 Years
Tech & Data
Type Power Over Ethernet
