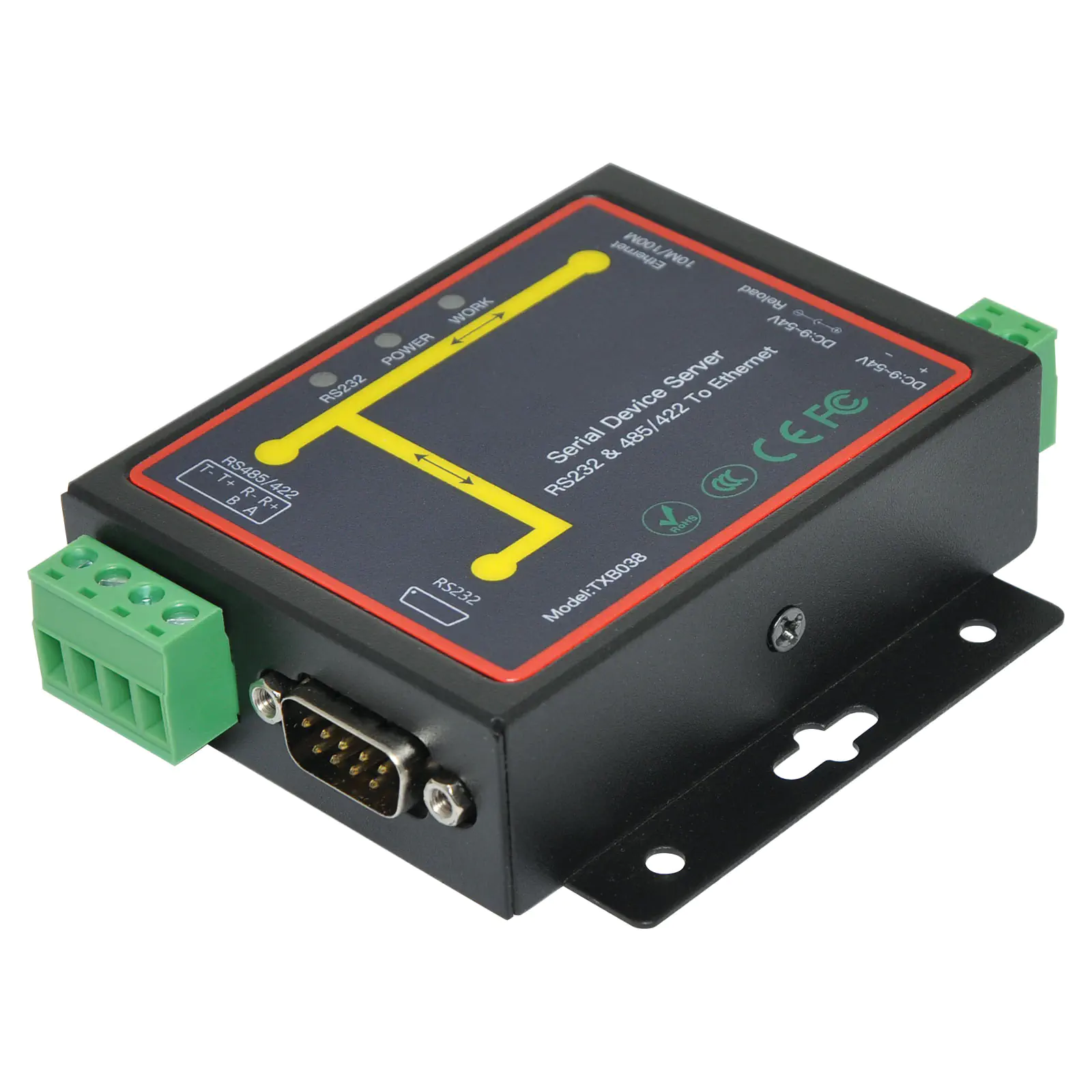

Serial To Ethernet Converter RS232/422/485/Modbus

SKU: D4231
This serial to ethernet adapter allows you to easily send serial RS232/422/485/Modbus over ethernet for controlling equipment over longer distances than traditional serial cables. This device can be controlled and set up remotely using a handy web based interface.
$81.77

All Prices Shown are (ex GST)
Bulk Pricing
ea $81.77
2+ $73.59
4+ $65.41
i h

Overview

This serial to ethernet converter allows you to easily send serial RS232/422/485 over ethernet for controlling equipment over longer distances than traditional serial cables. This device can be controlled and set up remotely using a handy web based interface.

9-54V DC power supply required. We recommend the M9273B 12V 0.5A power adapter.

Please Note: Plug pack not included.

Features

  • Supports auto-MDI/MDIX
  • Supports TCP/IP server, TCP/IP Client & UDP
  • Baud rate 300bps-230400bps
  • Supports Modbus RTU
  • Reload function
  • RS485 support full duplex and half duplex
  • Supports VSPE software.

Specifications

Chipset: IP210

Ports: 1 port 10/100M Auto MDI-MDIX RJ45,1port RS232, 1port RS485/422

Standards: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az

Network: 10Base-T, cat3 or above UTP, 10Base-Tx, cat5 UTP

Data rate: 10/100M

Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicators: Link/Act, Power, System, TX/RX

Baud rate: 110bps~256000bps

Operation modes: TCP Server, TCP Client, UDP

Dimension: 86W x 84H x 25Dmm

Power Input: 9V-54V DC

Power Consumption: Max 1.8W

Operating Temperature: -10°C to 55°C

Relative Humidity: 10%-90% (non-condensing)

Device Defaults

ID: admin

Password: system

IP address: 192.168.2.1

Operation mode: TCP server

Transmission Mode: RS232

Baud rate: 57600bps

UART parameters: 57600, 8, N, 1

Local port TCP 23, UDP 21

Details

Products specifications

Warranty 12 Months
Tech & Data
Type Serial To Ethernet Adapters

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Instructions
PDF
.zip
Vcom Software Drivers
ZIP
