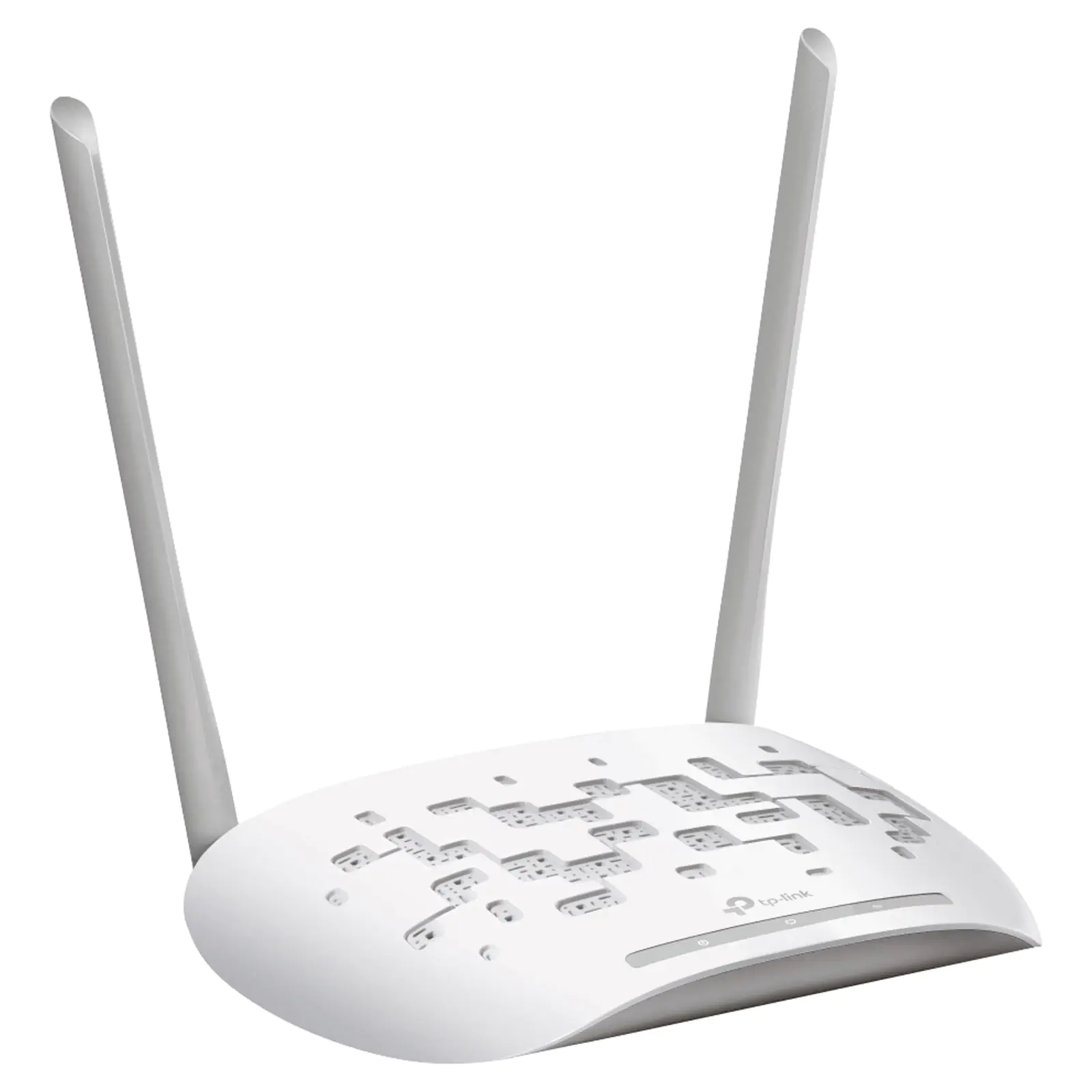

TL-WA801N 300Mbps Wireless N Access Point

by: TP-Link
SKU: D4278B
The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect an Ethernet-enabled device such as a game console, digital media adapter, printer, or network-attached storage device to a wireless network.
$67.27

All Prices Shown are (ex GST)

Bulk Pricing
ea $67.27
i h

Overview

The TP-LINK Wireless N Access Point TL-WA801N is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet-enabled devices such as game consoles, digital media adapters, printers, or network-attached storage devices to a wireless network. The AP supports a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or any other applications that you may wish to use.


Wireless N Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!


Multiple Operating Modes - Easy to Build WLAN
Supports multiple operation modes (Access Point, Multi-SSID, Client, Range Extender) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their APs. Multiple operating modes also help you easily build wireless network for hard-to-wire locations or eliminating wireless dead zone.


Passive PoE Supported -More Flexible Deployment
The TL-WA801N is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.



Package Contents:

1 x Wireless Access Point TL-WA801N

1 x Power Adapter

1 x Passive PoE Power Injector

1 x RJ45 Ethernet Cable

1 x Quick Installation Guide





Specifications:



Hardware:

Interface: 1× 10/100 M Ethernet Port(RJ45), Support Passive PoE

Button: Power On/O? Button, WPS Button, Reset Button

External Power Supply: 9VDC / 0.6A

Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H ): 7.1 × 5.1 × 1.4 in (181.6 × 129.5 × 36.2 mm)

Antenna Type: 2 Fixed Omni-Directional Antennas



Wireless:

Frequency: 2.4 GHz

Signal Rate: 300 Mbps at 2.4 GHz

Reception Sensitivity: 11g 6Mbps: -90dBm

11g 54Mbps: -77dBm

11n HT20 MC7: -73dBm

11n HT40 MC7: -70dBm

Transmit Power CE: <15dBm; FCC: <20dBm

Wireless Modes: AP Mode, Multi-SSID Mode, Client Mode, Range Extender Mode

Wireless Functions: Enable/Disable Wireless Radio, WMM, Short GI, AP Isolation, Wireless Statistics, Throughput Monitor

Wireless Security: WEP, WPA/WPA2, WPA/WPA2-PSK encryptions

Quality of Service: WMM

Management: SNMP

Advanced Functions: Up to 30 meters Passive PoE is supported



General:

Certification: CE, FCC, RoHS



System Requirements:

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux

Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser

Cable or DSL Modem

Subscription with an Internet Service Provider (for Internet access)

Environment Operating Temperature: 0°C~40°C (32°F ~104°F)

Storage Temperature: -40°C~70°C (-40°F ~158°F)

Operating Humidity: 10%~90% RH



Features:

  • 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
  • Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
  • Protects your home network with WPA2 encryption and makes quick connection with the push of a button
  • Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector
