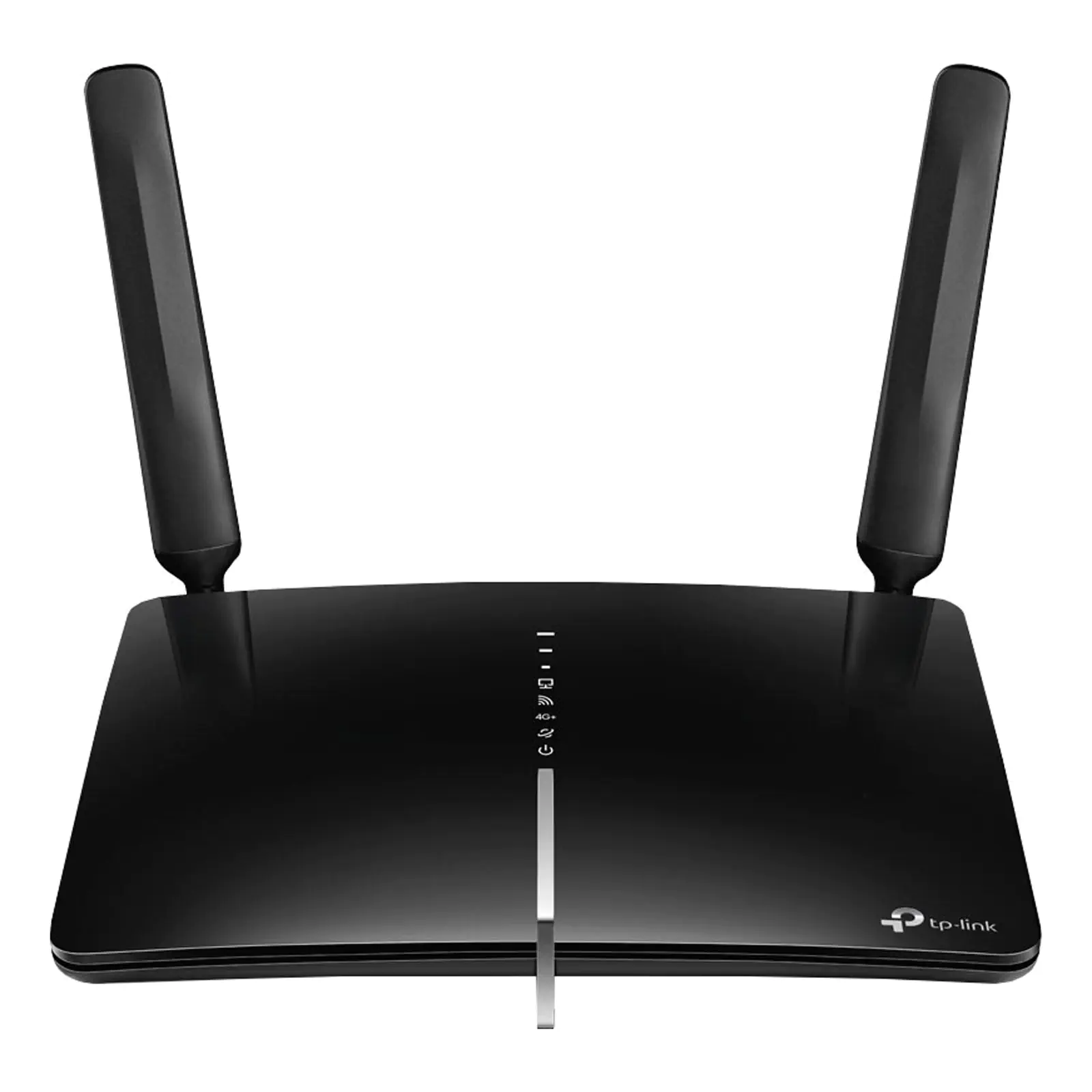

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

Specifications:

Hardware Features:

Interface: 1 × 10/100/1000 Mbps LAN/WAN Port, 3 × 10/100/1000 Mbps LAN Ports, 1 × Micro SIM Card Slot

Button: WPS Button, Reset Button, WiFi On/Off Button, Power On/Off Button

External Power Supply: Power Adapter: Input Power 100-240v~50/60 Hz 0.6A

Output parameter 12VDC 1.5A

Dimensions: 229W×160D×37H mm

Antenna: 2 × Detachable 4G LTE Antennas

Wireless Features:

Wireless Standards: IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency: 2.4 GHz and 5 GHz

Signal Rate: 300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz

Reception Sensitivity: 5 GHz: 11a 54M: -74 dBm, 11ac HT20: -66 dBm, 11ac HT40: -63 dBm, 11ac HT80 : -59 dBm, 11n HT20: -73 dBm, 11n HT40: -70 dBm, 2.4 GHz: 11g 54M: -74 dBm, 11n HT20: -72 dBm, 11n HT40: -69 dBm

Transmit Power: < 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

Software Features:

Quality of Service: Bandwidth Control

Security: DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management: TP-Link Cloud, Local Management, Remote Management

DHCP: Server, DHCP Client List, Address Reservation

Port Forwarding: ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS TP-Link, DynDns, NO-IP

VPN: PPTP VPN, IPSec VPN , OpenVPN

Access Control: Parental Control, Local Management Control

Firewall Security: DoS, SPI Firewall, IP Address Filter/Domain Filter,

IP and MAC Address Binding

Protocols: IPv4, IPv6

Guest Network: 2.4 GHz Guest Network x 1, 5 GHz Guest Network x 1

General:

System Requirements: Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,

NetWare, UNIX or Linux, Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other

Java-enabled browser, Micro SIM Card

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Features:

• TP-Link's First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps*
• Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
• Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
• Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
• Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection
• Supports TP-Link OneMeshTM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network
