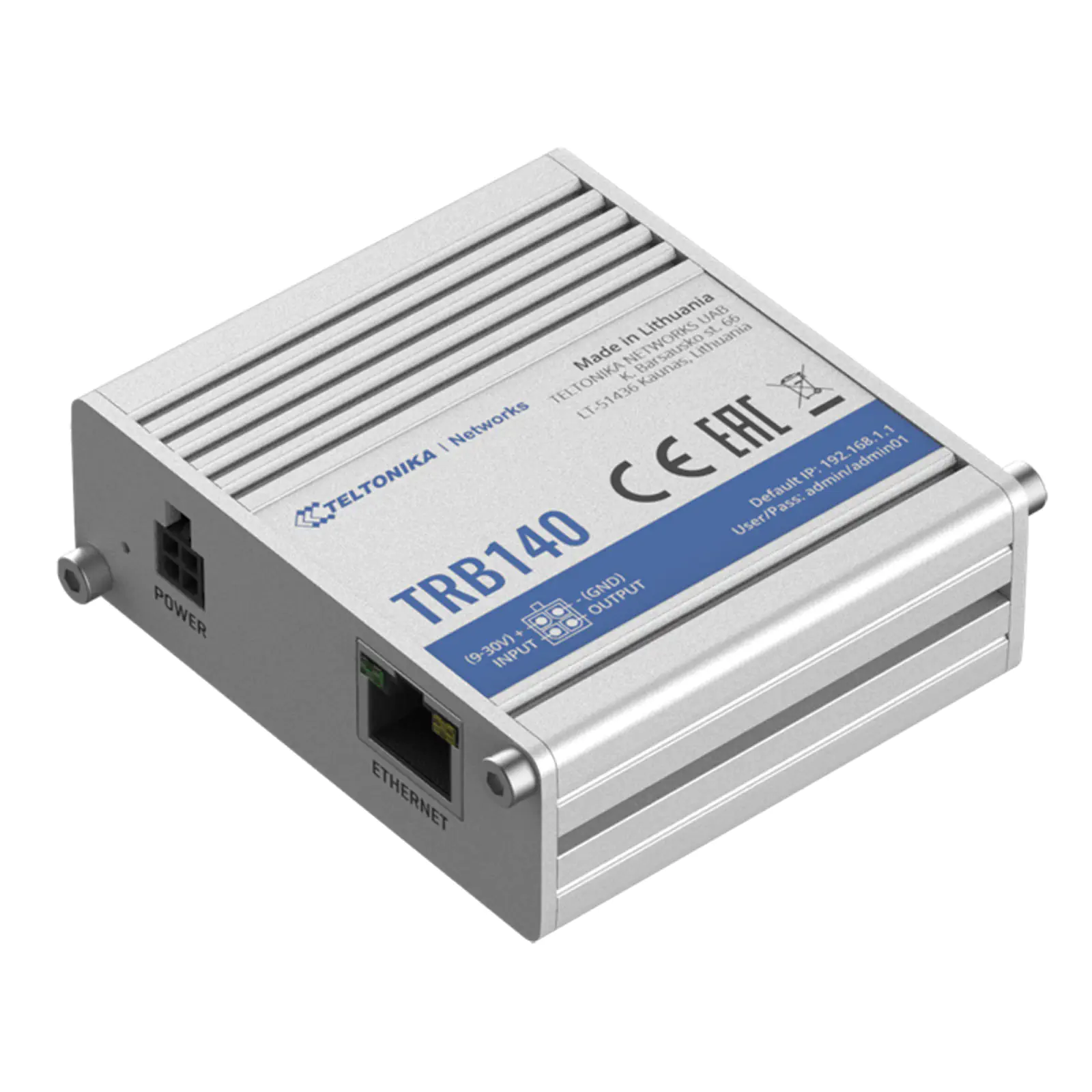

Teltonika TRB140 4G LTE Ethernet Gateway

SKU: D4364
TRB140 is an ultra-small, lightweight, and energy-efficient industrial gateway equipped with mission-critical LTE Cat 4 capabilities, Gigabit Ethernet interface, digital Inputs/Outputs, and micro-USB port. Because of its compact design, this product is perfect for projects and applications where a sole gadget requires reliable internet connectivity.
Save $121.82 $244.55 $366.37

All Prices Shown are (ex GST)
Bulk Pricing
ea
$244.55 $366.37
i h

Overview

TRB140 is an ultra-small, lightweight, and energy-efficient industrial gateway equipped with mission-critical LTE Cat 4 capabilities, Gigabit Ethernet interface, digital Inputs/Outputs, and micro-USB port. Because of its compact design, this product is perfect for projects and applications where a sole gadget requires reliable internet connectivity. TRB140 is specially engineered to be used in the industrial sector and has a wide range of software security features, such as SMS control, Firewall, Open VPN, IPsec, Remote Management System (RMS), and FOTA support.

Features:

  • 4G/LTE (Cat 4), 3G, 2G
  • Rugged aluminium housing
  • Easy to use, secure and feature rich OpenWRT based operating system
  • Wide range of supported power supply voltages
  • Small size, easy installation
  • Compatible with Teltonika Networks Remote Management System

Specifications

MOBILE

Mobile module 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps

Status Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.

SMS/Call SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities

USSD Supports sending and reading Unstructured Supplementary Service Data messages

Black/White list Operator black/white list

Band management Band lock, Used band status display

APN Auto APN

Bridge Direct connection (bridge) between mobile ISP and device on LAN

Passthrough Gateway assigns its mobile WAN IP address to another device on LAN

Multiple PDN Possibility to use different PDNs for multiple network access and services (optional)



ETHERNET

LAN 1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

NETWORK

Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)

Routing Static routing

Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

Firewall Port forwards, traffic rules, custom rules

DHCP Static and dynamic IP allocation

QoS / Smart Queue Management (SQM) (planned) Traffic priority queuing by source/destination, service, protocol or port

DDNS Supported >25 service providers, others can be configured manually

SSHFS Possibility to mount remote file system via SSH protocol



SECURITY

Authentication Pre-shared key, digital certificates, X.509 certificates

Firewall Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T

Attack prevention DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

Mobile quota control Set up custom data limits for SIM card

WEB filter Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

Access control Flexible access control of TCP, UDP, ICMP packets, MAC address filter



VPN

OpenVPN Multiple clients and a server can run simultaneously, 12 encryption methods

OpenVPN Encryption DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC

IPsec IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)

GRE GRE tunnel

PPTP, L2TP Client/Server services can run simultaneously, L2TPv3 support

ZeroTier ZeroTier VPN

WireGuard WireGuard VPN client and server support



MODBUS

MODBUS TCP SLAVE

ID filtering Respond to one ID in range [1;255] or any

Allow remote access Allow access through WAN

Custom registers MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality

MODBUS TCP MASTER

Supported functions 01, 02, 03, 04, 05, 06, 15, 16

Supported data formats 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII



MQTT GATEWAY

Gateway Allows sending commands and receiving data from MODBUS Master through the MQTT broker

DNP3

Supported modes TCP Master, DNP3 Outstation



DATA TO SERVER

Protocol HTTP(S), MQTT, Azure MQTT, Kinesis



MONITORING & MANAGEMENT

WEB UI HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log

FOTA Firmware update from sever, automatic notification

SSH SSH (v1, v2)

SMS SMS status, SMS configuration, send/read SMS via HTTP POST/GET

Call Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer

TR-069 OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

MQTT MQTT Broker, MQTT publisher

SNMP SNMP (v1, v2, v3), SNMP trap

JSON-RPC Management API over HTTP/HTTPS

MODBUS MODBUS TCP status/control

RMS Teltonika Remote Management System (RMS)



IoT PLATFORMS

Cloud of Things Allows monitoring of: Device data, Mobile data, Network info, Availability

ThingWorx Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

Cumulocity Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP

Azure IoT Hub Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server



SYSTEM CHARACTERISTICS

CPU ARM Cortex-A7 1.2 GHz CPU

RAM 128 MB (50 MB available for userspace)

FLASH storage 512 MB (200 MB available for userspace)



FIRMWARE / CONFIGURATION

WEB UI Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA Update FW/configuration from server

RMS Update FW/configuration for multiple devices

Keep settings Update FW without losing current configuration



FIRMWARE CUSTOMIZATION

Operating system RutOS (OpenWrt based Linux OS)

Supported languages Busybox shell, Lua, C, C++

Development tools SDK package with build environment provided



INPUT/OUTPUT

Configurable I/O 2 x Configurable Inputs/Outputs. Digital input 0 - 5 V detected as logic low, 8 - 30 V detected as logic high. Open collector output, max output 30 V, 300 mA (not available in TRB140*2****)

Output control HTTP POST/GET, Schedule

Events SMS, EMAIL

I/O juggler Allows to set certain I/O conditions to initiate event



POWER

Connector 4 pin industrial DC power socket

Input voltage range 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max

PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards

Power consumption < 5 W



PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM)

Ethernet 1 x RJ45 port, 10/100/1000 Mbps

I/Os 2 x Configurable I/O pins on 4 pin power connector (I/O not available in TRB140*2****)

USB 1 x Virtual network interface via micro USB

Status LEDs 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED

SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Power 1 x 4 pin DC connector

Anntena 1 x SMA for LTE

Reset Reboot/User default reset/Factory reset button



PHYSICAL SPECIFICATIONS

Casing material Aluminum housing

Dimensions (W x H x D) 74.5 x 25 x 64.4 mm

Weight 134 g

Mounting options Bottom and sideways DIN rail, Flat surface

OPERATING ENVIRONMENT

Operating temperature -40 °C to 75 °C

Operating humidity 10 % to 90 % non-condensing

Ingress Protection Rating IP30

REGULATORY & TYPE APPROVALS

Regulatory CE/RED, EAC, RoHS, WEEE



EMI

Standards Draft ETSI EN 301 489-1 V2.2.0, Draft ETSI EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0

ESD EN 61000-4-2:2009

RS EN 61000-4-3:2006 + A1:2008 + A2:2010

EFT EN 61000-4-4:2012

Surge protection EN 61000-4-5:2014

CS EN 61000-4-6:2014

DIP EN 61000-4-11:2004



RF

Standards EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-1 V11.1.2, EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2



SAFETY

Standards IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017

EN 50385:2017

EN 62232:2017

Details

Products specifications

Warranty 12 Months
