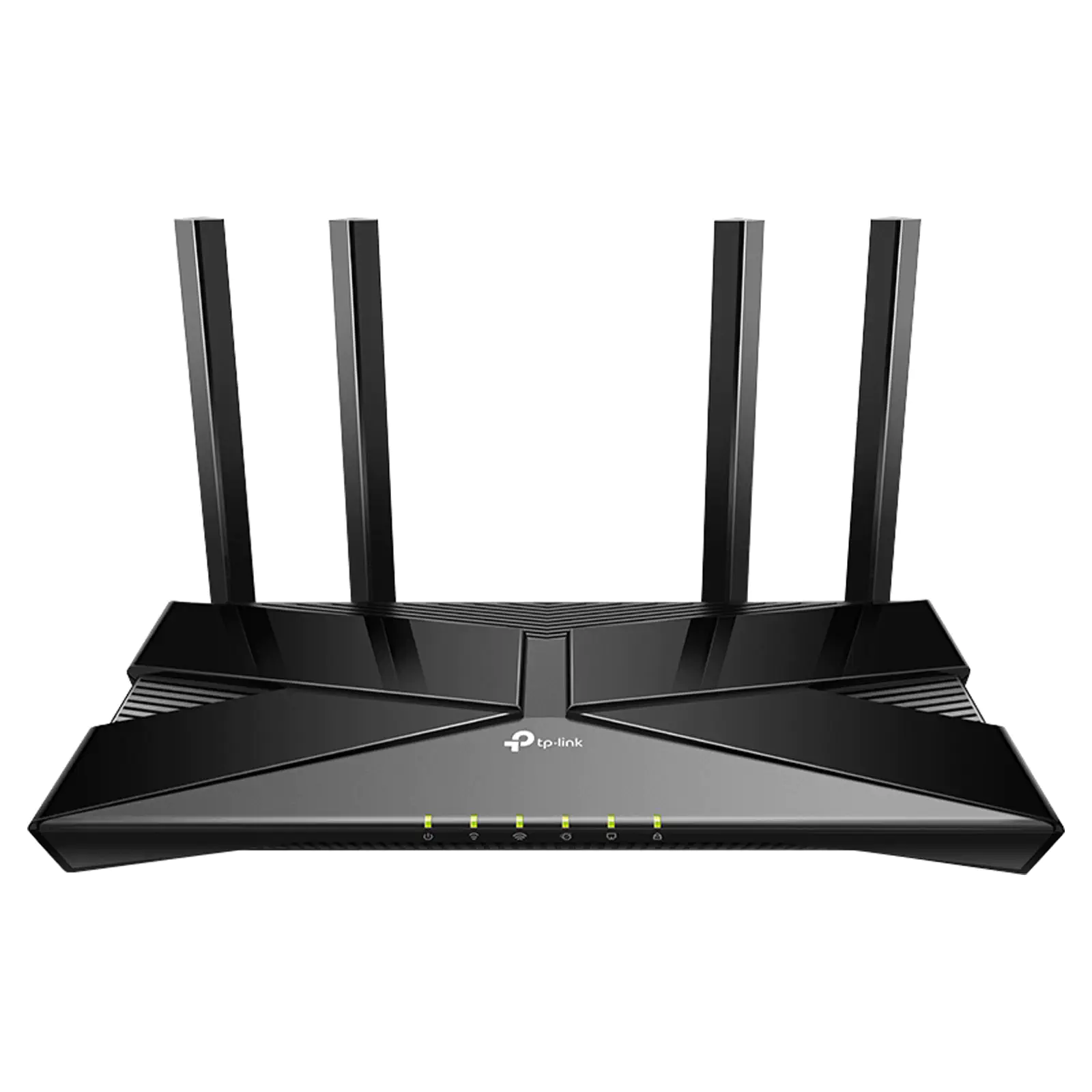

Archer AX1500 Wi-Fi 6 Wireless Router

by: TP-Link
SKU: D4370A
This Archer AX1500 Wi-Fi 6 Router you can Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency.
$143.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $143.64
i h

Overview

This Archer AX1500 Wi-Fi 6 Router you can Wi-Fi 6 efficiently transmits data, enabling data packets for different applications to share one broadcast and cut the latency. You can enjoy flawless video and audio chats, better gaming speeds, and instantaneous video loading on different devices—all at the same time. The added feature of Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest Wi-Fi technology to wipe out all the annoying jittering and slow down, and enjoy the future network that loads faster and connects more. The latest 1024-QAM and higher symbol rate combine to boost speeds for newer devices to the Gigabit level. Connect to a 1 Gbps Wi-Fi network with your phone or laptop, and enjoy speeds comparable to plugging in an Ethernet cable. Add more Wi-Fi devices without dragging down performance. OFDMA allows multiple devices to use one single band at the same time, enabling your Wi-Fi to bear more devices compared to the same speed level Wi-Fi 5 router. Dimensions: 260.2 × 135.0 × 38.6 mm.

Package Contents:

Wi-Fi Router Archer AX1500

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide



Specifications:



Security:

Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway

Guest Network: 1 x 5 GHz Guest Network, 1× 2.4 GHz Guest Network

VPN Server: OpenVPN, PPTP

WiFi Encryption: WEP, WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)

Wireless:

Standards: Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds: AX1500, 5 GHz: 1201 Mbps (802.11ax), 2.4 GHz: 300 Mbps (802.11n)

WiFi Range: 2-3 Bedroom Houses (4× Fixed High-Performance Antennas, Multiple antennas form a signal-boosting array to cover more directions and large areas). Beamforming (Concentrates wireless signal strength towards clients to expand WiFi range)

WiFi Capacity: High; Dual-Band, Allocate devices to different bands for optimal performance. OFDMA; Simultaneously communicates with multiple Wi-Fi 6 clients. Airtime Fairness; Improves network efficiency by limiting excessive occupation. 4 Streams; Connect your devices to more bandwidth

Working Modes: Router Mode, Access Point Mode



Hardware:

Processor: 1.5 GHz Triple-Core CPU

Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports

Buttons: WPS/Wi-Fi Button, Power On/Off Button, Reset Button

Power: 12 V ⎓ 1 A



Software:

Protocols: IPv4, IPv6

EasyMesh: Mesh networking creates smooth, fast, stable roaming. ArcherAX1500 can build an EasyMesh network with devices that use EasyMesh technology. It also works with other TP-Link products to create a OneMesh network. Eliminate Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi.

Parental Controls: URL Filtering, Time Controls

WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP

Quality of Service: QoS by Device

Cloud Service: Auto Firmware Upgrade, OTA Firmware Upgrade, TP-Link ID, DDNS

NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP

IPTV: IGMP Proxy, IGMP Snooping, Bridge,Tag VLAN

DHCP: Address Reservation, DHCP Client List, Server

DDNS: TP-Link, NO-IP, DynDNS

Management: Tether App, Webpage



General

System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Cable or DSL Modem (if needed), Subscription with an internet service provider (for internet access)

Certifications: FCC, CE, RoHS

Operating Temperature: 0℃~40℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing



WiFi Transmission Power:

CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

FCC: <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)



WiFi Reception Sensitivity:

5 GHz:

11a 6Mbps:-97dBm, 11a 54Mbps:-79dBm

11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS11:-66dBm

11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS11:-63dBm

11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS11:-60dBm

11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-63dBm

11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-60dBm

11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-58dBm



2.4 GHz:

11g 6Mbps:-91dBm, 11a 54Mbps:-74dBm

11n HT20_MCS0:-90dBm, 11n HT20_MCS7:-73dBm

11n HT40_MCS0:-88dBm, 11n HT40_MCS7:-70dBm



Features:

  • Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.
  • Next-Gen 1.5 Gbps Speeds
  • Communicates more data to more devices using revolutionary OFDMA and MU-MIMO technology while simultaneously reducing lag.
  • Triple-Core Processing ensures communications between your router and all connected devices are smooth and buffer-free.
  • Achieve the strongest, most reliable WiFi coverage with Archer AX1500 as it focuses signal strength to your devices using Beamforming technology and four antennas.
  • Increased Battery Life
  • Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
  • Backward Compatible: Archer AX1500 supports all previous 802.11 standards and all WiFi devices.

Details

Products specifications

Warranty 5 Years
Tech & Data
Type Wi-Fi Routers
