NEW

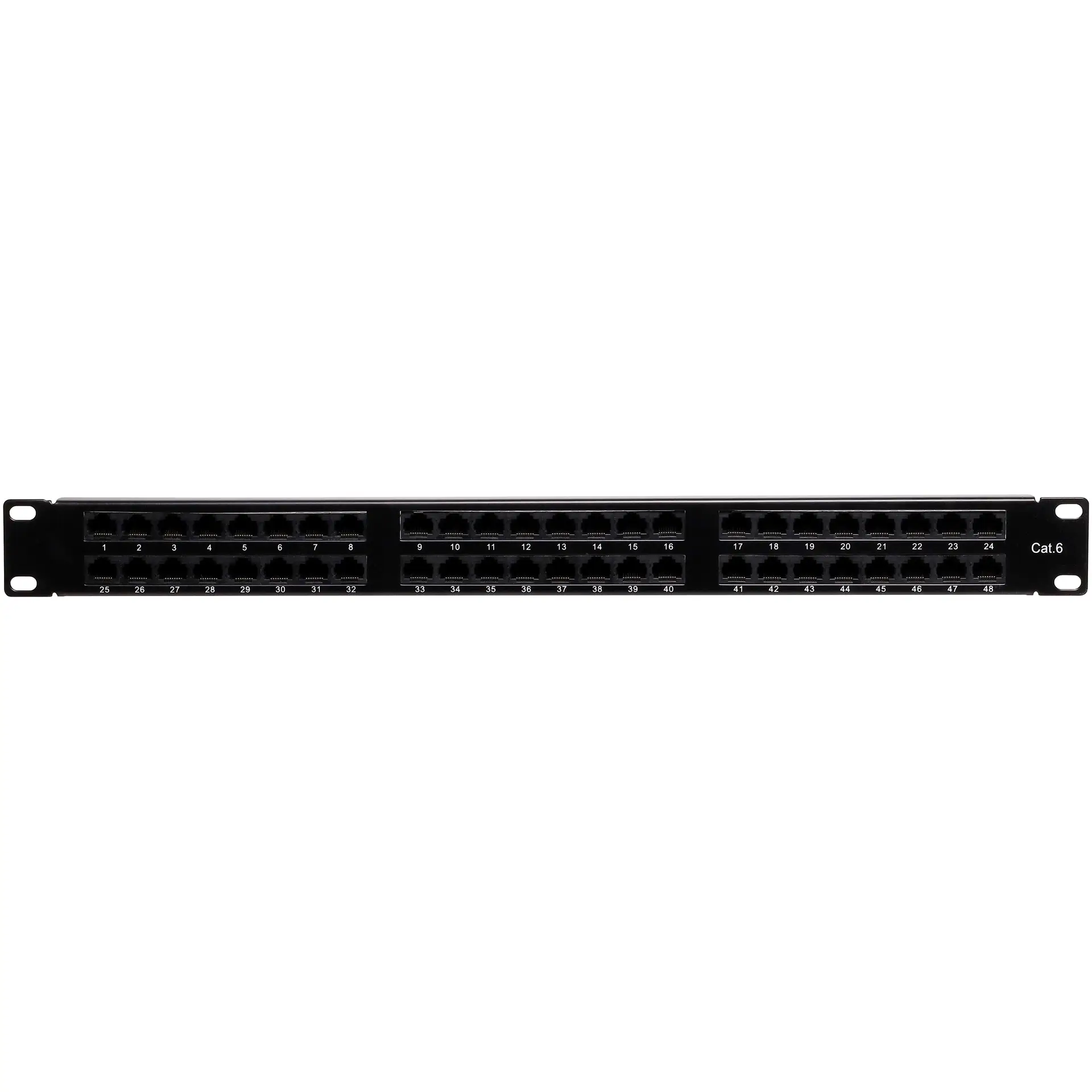

48 Port 1RU Enhanced Cat6 Patch Panel

SKU: D5140
This 1RU panel is fitted with 48 RJ45 punchdown terminals for cable termination. Port numbers fields can be written on and fitted securely behind a clear lexan. Black finish. Includes rear cable support bar.
$144.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $144.55
4+ $131.82
10+ $113.64
i h

Overview

This 1RU panel is fitted with 48 RJ45 punchdown terminals for cable termination. Port numbers fields can be written on and fitted securely behind a clear lexan. Black finish. Includes rear cable support bar.



Specifications:



Electrical Specifications

Voltage Rating: 125V AC RMS

Current Rating: 1.5A

Contact Resistance: 100mΩ (max)

Insulation Resistance: 1000MΩ (min @ 500V DC)

Dielectric Strength: 750V AC RMS @ 60Hz for 1 minute



Environmental Specifications

Storage Temperature: -40°C ~ +85°C

Operating Temperature: 0°C ~ +70°C



Mechanical Specifications

Housing Material: PC

Panel Frame: Carbon steel, black powder coated

PCB Material: FR-4 T=1.6mm

IDC Material: PC

Contact: Phosphor bronze with nickel plating

RJ45 Jack Life: 750 times (min)

IDC Life: 200 times (min)

Wire Gauge: 22-26AWG

Details

Products specifications

Warranty 12 Months
