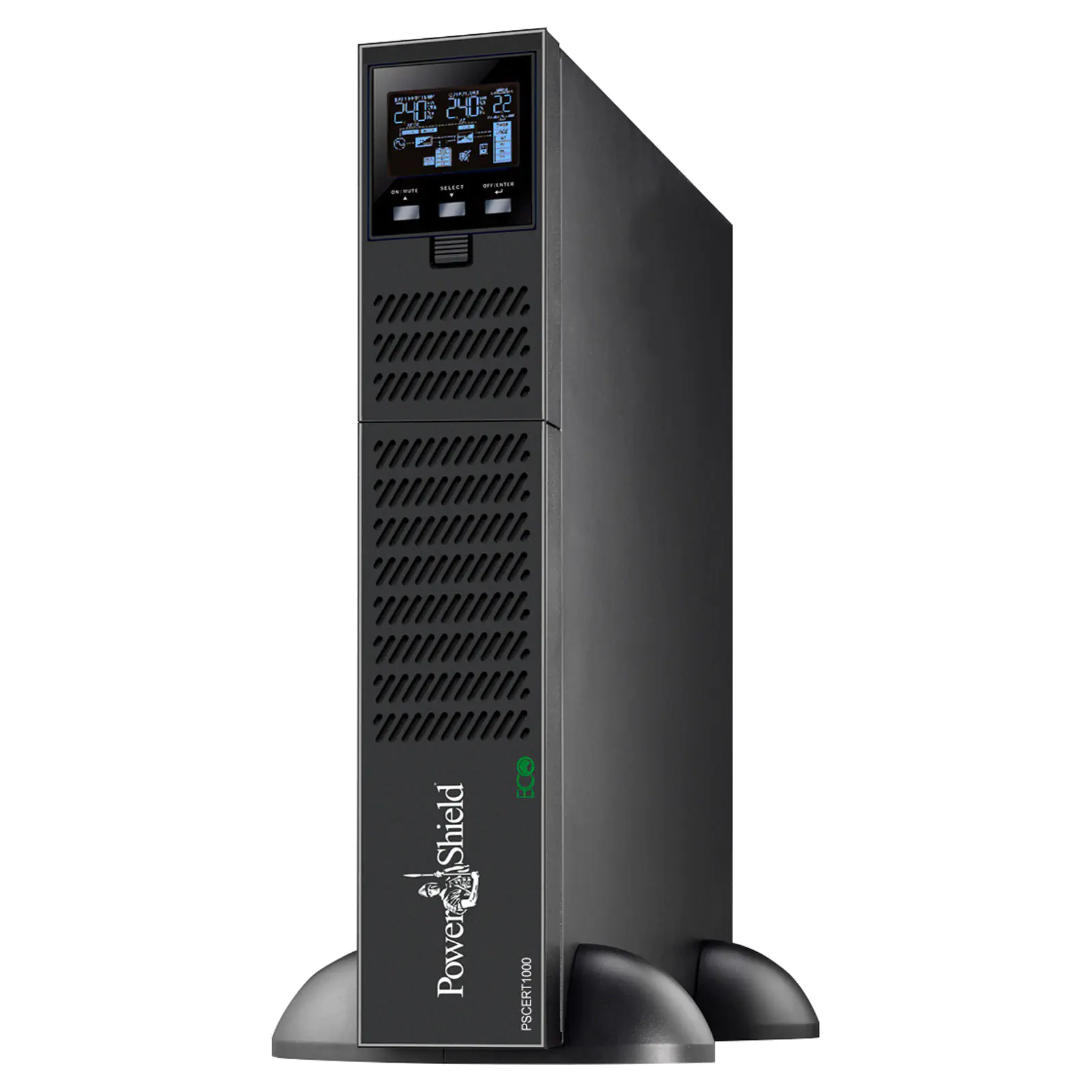

PowerShield Centurion RT PSCERT1000 1000VA UPS

Specifications:

Capacity: 1000VA/800W

Voltage range:

-Low line transfer: 160VAC/140VAC/120VAC/110VAC ± 5 %,

( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)

– Low line comeback: 175VAC ±5%

– High line transfer: 300VAC ±5%

– High line comeback: 290VAC ±5%

Frequency Range: 47.5Hz - 52.5Hz or 57Hz - 63Hz

Phase: Single phase with ground

Power factor: =0.98

Output:

Voltage (selectable): 240VAC (Selectable 208, 220, 230VAC)

AC Voltage regulation (Battery mode): ±3%

Frequency range (Synchronised range): 47Hz - 53Hz or 57Hz - 63Hz

Frequency range (Battery mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz

Current Crest Ratio: 3:1

Harmonic Distortion: =3% THD (linear load), =6% THD (non linear load)

Transfer time:

– AC mode to battery mode: Zero

– Inverter to bypass: 4ms (typical)

Waveform: Pure Sine wave

Efficiency:

AC Mode: 85%

Battery mode: 83%

Battery:

Battery type: 12V 9Ah

Quantity: 3pcs

Typical recharge time: 4 hours recover to 90% capacity

Charging current (max): 1.0A

Charging voltage: 41.0VDC ±1%

Indicators:

LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Alarms:

Battery mode: Sounding every 4 seconds

Low battery: Sounding every second

Overload: Sounding twice every second

Fault: Continuously sounding

Physical:

Dimensions: 380D x 438W x 88Hmm 2RU mm

UPS Net weight: 16kg

Environment:

Operational humidity: 20-90 % RH @ 0- 40°C (non-condensing)

Noise: Less than 45dBA @ 1 Meter

Management:

Smart RS232, USB: PowerShield NetGuard® Software - Supports Windows Based Operating Systems, Linux & Unix
