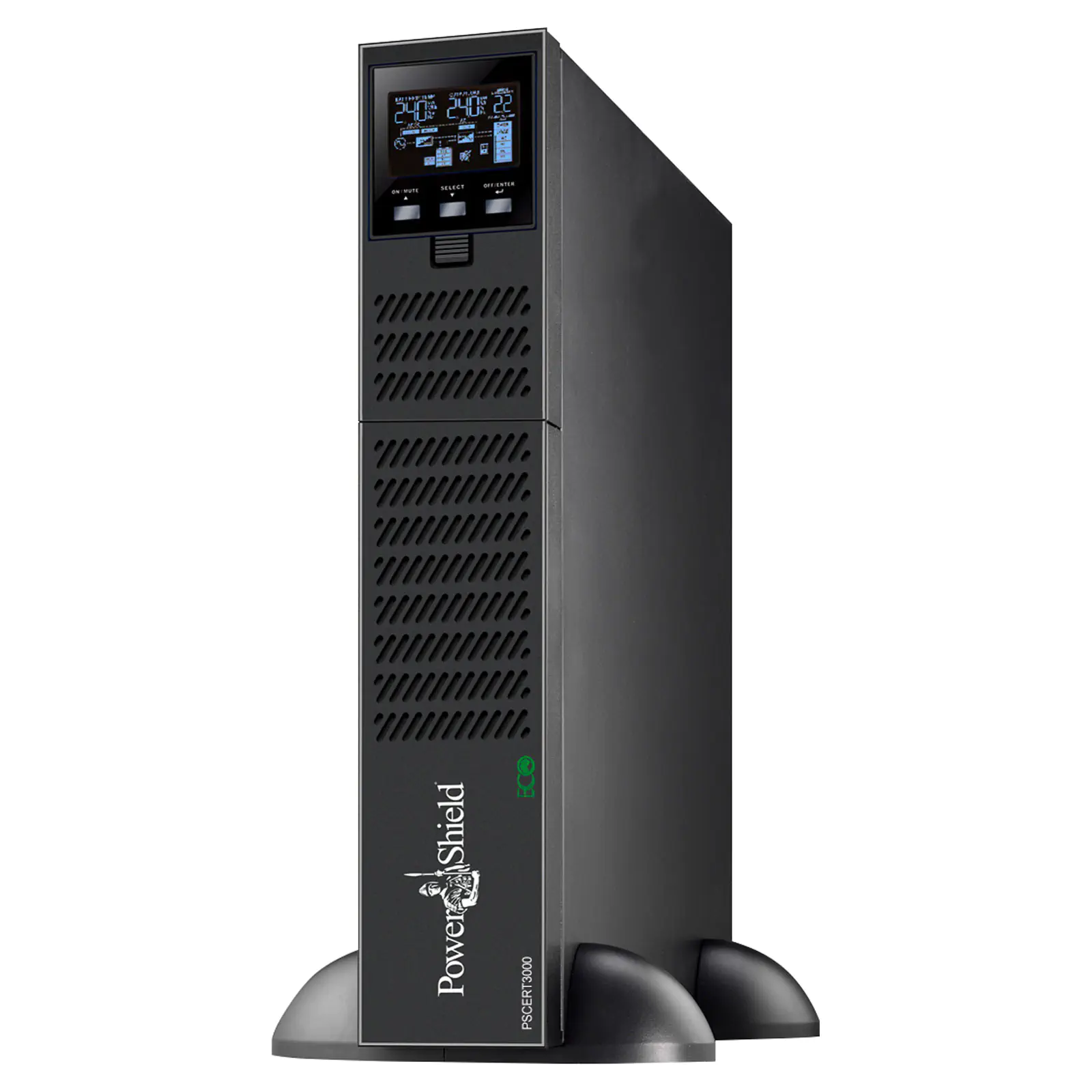

PowerShield Centurion RT PSCERT3000 3000VA UPS

Specifications:

Capacity: 3000VA/2700W

Voltage range:

-Low line transfer: 160VAC/140VAC/120VAC/110VAC ± 5 %,

( based on load percentage 100% - 80 % / 80 % - 70 % / 70 - 60 % / 60 % - 0)

– Low line comeback: 170/150/130/120VAC ±5%

– High line transfer: 300VAC ±5%

– HIgh line comeback: 290VAC ±5%

Frequency Range: 40-70Hz

Phase: Single phase with ground

Power factor correction: =0.99@100% nominal load

Output:

Voltage (selectable): 240VAC (Selectable 208, 220, 230, 240VAC)

AC Voltage regulation (Battery mode): ±1%

Frequency range (Battery mode): 50Hz or 60Hz ±1%

Current Crest Ratio: 5:1

Transfer time: 4ms

Efficiency:

ECO Mode: 98%

Battery mode: 87%

Battery:

Battery type: 12V 9Ah x 6

Quantity: 6pcs

Typical recharge time: 4 hours recover to 90% capacity

Charging current (max): 1.5A

Indicators:

LCD Panel: UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions

Alarms:

Battery mode: Sounding every 4 seconds

Low battery: Sounding every second

Overload: Sounding twice every second

Fault: Continuously sounding

Physical:

Dimensions: 600D x 438W x 88H 2RU mm

UPS Net weight: 29.6kg

Environment:

Operational humidity: 20-90 % RH @ 0- 40°C (non-condensing)

Noise: Less than 50dBA @ 1 Meter

Management:

Smart RS232, USB: PowerShield NetGuard® Software - Supports Windows Based Operating Systems, Linux & Unix
