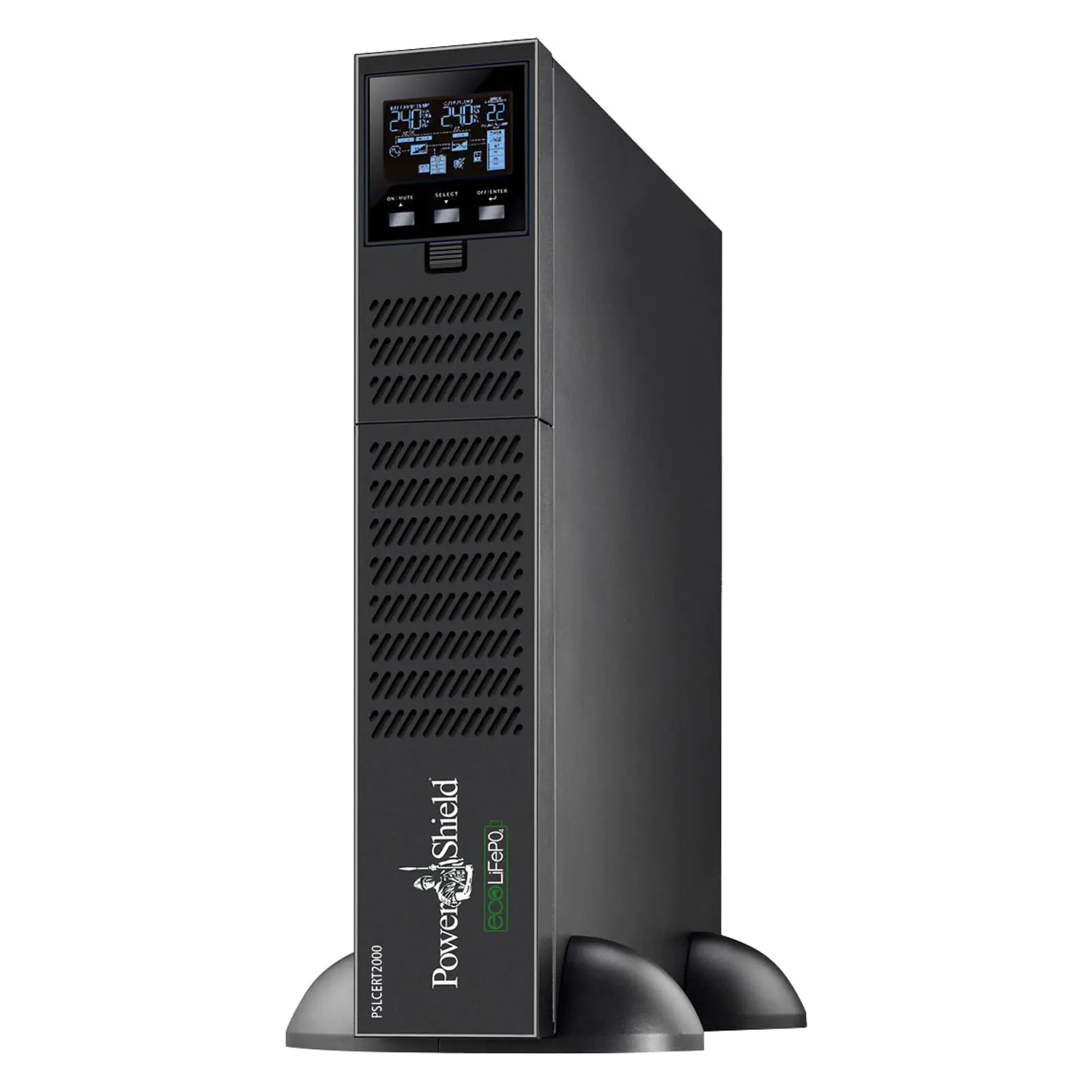

PowerShield Centurion RT LiFePO4 PSLCERT2000 2000VA UPS

by: PowerShield
SKU: DA0922
The PowerShield Centurion series features true online double conversion and a Lithium-iron Phosphate advantage that includes extended battery life, lighter weight, faster recharge, higher performance and higher power density. 2000VA version.
$5,216.36

All Prices Shown are (ex GST)
Bulk Pricing
ea $5,216.36
i h

Overview

The Centurion LiFePO4 features true online double conversion and a Lithium-iron Phosphate advantage that includes extended battery life, lighter weight, faster recharge, higher performance and higher power density. As our highest single phase power density UPS, this sophisticated range will provide the most comprehensive protection for mission-critical devices such as sensitive networks, computers, servers, telecom applications, as well as industrial applications.

Visit the PowerShield UPS Sizing Guide. which will help you select the correct UPS for your power protection needs.







Specifications:

Capacity: 2000VA/1800W

Topology: True online double- conversion,Pure Sine Wave

Safety / EMC / RoHS: EN62040-1-1 2003, IEC60950-1-1 / EN62040-2 2006 / Directive 2011/65/EU



Input:



Voltage Range

- Low Line Transfer: 160Vac / 140Vac / 120 / 110Vac ± 5 %

(based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0)

- Low Line Comeback: 175Vac / 155Vac / 135Vac / 125Vac ± 5%

- High Line Transfer: 300Vac ± 5 %

- High Line Comeback: 290Vac ± 5 %



Frequency Range: 40Hz - 70Hz

Phase: Single phase with ground

Power Factor Correction: = 0.99 @ nominal voltage (100% load)



Output:

Output Power Factor: 0.9

Output Voltage (AC Mode): 240Vac (Selectable 200/208/220/230/240Vac)

Voltage Regulation (Batt. Mode): ± 1%

Frequency Range (Batt. Mode): 50Hz or 60Hz ±1Hz

Current Crest Ratio: 3:1 (max.)



Transfer

- AC Mode to Batt. Mode: Zero

- Inverter to Bypass: 4ms (Typical)

Waveform (Batt. Mode): Pure Sine Wave



Efficiency:

ECO Mode (Advanced): 97%

Battery Mode: 88%



Battery:

Battery: LiFePO4

Typical Recharge Time: 2hrs



Backup Time:

- 25% Load: 44 mins

- 50% Load: 22 mins

- 75% Load: 14 mins

- 100% Load: 11 mins



Protection:

Full Protection: Overload, discharge, thermal, short circuit and overcharge protection

Surge Protection: 1872 Joules / 39000 Amps



Communications and Management:

Interface: USB or RS232 as standard, Intelligent slot for PSSNMP, PSModbus or PSAS400 dry contact

Software: PowerShield® NetGuard® software - supports Windows, Linux, Unix and Mac based operating systems

HID: Supports Windows, Apple, Linux, NAS and various industrial controllers

LCD Display/Alarm: UPS Status, Load & Battery Level, Input/Output Voltage, Batt. Time Remaining and Fault Indicators

Audible Alarm: Battery Mode, Bypass Mode, Low Battery (Batt. Mode), Fault, Overload



Physical:

Dimensions: 480D x 438W x 88H mm

Weight: 14.6kg



Operating Environment:

Temperature: 0-40°C

Humidity: 20 - 90% (RH Non-condensing)

Noise Level: < 50dBA @ 1 Meter



Features:

True double-conversion

HID comms via USB

Output power factor 0.9

User-friendly and electronic easy-shift LCD display

Rack or Tower design

Advanced ECO mode for energy saving

Generator compatible

Programmable power management outlets

Emergency Power Off function (EPO)

Hot swappable battery design

Ideal for medium density power protection

Extra large charger
