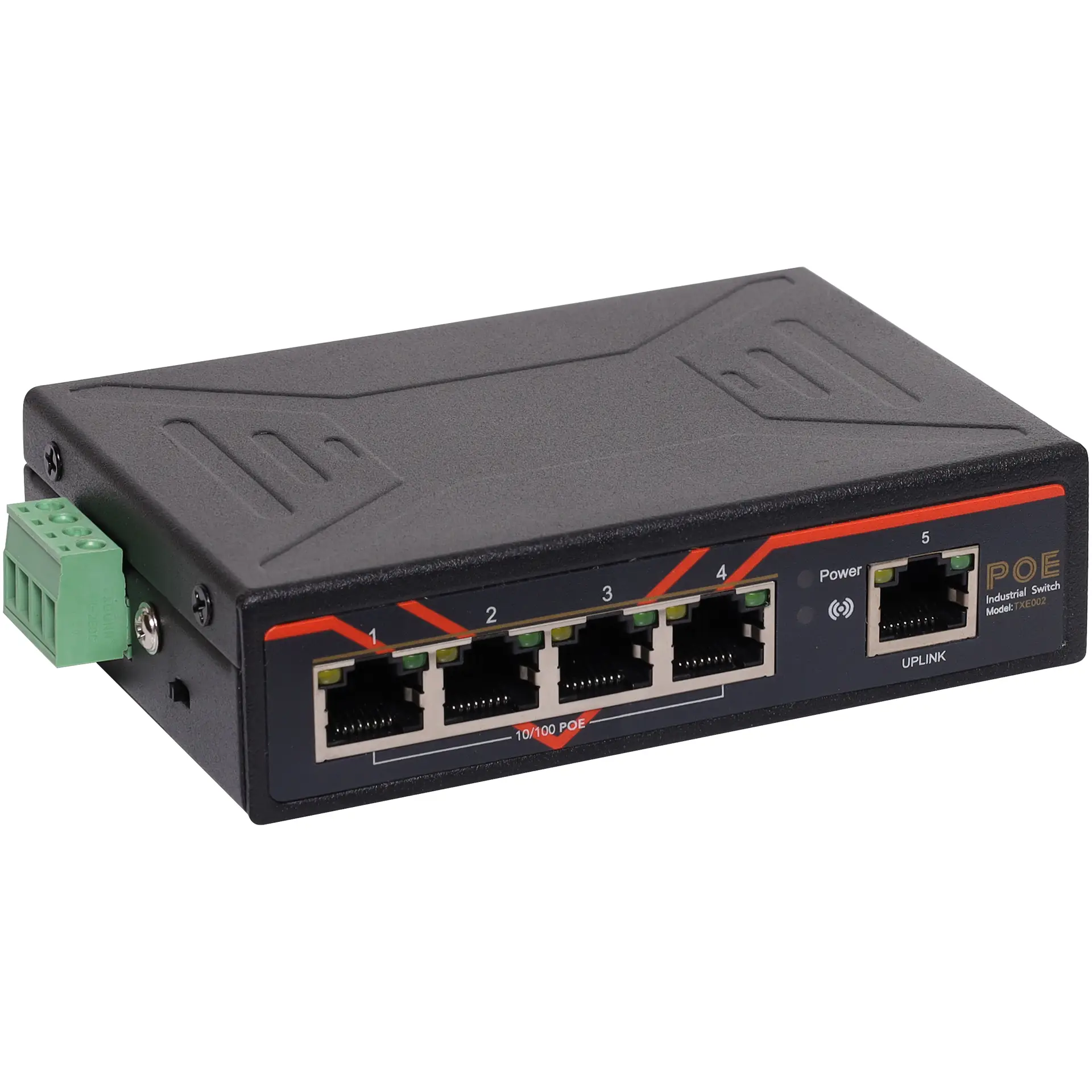

5 Port 10/100M PoE DIN Rail Ethernet Switch

SKU: DR4191
A compact 4 port (+uplink port) 100Mbps switch for use where DIN rail mounting is required in industrial data/automation. Perfect for compatible PoE devices.
$108.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $108.18
2+ $99.09
4+ $90.86
i h

Overview

A compact 4 port (+uplink port) 100Mbps switch for use where DIN rail mounting is required in industrial data/automation. Powered by 48V DC input (screw terminal). It's fully compatible with PoE devices, such as IP cameras, access points, and IP phones. Featuring five 10/100Mbps auto-sensing RJ45 ports, with four ports supporting PoE power (Ports 1–4) that comply with IEEE802.3af and IEEE802.3at standards.

Features

  • Five 10/100Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports
  • Supports PoE power
  • Compact design
  • Delivers consistent network speed and power output for connected devices.


Specifications

    Chipset: IP175GHI+IP804A

    Port Number: 1 port uplink and 4port POE

    Standard: IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3az、IEEE 802.3af、IEEE 802.3at

    Network media: 10Base-T, cat3 or above UTP, 100Base-Tx, cat5 UTP

    Data rate: 10/100M Forwarding rate 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

    LED Indicator: 10/100Mbps(Link/Act, speed), Power, POE, 10M Indicator

    Dimension: 118 x 80 x 30mm

    Power Input: DC48V-54V

    Power Consumption: Max1.5W

    Operating Temperature: -40℃ to 85℃

    Relative Humidity: 10%-90%(non-condensing)

    Storage Temperature: -40℃ to 85℃

    Relative Humidity: 5%-90%(non-condensing)

    Other function: 10M switch

    Details

    Products specifications

    Warranty 12 Months
    Tech & Data
    Type Power Over Ethernet

    Warranty

    WARRANTY

    We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

    30 DAY MONEY BACK GUARANTEE

    Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
