120mm 240VAC Sleeve Bearing Slimline Cooling Fan

by: Sunon
SKU: F1028

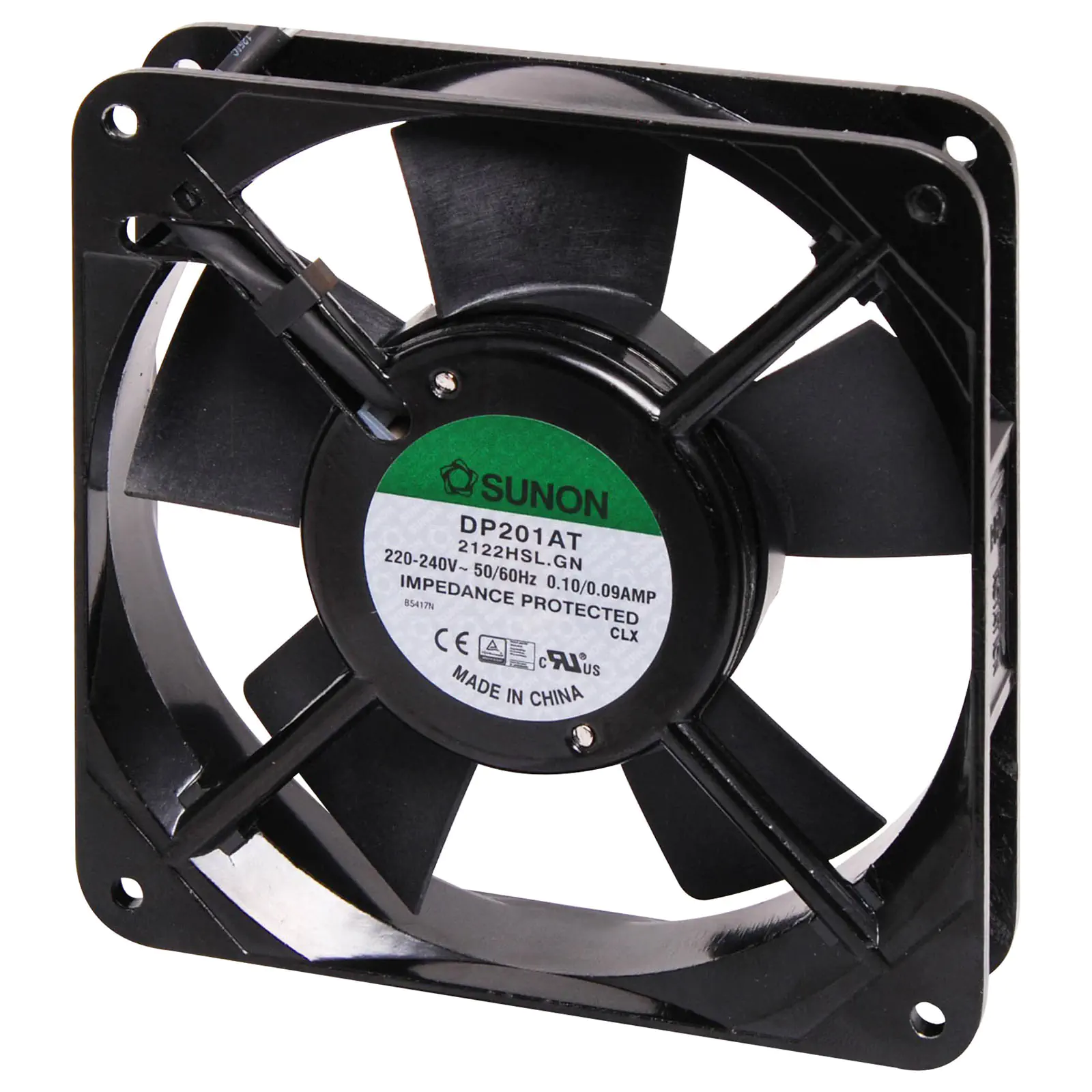

Sunon DP201AT-2122HSL.GN. A 240V AC 120mm Sunon Sleeve Bearing Cooling Fan with diecast aluminium frame.
$38.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $38.14
4+ $34.50
10+ $32.73
i h

Overview

Sunon DP201AT-2122HSL.GN 240V AC 120mm Sleeve Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.





Specifications:



Mechanical Characteristics

Motor Design: Shaded pole motor construction

Motor Protection: Impedance Protection

Bearing System: Lubricated sleeve bearing system

Frame Material: Die-cast aluminium

Blade Material: Thermoplastic PBT of UL 94V-0

Direction of Rotation: Counter clockwise viewed from the front of the fan blade

Connection: Fly leads (330mm)

Mounting Holes: 8x 4.3mm holes

Weight: 295g

Dimensions: 120 x 120 x 25mm



Electrical Characteristics

Rated Voltage: 220-240V AC at 50/60Hz

Rated Current: 0.09/0.08A

Safety Current: 0.10/0.09A

Rated Power: 18/16.5W

Operating Voltage Range: 185-245V AC

Starting Voltage: 185V AC (25°C Power On/Off)

Operating Temperature: -10°C ~ +70°C

Storage Temperature: -40°C ~ +70°C



Performance Characteristics

Rated Speed: 2000/2300 RPM ±10%

Air Flow: 64/78 CFM

Static Pressure: 0.13/0.16 Inch-H2O

Noise Level: 43/46dB(A)

Insulation Resistance: 500MΩ (min) at 500V DC

Dielectric Strength: 1500V AC for one second
