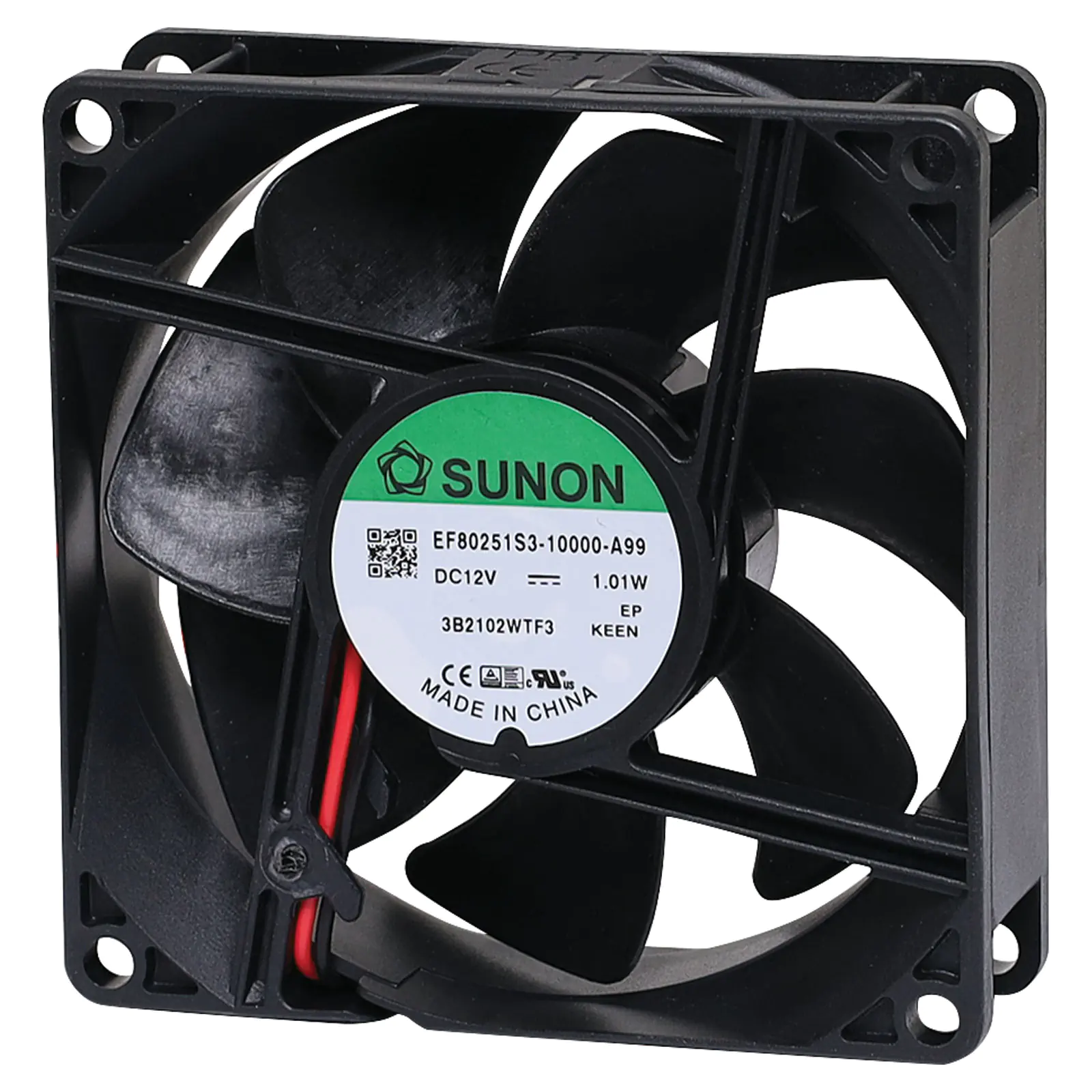

80mm 12VDC Sleeve Bearing Cooling Fan

Specifications:

Mechanical Characteristics:

Motor Design: Brushless DC motor

Bearing System: Lubricated sleeve bearing system

Frame Material: Thermoplastic PBT of UL94V-0

Blade Material: Thermoplastic PBT of UL94V-0

Direction of Rotation: Counter clockwise viewed from the front of the fan blade

Connection: Fly leads (315mm)

Mounting Holes: 8x 4.3mm holes

Weight: 75g

Dimensions: 80 x 80 x 25mm

Electrical Characteristics:

Rated Voltage: 12V DC

Rated Current: 70mA (84mA max)

Rated Power Consumption: 0.84W (1.01W max)

Safety Power Consumption: 1.01W

Operating Voltage Range: 4.5~13.8V DC

Starting Voltage: 4.5V DC (25°C Power On/Off)

Operating Temperature: -10°C ~ +70°C

Storage Temperature: -40°C ~ +70°C

Performance Characteristics:

Rated Speed: 2600 RPM ±10% at rated voltage

Air Flow: 33 CFM

Static Pressure: 0.11 Inch-H2O

Noise Level: 28dB(A)

Insulation Class: UL Class A

Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)

Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)

Life Expectancy: 35,000 hours at 40°C, 65% RH, 90% CL

Protection: Automatic restart
