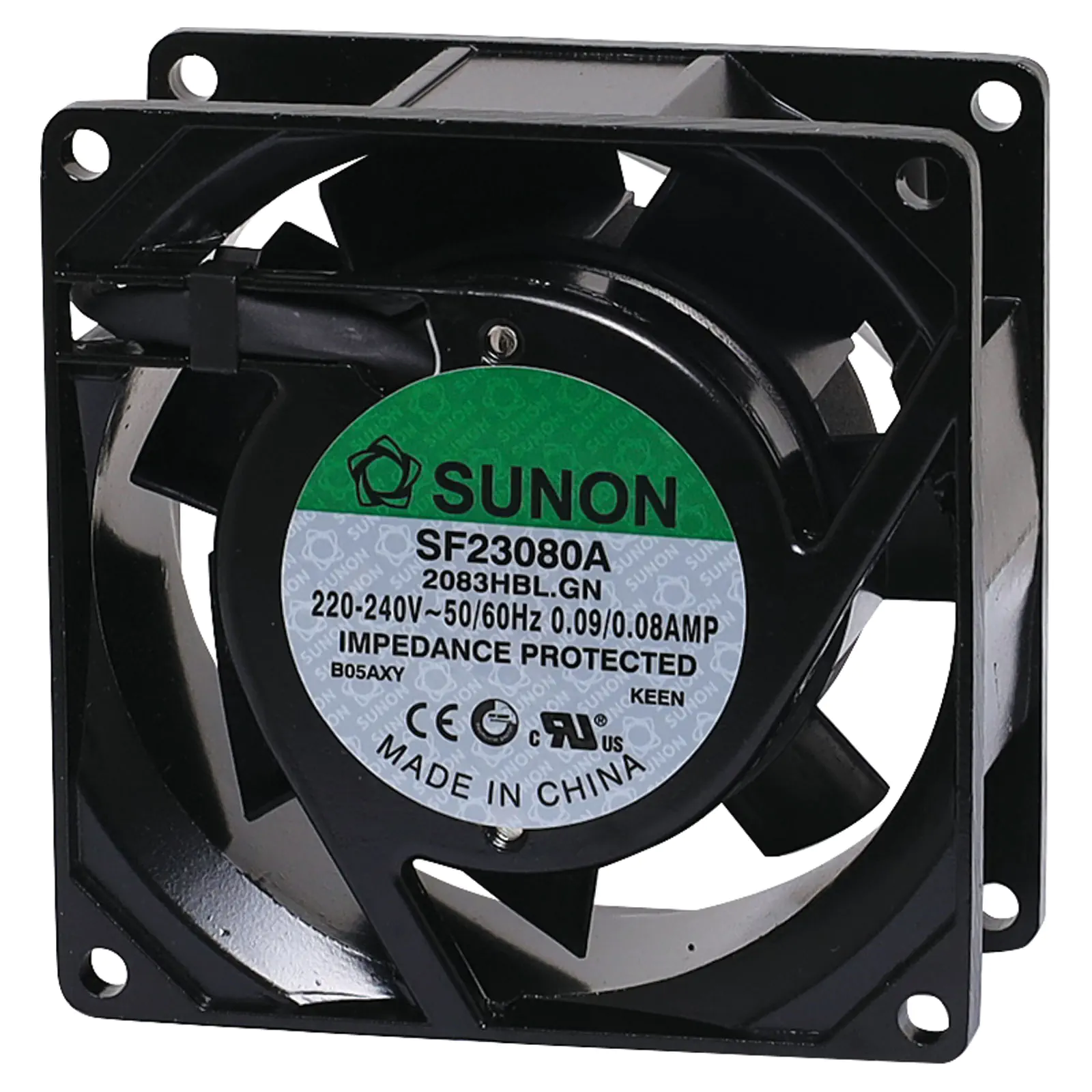

Sunon SF23080A-2083HBL.GN. A 240V AC 80mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

80mm 240VAC Ball Bearing Cooling Fan

Name: 80mm 240VAC Ball Bearing Cooling Fan
SKU: F1120
Price: 43.18 AUD
Availability: InStock

by: Sunon

SKU: F1120

Sunon SF23080A-2083HBL.GN. A 240V AC 80mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

$43.18

All Prices Shown are (ex GST)

Bulk Pricing

ea	$43.18
4+	$38.86
10+	$34.55

i h

Overview
Details
Warranty
Downloads

Overview

Sunon SF23080A-2083HBL.GN 240V AC 80mm Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Specifications:

Mechanical Characteristics:

Motor Design: Shaded pole motor construction

Motor Protection: Impedance protected

Bearing System: Precision ball bearing system

Frame Material: Die-cast aluminium

Blade Material: Thermoplastic PBT of UL94V-0

Direction of Rotation: Counter clockwise viewed from the front of the fan blade

Connection: Fly leads (330mm)

Mounting Holes: 8x 4.3mm holes

Weight: 340g

Dimensions: 80 x 80 x 38mm

Electrical Characteristics:

Rated Voltage: 220-240V AC at 60/50Hz

Rated Current:

Rated Power:

Operating Voltage Range: 185-245V AC

Starting Voltage: 185V AC (25°C Power On/Off)

Operating Temperature: -10°C ~ +70°C

Storage Temperature: -40°C ~ +70°C

Performance Characteristics:

Rated Speed: 2400/2850 RPM ±10%

Air Flow: 24/31 CFM

Static Pressure: 0.13/0.19 Inch-H2O

Noise Level: 32/36.5dB(A)

Details

Products specifications

Warranty	12 Months
Hardware
Type	80mm Fans
Voltage	240V AC

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Data Sheet

PDF
