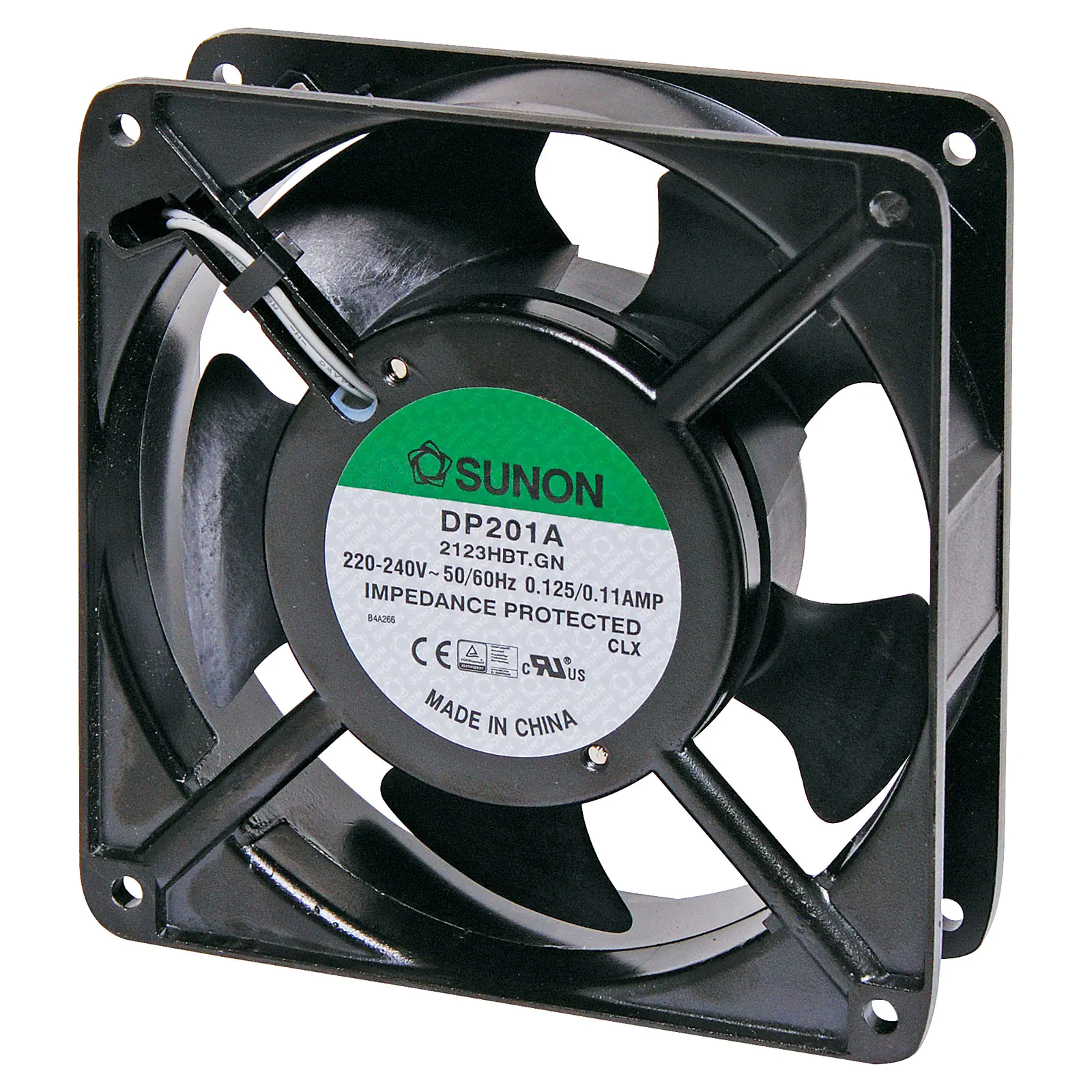

Sunon DP201A-2123HBT.GN. A 240V AC 120mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

120mm 240VAC Ball Bearing Cooling Fan

Name: 120mm 240VAC Ball Bearing Cooling Fan
SKU: F1130
Price: 31.77 AUD
Availability: InStock

by: Sunon

SKU: F1130

Sunon DP201A-2123HBT.GN. A 240V AC 120mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

$31.77

All Prices Shown are (ex GST)

Bulk Pricing

ea	$31.77
4+	$28.64
10+	$25.41

i h

Overview
Details
Warranty
Downloads

Overview

Sunon DP201A-2123HBT.GN 240V AC 120mm Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Specifications:

Mechanical Characteristics

Motor Design: Shaded pole motor construction

Motor Protection: Impedance protected

Bearing System: Precision ball bearing system

Frame Material: Die-cast aluminium

Blade Material: Thermoplastic PBT of UL94V-0

Direction of Rotation: Counter clockwise viewed from the front of the fan blade

Connection: Spade terminals (2.8mm)

Mounting Holes: 8x 4.3mm holes

Weight: 550g

Dimensions: 120 x 120 x 38mm

Electrical Characteristics

Rated Voltage: 220-240V AC at 50/60Hz

Rated Current (240V AC): 0.11A

Rated Power (240V AC): 19W

Operating Voltage Range: 185-245V AC

Starting Voltage: 185V AC (25° Power On/Off)

Operating Temperature: -10°C ~ +70°C

Storage Temperature: -40°C ~ +70°C

Performance Characteristics (at 240V AC)

Rated Speed: 3050 RPM ±10%

Air Flow: 107 CFM

Static Pressure: 0.32 Inch-H2O

Noise Level: 50dB(A)

Details

Products specifications

Warranty	12 Months
Hardware
Voltage	240V AC
Type	120mm Fans
