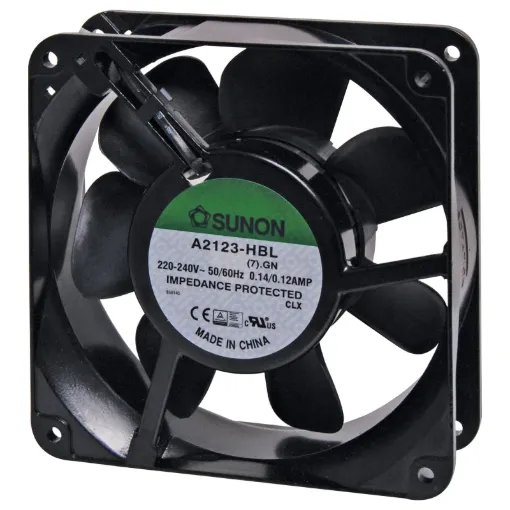

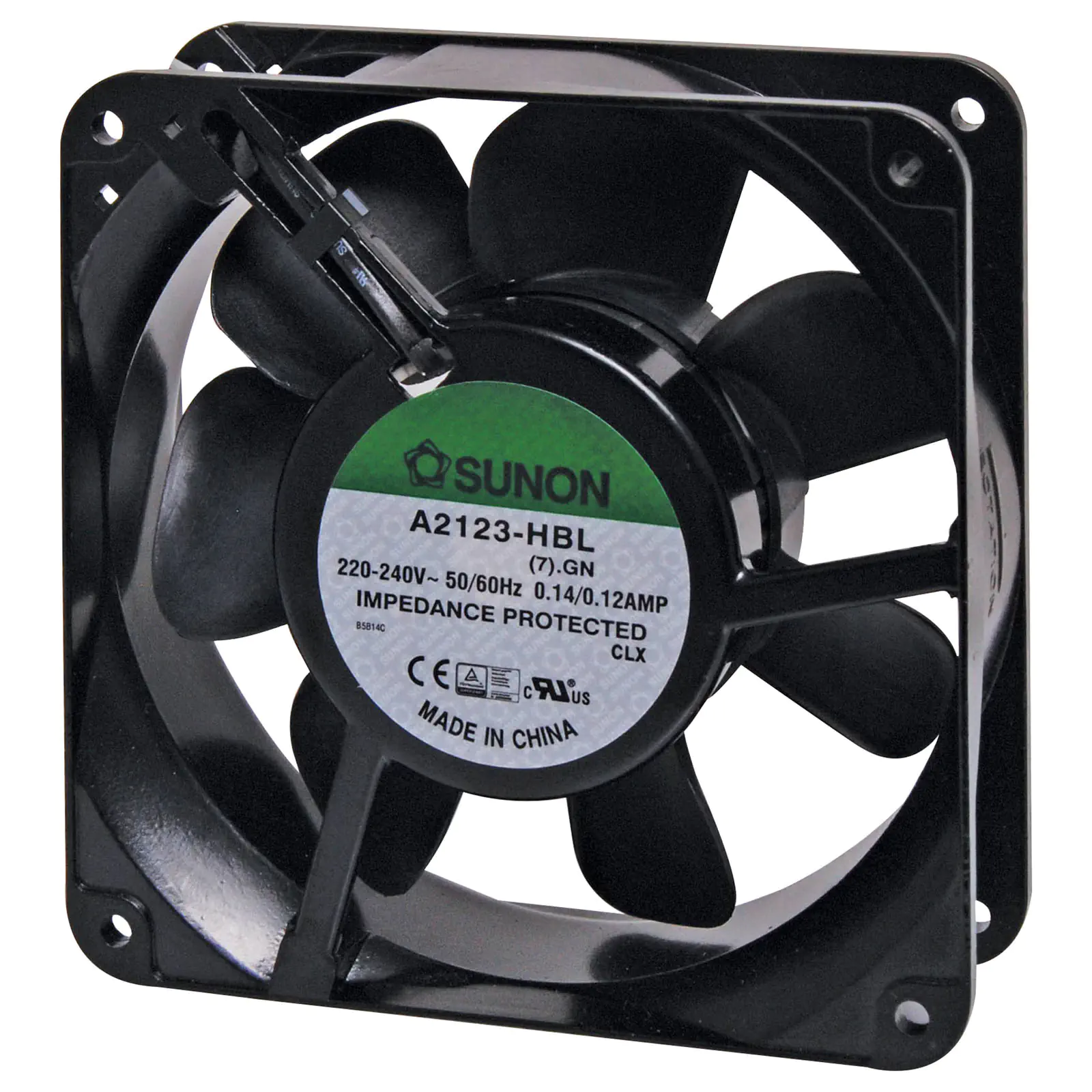

Sunon A2123-HBL.(7).GN. A 240V AC 120mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

120mm 240VAC Ball Bearing Cooling Fan

Name: 120mm 240VAC Ball Bearing Cooling Fan
SKU: F1131
Price: 53.64 AUD
Availability: InStock

by: Sunon

SKU: F1131

Sunon A2123-HBL.(7).GN. A 240V AC 120mm Sunon Ball Bearing Cooling Fan with diecast aluminium frame.

$53.64

All Prices Shown are (ex GST)

Bulk Pricing

ea	$53.64
4+	$50.00
10+	$44.55

i h

Overview
Details
Warranty
Downloads

Overview

Sunon A2123-HBL.(7).GN 240V AC 120mm Ball Bearing Cooling Fan with diecast aluminium frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Specifications:

Mechanical Characteristics

Motor Design: Shaded pole motor construction

Motor Protection: Impedance protected

Bearing System: Precision ball bearing system

Frame Material: Die-cast aluminium

Blade Material: Thermoplastic PBT of UL94V-0

Direction of Rotation: Counter clockwise viewed from the front of the fan blade

Connection: Fly leads (300mm)

Mounting Holes: 8x 4.3mm holes

Weight: 525g

Dimensions: 120 x 120 x 38mm

Electrical Characteristics

Rated Voltage: 220-240V AC at 50/60Hz

Rated Current: 0.14/0.12A

Rated Power: 24/22W

Operating Voltage Range: 150-250V AC

Starting Voltage: 150V AC (25°C Power On/Off)

Operating Temperature: -10°C ~ +70°C

Storage Temperature: -40°C ~ +70°C

Performance Characteristics

Rated Speed: 2500/2750 RPM ±10%

Air Flow: 112/124 CFM

Static Pressure: 0.30/0.28 Inch-H2O

Noise Level: 44/47dB(A)

Details

Products specifications

Warranty	12 Months
Hardware
Type	120mm Fans
Voltage	240V AC
