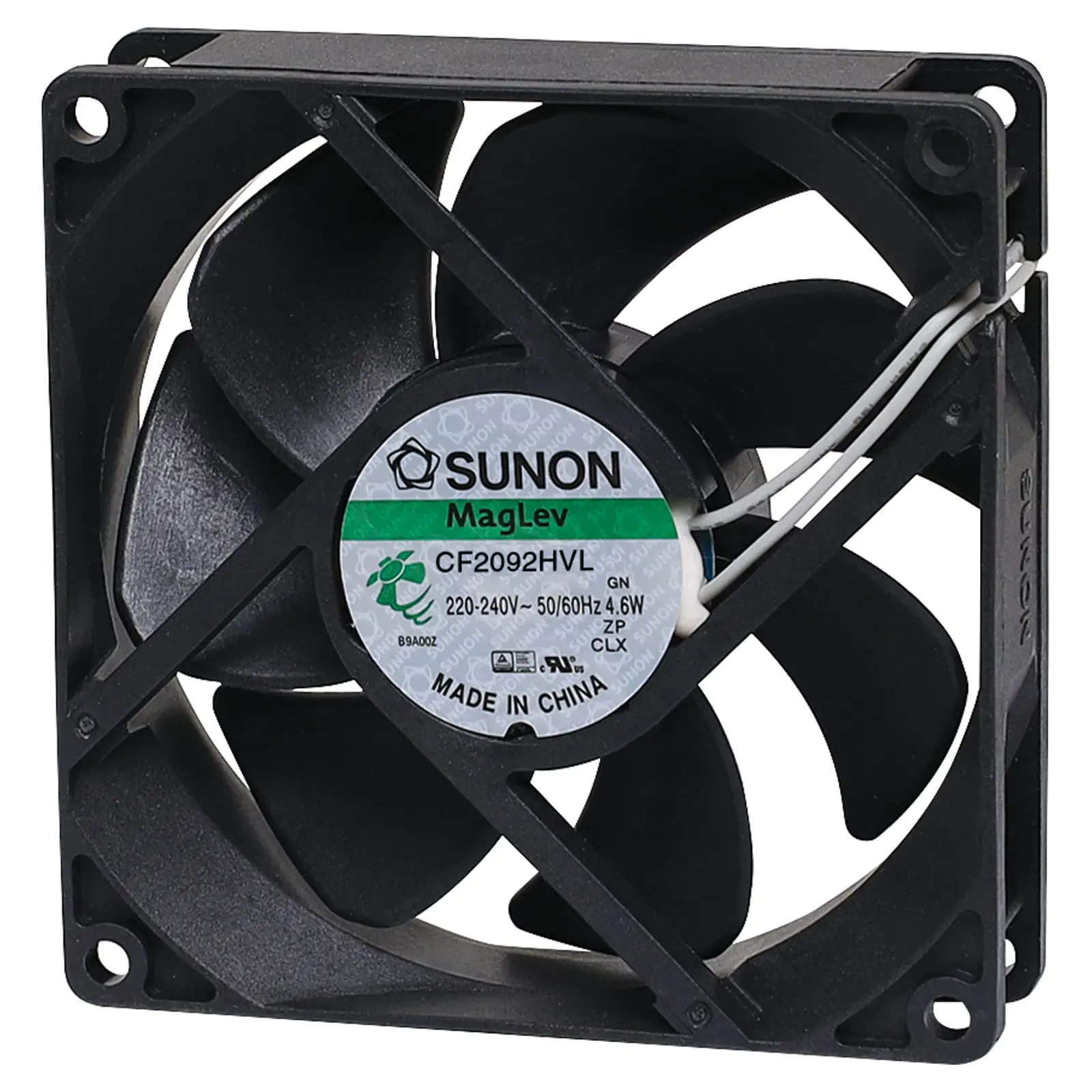

92mm 240VAC Maglev Bearing Cooling Fan

by: Sunon
SKU: F1158A
Sunon CF2092HVL-1000U-999. A 240V AC 92mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame.
$54.50

All Prices Shown are (ex GST)
Bulk Pricing
ea $54.50
4+ $49.05
10+ $43.59
i h

Overview

Sunon CF2092HVL-1000U-999 240V AC 92mm Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

About Sunon Maglev Bearing Design
Sunon's maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.





Specifications:



Mechanical Characteristics:

Motor Design: 2 phases, 4 poles brushless DC motor

Motor Protection: Impedance protected

Bearing System: Vapo bearing system

Frame Material: Thermoplastic PBT of UL94V-0

Blade Material: Thermoplastic PBT of UL94V-0

Direction of Rotation: Counter clockwise viewed from the front of the fan blade

Connection: Fly leads (300mm)

Mounting Holes: 8x 4.3mm holes

Weight: 119.7g

Dimensions: 92 x 92 x 25mm



Electrical Characteristics:

Rated Voltage: 220-240V AC at 50/60Hz

Rated Current: 225mA (230mA max)

Input Power: 4.6W

Operating Voltage Range: 150-250V AC

Starting Voltage: 150V AC (25°C Power On/Off)

Operating Temperature: -10°C ~ +70°C

Storage Temperature: -40°C ~ +70°C



Performance Characteristics:

Rated Speed: 2900/3000 RPM ±20%

Air Flow: 52/54 CFM

Static Pressure: 0.12/0.14 Inch-H2O

Noise Level: 31/32dB(A)

Insulation Resistance: 10MΩ (min) at 500V DC

Dielectric Strength: 1500V AC for one second

Details

Products specifications

Warranty 12 Months
Hardware
Voltage 240V AC
Type 92mm Fans

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
