120mm 24VDC Ball Bearing Cooling Fan

by: Sunon
SKU: F1159

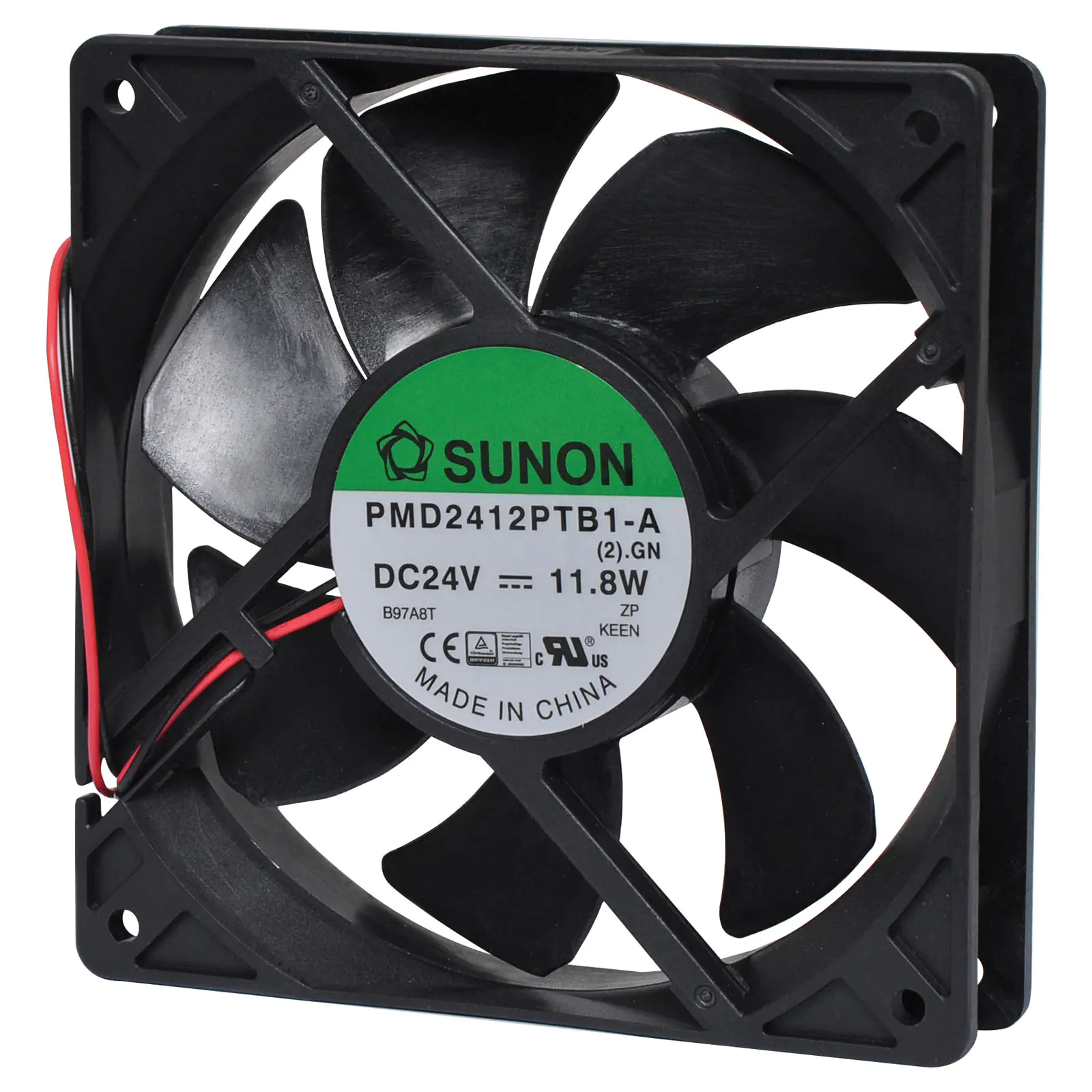

Sunon PMD2412PTB1-A (2).GN. A 24V DC 120mm Sunon Ball Bearing Cooling Fan with thermoplastic frame.
$59.55

All Prices Shown are (ex GST)
Bulk Pricing
ea $59.55
4+ $53.59
10+ $47.73
i h

Overview

Sunon PMD2412PTB1-A (2).GN 24V DC 120mm Ball Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.





Specifications:



Mechanical Characteristics

Motor Design: 4 poles brushless DC motor

Bearing System: Precision ball bearing system

Frame Material: Thermoplastic PBT of UL94V-0

Blade Material: Thermoplastic PBT of UL94V-0

Direction of Rotation: Counter clockwise viewed from the front of the fan blade

Connection: Fly leads (300mm)

Mounting Holes: 8x 4.3mm holes

Weight: 220g

Dimensions: 120 x 120 x 25mm



Electrical Characteristics

Rated Voltage: 24V DC

Rated Current: 490mA

Rated Power: 11.8W

Operating Voltage Range: 10~27.6V DC

Starting Voltage: 10V DC (25°C Power On/Off)

Operating Temperature: -10°C ~ +70°C

Storage Temperature: -40°C ~ +70°C



Performance Characteristics

Rated Speed: 4500 RPM ±10%

Air Flow: 150 CFM

Static Pressure: 0.62 Inch-H2O

Noise Level: 54dB(A)

Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)

Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)

Protection: Automatic restart, polarity protection

Details

Products specifications

Warranty 12 Months
Hardware
Type 120mm Fans
Voltage 24V DC
