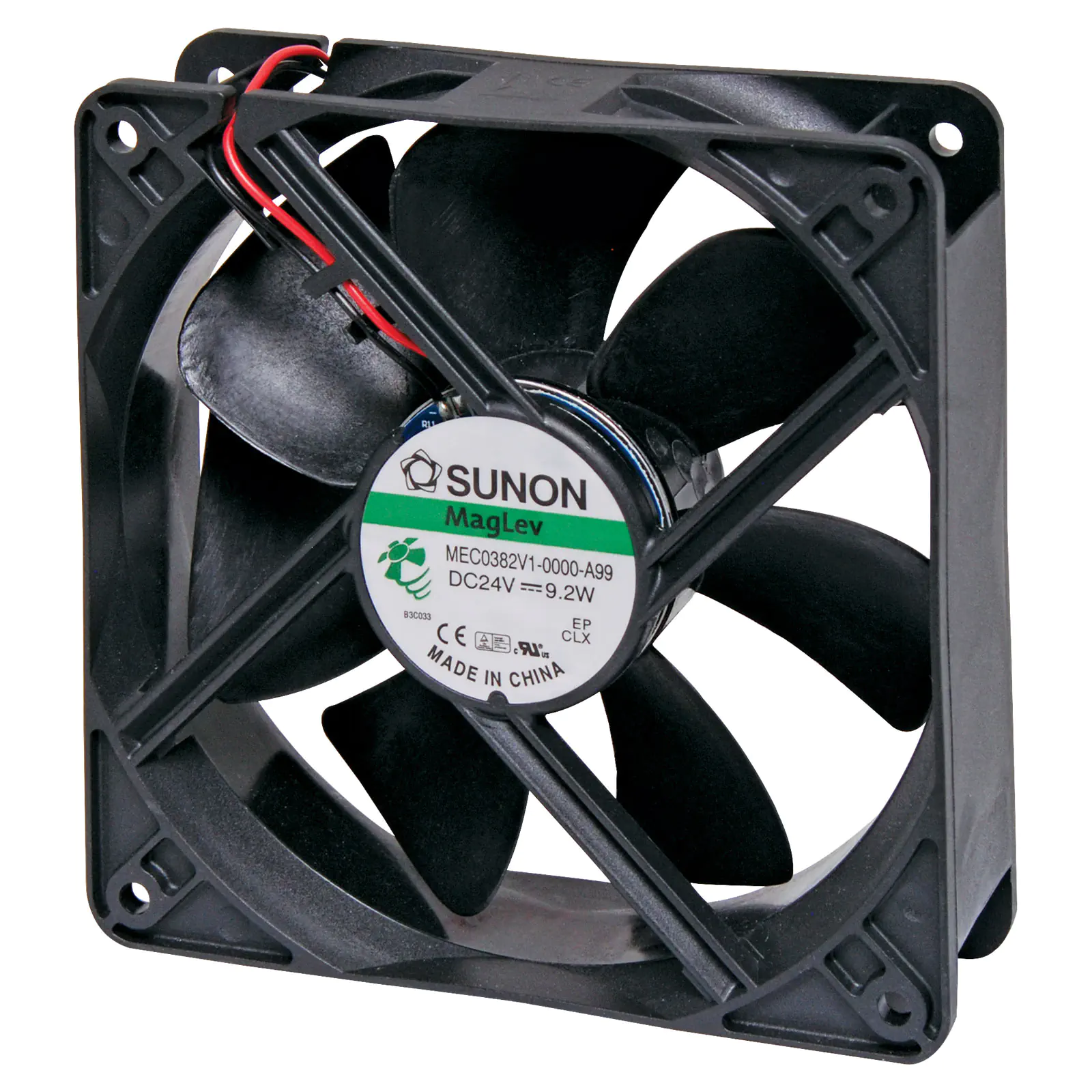

Sunon MEC-0382V1-000U-A99. A 24V DC 120mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame.

120mm 24VDC Maglev Bearing Cooling Fan

Name: 120mm 24VDC Maglev Bearing Cooling Fan
SKU: F1160
Price: 30.86 AUD
Availability: InStock

by: Sunon

SKU: F1160

Sunon MEC-0382V1-000U-A99. A 24V DC 120mm Sunon Maglev/Vapo Bearing Cooling Fan with thermoplastic frame.

$30.86

All Prices Shown are (ex GST)

Bulk Pricing

ea	$30.86
4+	$27.95
10+	$24.77

i h

Overview
Details
Warranty
Downloads

Overview

Sunon MEC-0382V1-000U-A99 24V DC 120mm Maglev/Vapo Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon^® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

About Sunon Maglev Bearing Design
Sunon's maglev bearing system provides whisper quiet operation and superior resistance to dust and debris, extending the operational lifetime of the motor.

Specifications:

Mechanical Characteristics:

Motor Design: 2 phases, 4 poles brushless DC motor

Bearing System: Vapo bearing system

Frame Material: Thermoplastic PBT of UL94V-0

Blade Material: Thermoplastic PBT of UL94V-0

Direction of Rotation: Counter clockwise viewed from the front of the fan blade

Connection: Fly leads (330mm)

Mounting Holes: 8x 4.3mm holes

Weight: 218g

Dimensions: 120 x 120 x 38mm

Electrical Characteristics:

Rated Voltage: 24V DC

Rated Current: 383mA

Rated Power Consumption: 9.2W

Operating Voltage Range: 10~27.6V DC

Starting Voltage: 10V DC (25°C Power On/Off)

Operating Temperature: -10°C ~ +70°C

Storage Temperature: -40°C ~ +70°C

Performance Characteristics:

Rated Speed: 3100 RPM ±10% at rated voltage

Air Flow: 138 CFM

Static Pressure: 0.36 Inch-H2O

Noise Level: 48dB(A)

Insulation Class: UL Class A

Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)

Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)

Life Expectancy: 60,000 hours at 40°C, 65% RH, 90% CL

Protection: Automatic restart, polarity protection

Details

Products specifications

Warranty	12 Months
Hardware
Type	120mm Fans
Voltage	24V DC

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

Data Sheet

PDF
