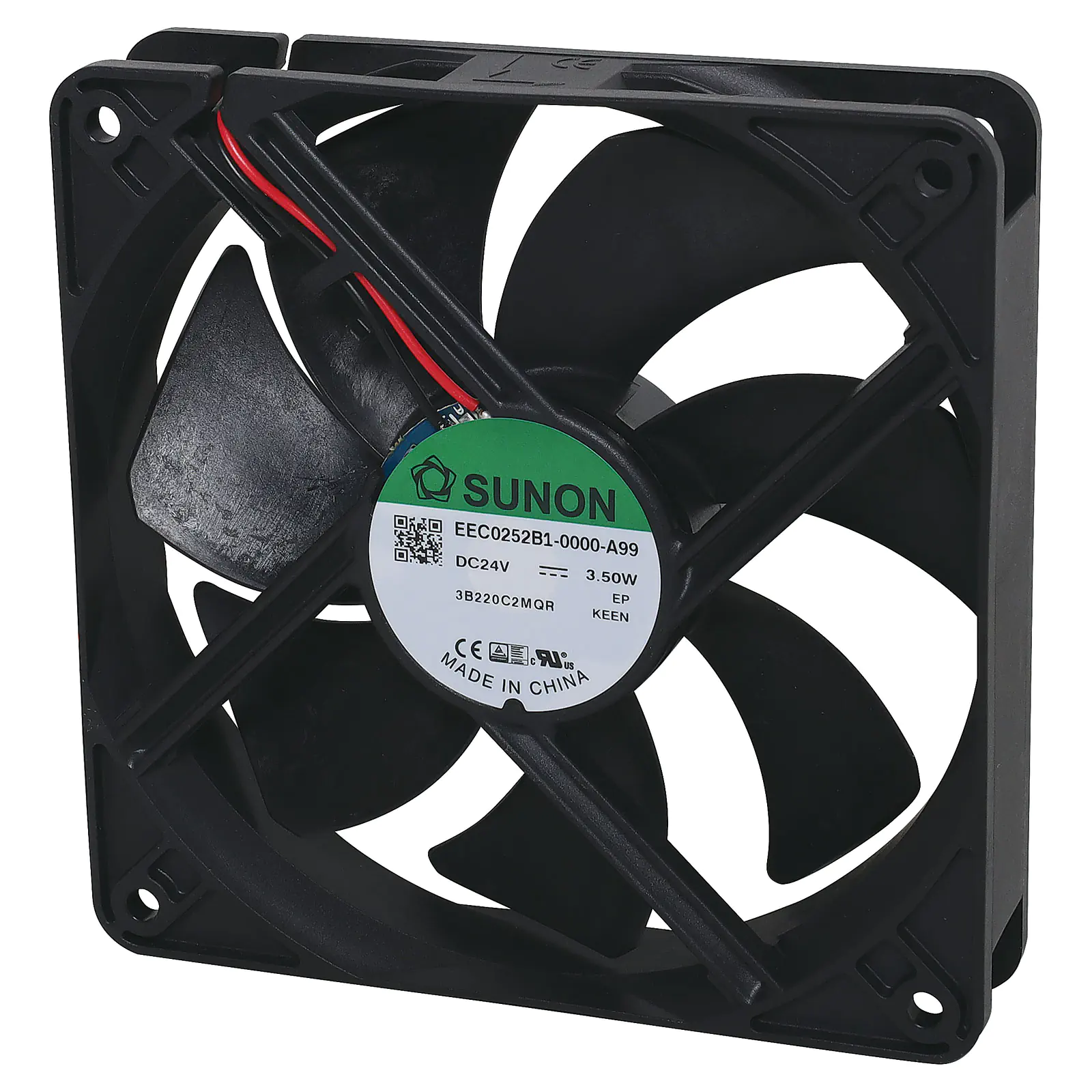

Sunon EEC0252B1-000U-A99. A 24V DC 120mm Sunon Ball Bearing Cooling Fan with thermoplastic frame.

120mm 24VDC Ball Bearing Cooling Fan

Name: 120mm 24VDC Ball Bearing Cooling Fan
SKU: F1163
Price: 31.77 AUD
Availability: InStock

by: Sunon

SKU: F1163

Sunon EEC0252B1-000U-A99. A 24V DC 120mm Sunon Ball Bearing Cooling Fan with thermoplastic frame.

$31.77

All Prices Shown are (ex GST)

Bulk Pricing

ea	$31.77
4+	$28.64
10+	$25.41

i h

Overview
Details
Warranty
Downloads

Overview

Sunon EEC0252B1-000U-A99 24V DC 120mm Ball Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.

Note: Other models are available for your specific OEM requirements, please contact us for details.

Specifications:

Mechanical Characteristics:

Motor Design: 2 phases, 4 poles, brushless DC motor

Bearing System: Precision ball bearing system

Frame/Fan Blade Material: Thermoplastic PBT of UL 94V-0

Rotation: Counter-clockwise (viewed from the front of the blade)

Connection: Fly leads (330mm)

Mounting Holes: 8 x 4.3mmØ

Dimensions: 120 x 120 x 25mm

Weight: 157g

Electrical Characteristics:

Rated Voltage: 24V DC

Rated Current: 207mA

Rated Power Consumption: 5.0W

Operating Voltage Range: 10 ~ 27.6V DC

Starting Voltage: 10V DC (25°C power on/off)

Operating Temperature Range: -10°C ~ +70°C

Storage Temperature Range: -40°C ~ +70°C

Performance Characteristics:

Rated Speed: 3100 RPM ± 10% at rated voltage

Air Flow: 108.2 CFM

Static Pressure: 0.28 Inch-H2O

Acoustic Noise: 44.5dB (A)

Insulation Class: UL Class 5

Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)

Dielectric Strength: Applied 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)

Life Expectancy: 70,000 hours at 40°C, 60% humidity, 90% CL

Protections: Automatic Restart, Polarity Protection

Details

Products specifications

Warranty	12 Months
Hardware
Type	120mm Fans
Voltage	24V DC
