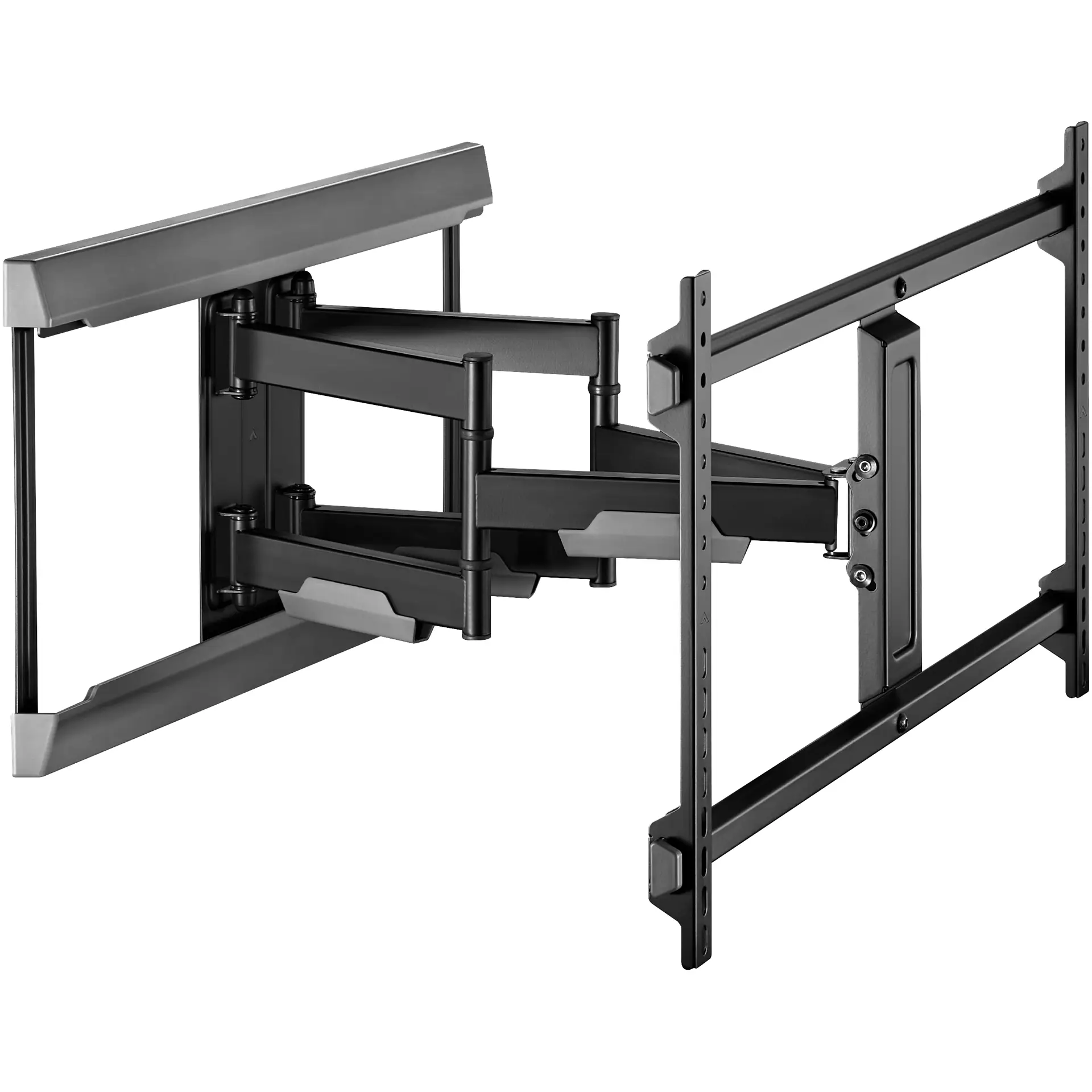

43-90" Swivel Flat Screen Wall Bracket

by: Dynalink
SKU: H8126D
This cantilever wall bracket is designed to mount flat or curved screens up to 60kg where quick screen adjustment is required.
$163.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $163.64
2+ $147.27
4+ $131.82
i h

Overview

This cantilever wall bracket is designed to mount flat or curved screens up to 60kg where quick screen adjustment is required. VESA compliant mounting dimensions from 300x300 to 800x400. +3° to -15° tilt adjustment is provided, plus swivel up to 60° in either horizontal direction to find an optimal viewing angle, avoiding glare and reducing eyestrain when viewing. Suits both 450mm and 600mm spaced stud walls. It also has a sliding feature where the mounting plate can be fitted to the wall studs and then the screen shifted left or right to suit the room.



Features:

  • Low profile design
  • +5 to 10° tilt adjustment.
  • 60° swivel adjustment.
  • Plastic mount covers provide a neat & tidy finish.
  • Cable management guides.
  • Built in levelling adjustment.
  • Makes easy forward or backward viewing angle adjustments for reduced glare and eye strain.
  • Sturdy and durable steel construction.





Specifications:

Panel Type: Detachable

Wall Plate Type: Lateral Shift

Material: Steel/Plastic/ABS

Surface Finish: Power Coating

Finish Colour: Black

Fit Screen Size: 43"-90", fits curved or flat TVs.

Mounting Hole Pattern: VESA & Universal

Mounting Hole (max): 800x400

VESA Compatible: 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400

Profile Depth: 63 ~ 536mm

Tilt Range: +5° to -10°

Swivel Range: +60° to -60°

Screen Level: +3° to -3°

Installation: Solid brick wall, suits both 450mm and 600mm spaced stud walls

Weight Capacity: 60kgs

Dimensions: 665 x 862 x 430mm
