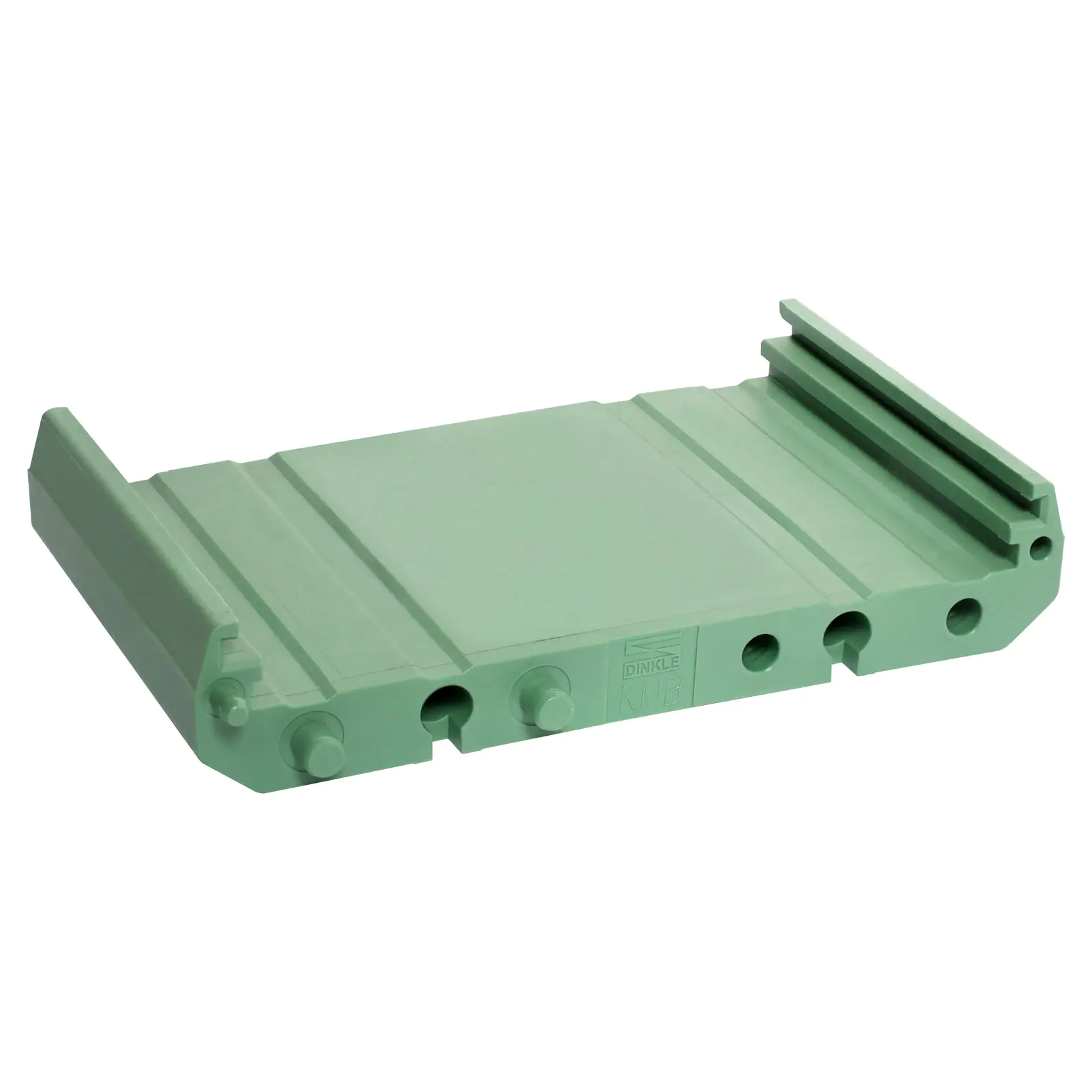

72x22.4mm DIN Rail Base Section

by: Dinkle
SKU: H8515A
Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 72mm PCB width, overall width 77.5mm.
$4.14

All Prices Shown are (ex GST)
Bulk Pricing
ea $4.14
10+ $3.73
40+ $3.27
i h

Overview

Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 72mm PCB width, overall width 77.5mm.

Calculating Total DIN Rail Length

The total PCB length that can be accommodated by a given section can be calculated by totalling up the total length of the base sections and adding 10mm for each endcap. Eg: 2 x 44.8mm bases and 1 x 11.2mm section + endcaps = 44.8 + 44.8 + 11.2 + 10 + 10 = 120.8mm
