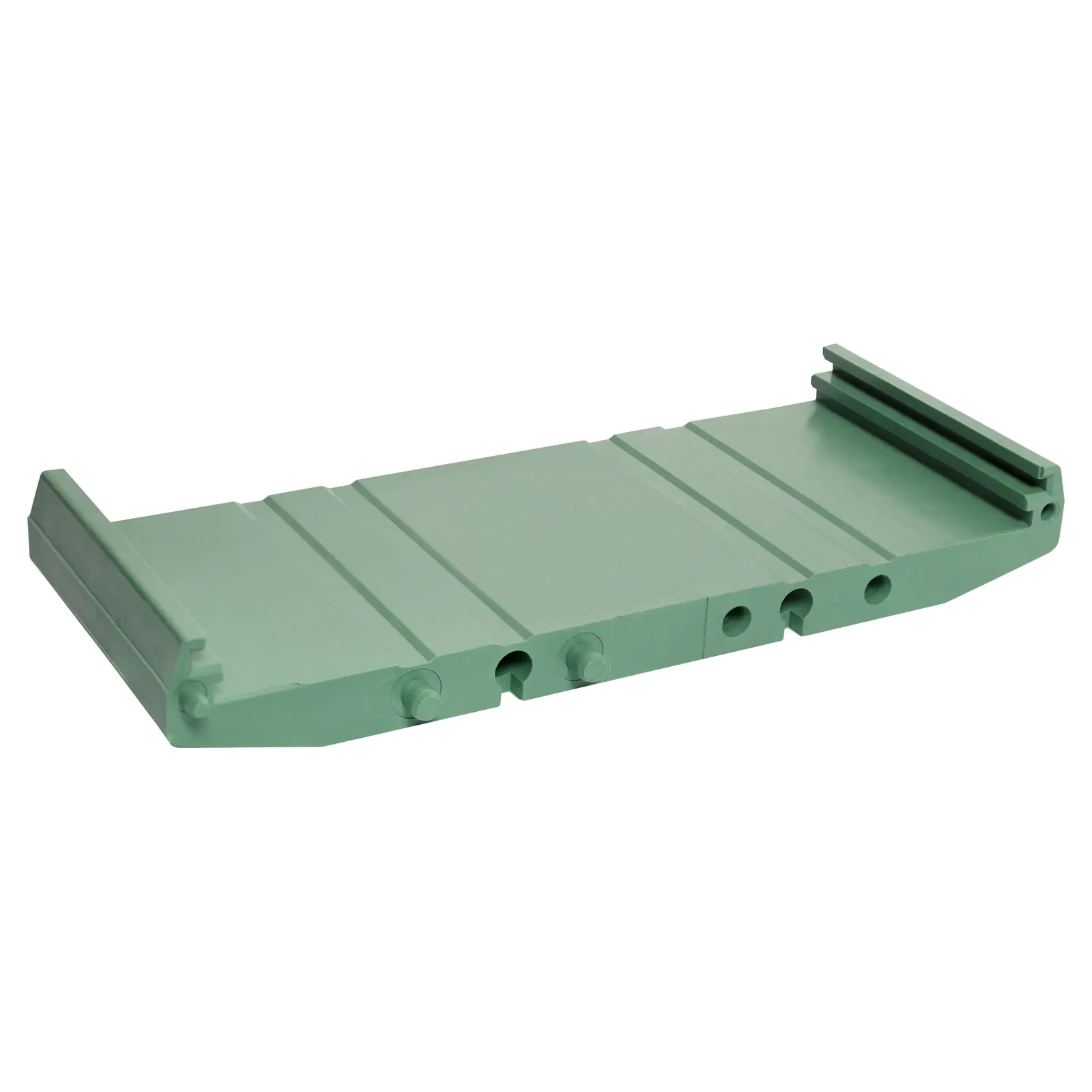

107.5x45mm DIN Rail Base Section

by: Dinkle
SKU: H8570A
107.5mm wide DIN rail base sections for PCB mounting. 45mm length.
$5.64

All Prices Shown are (ex GST)
Bulk Pricing
ea $5.64
10+ $5.14
40+ $4.50
i h

Overview

Base sections for DIN modules. Simply add section lengths together to obtain the required length of rail for your PCB. 107.5mm PCB width, overall width 112.7mm.

Calculating Total DIN Rail Length

The total PCB length that can be accommodated by a given section can be calculated by totalling up the total length of the base sections and adding 10mm for each endcap. Eg: 2 x 45mm bases and 1 x 11.2mm section + endcaps = 45 + 45 + 11.2 + 10 + 10 = 121.2mm

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.

Downloads

.pdf
Datasheet
PDF
