12U 450mm Deep 19" Rack System

SKU: HD5512
Constructed from 1.5mm black powdercoated steel, these 19" racks are ideal for communications, public address and IT server rooms. The design offers both the option of wall mounting or floor standing as desired.
$345.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $345.45
2+ $327.27
4+ $304.55
i h

Overview

Constructed from 1.5mm black powdercoated steel, these 19” racks are ideal for communications, public address and IT server rooms. The design offers both the option of wall mounting or floor standing as desired. Each package includes a rack frame, tempered glass front door, removeable rear and side panels, top and bottom panels. The front door and side panels are lockable. Front door can be rotated to open from left to right, or right to left. Provision for 1 x 120mm cooling fan in top panel. Design includes plenty of ventilation to keep equipment cool. For floorstanding installations H 5296 optional caster set may be fitted for added mobility. Supplied flatpack and assembles quickly.

Dimensions: 530W x 450D x 639H mm (Maximum equipment depth 360mm)

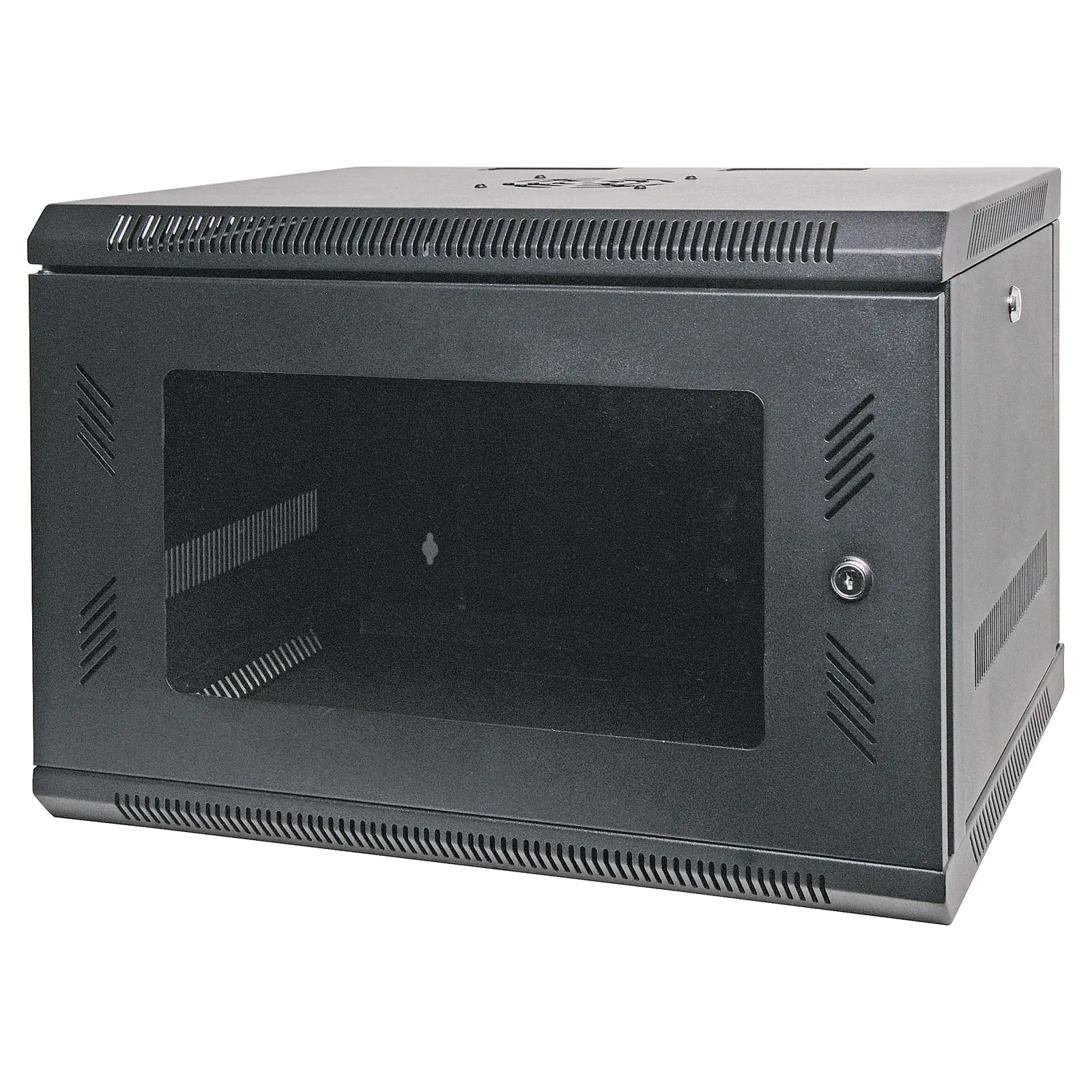

HD5506 Pictured for illustration purposes only



Features:

  • IP20 rated protection.
  • RAL9004/5 black colour.
  • SPCC cold rolled steel construction with 1.5mm steel mounting posts and back panel, 1.2mm frame.
  • Designed to comply with 19" international standard.
  • Max static load capacity 60kg.
  • Complies with ANSI/EIA RS-310-D, IEC297- 2,DIN41491 - PART1, DIN41494 - PART7, GB/3047.2-92 standard.
  • Adjustable mounting post to suit different depth equipment.
  • Tempered glass front door with 180 deg. rotatable lock.
  • Removable side and rear panels for easy installation and adjustment of equipment.
  • Ventilation in all doors.
  • Provision for 1 x 120mm cooling fan in top panel.
  • Cable entry on the top cover.
  • Adjustable cable entries in the bottom with panels.
  • Adjustable feet included.
  • Includes screws and cage nuts.
  • Cooling fan holes in top cover.
  • Supplied flat pack - assembles quickly.
  • Load bearing capacity 45kg

Details

Products specifications

Warranty 12 Months
Professional Audio
Type 19" Rack Cabinets, 19" Wall Mount Rack Frames

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
