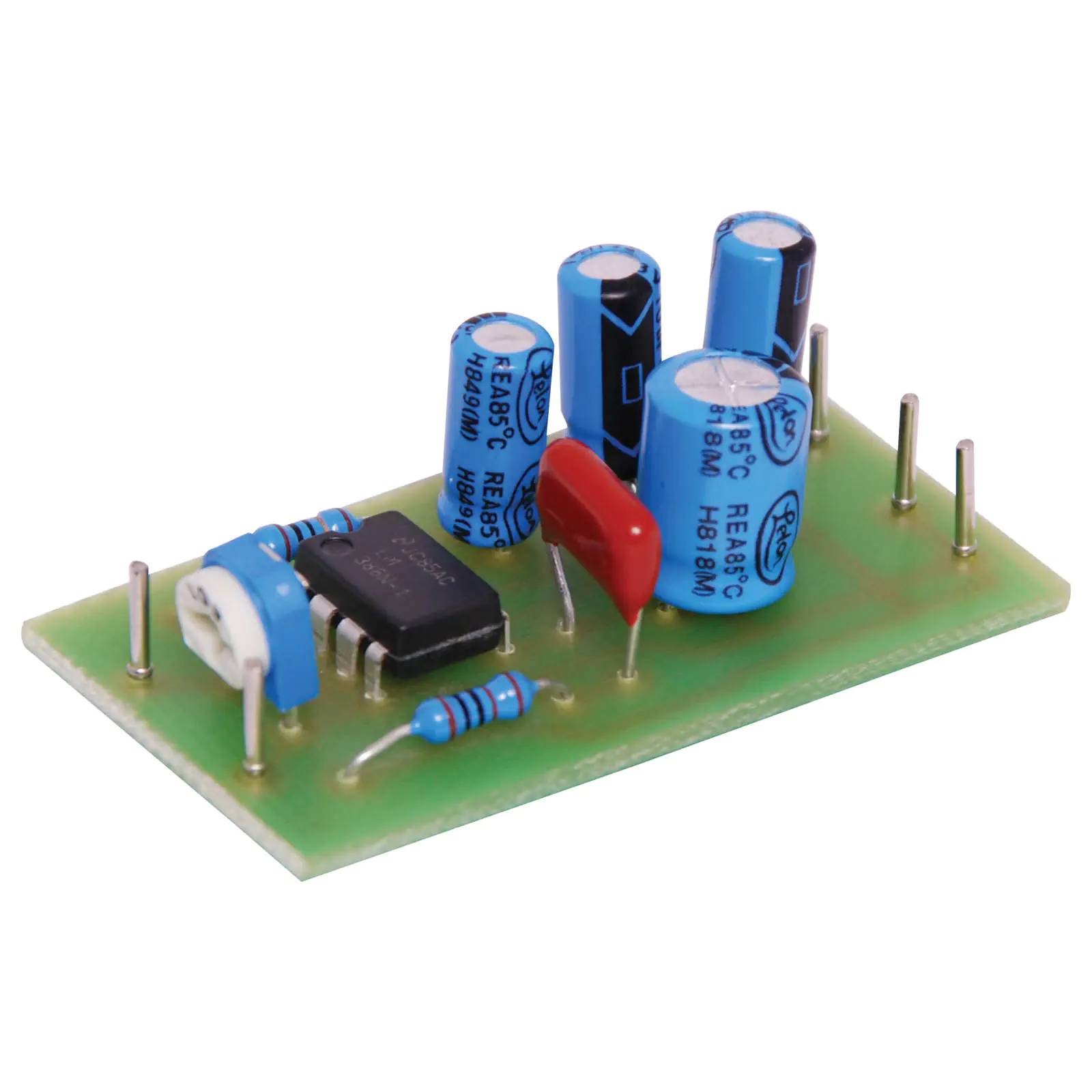

8 Ohm 0.5W Champ Power Amplifier Kit

by: Silicon Chip Magazine
SKU: K2115
Physically about the same size as a standard 9V battery, this compact little amplifier delivers 0.5W of power into 8 ohms from a 9V battery. Ideal for beginners, experimenting and small audio projects.(as seen in Silicon Chip Magazine Feb ’94)
$10.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $10.45
5+ $9.32
i h

Overview

Physically about the same size as a standard 9V battery, this compact little amplifier delivers 0.5W of power into 8 ohms from a 9V battery. Ideal for beginners, experimenting and small audio projects. Designed around the LM 386 audio amplifier IC, the circuit uses only a handful of components and works from 4 to 12V DC.(as seen in Silicon Chip Magazine Feb ’94)

Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Requires 1 x 9V battery (sold separately).

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
