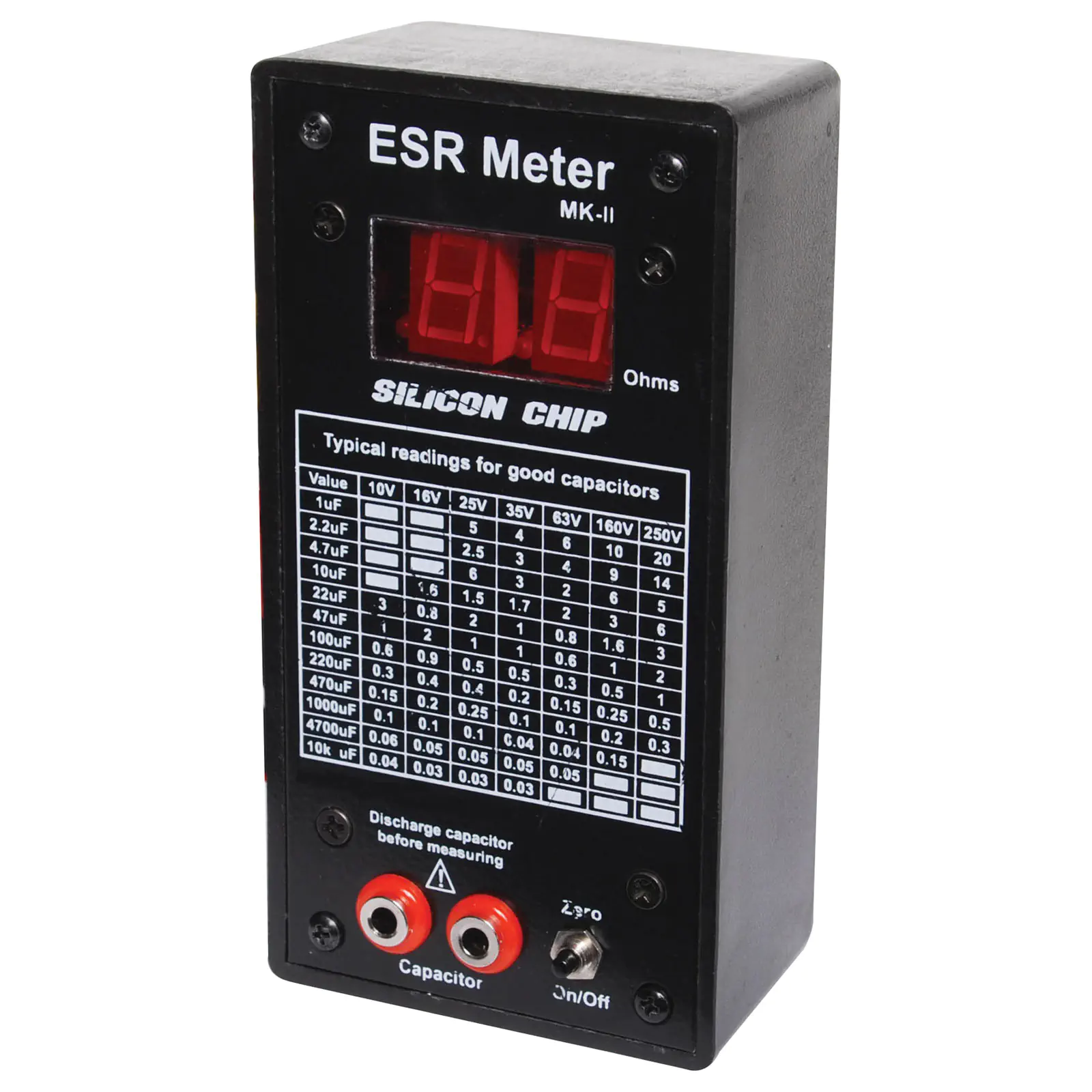

ESR Meter Kit

by: Silicon Chip Magazine
SKU: K2574
Allows quick "in-circuit" detection of defective electrolytic capacitors. 0.01-99Ω autoranging. Includes case & fully screened & punched front panel (as seen in Silicon Chip Magazine April ‘04).
$95.45

All Prices Shown are (ex GST)
Bulk Pricing
ea $95.45
5+ $84.77
i h

Overview

Identifies defective electrolytic capacitors instantly, without the need to remove it from the PC board. Capacitors can often show very high ESR levels whilst displaying the correct capacitance on a multimeter. In devices such as switch mode power supplies, high ESR in capacitors can cause such issues as loss of regulation, excessive high frequency noise etc. This compact ESR meter is an invaluable tool for the service technician. Supplied with punched and screened case. (as seen in Silicon Chip Magazine April ‘04).

Requires 6 x AAA batteries (sold separately)

Important Note For Kit Buyers:

This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Details

Products specifications

Warranty 12 Months

Warranty

WARRANTY

We offer 12 Months warranty on this product from its date of purchase. This is available from Altronics stores, online purchases or Altronics resellers. In accordance with our full warranty terms we will repair, replace or refund if goods you have purchased from us are defective.

30 DAY MONEY BACK GUARANTEE

Not withstanding our warranty policy, if you are dissatisfied with our goods or service you may return the goods within 30 days of our despatch date. Simply contact us for a return authorisation number and we will refund your purchase in full, less transport costs on receipt of goods. All returned goods must be in as sold condition including all packaging, instructions, invoices etc.
