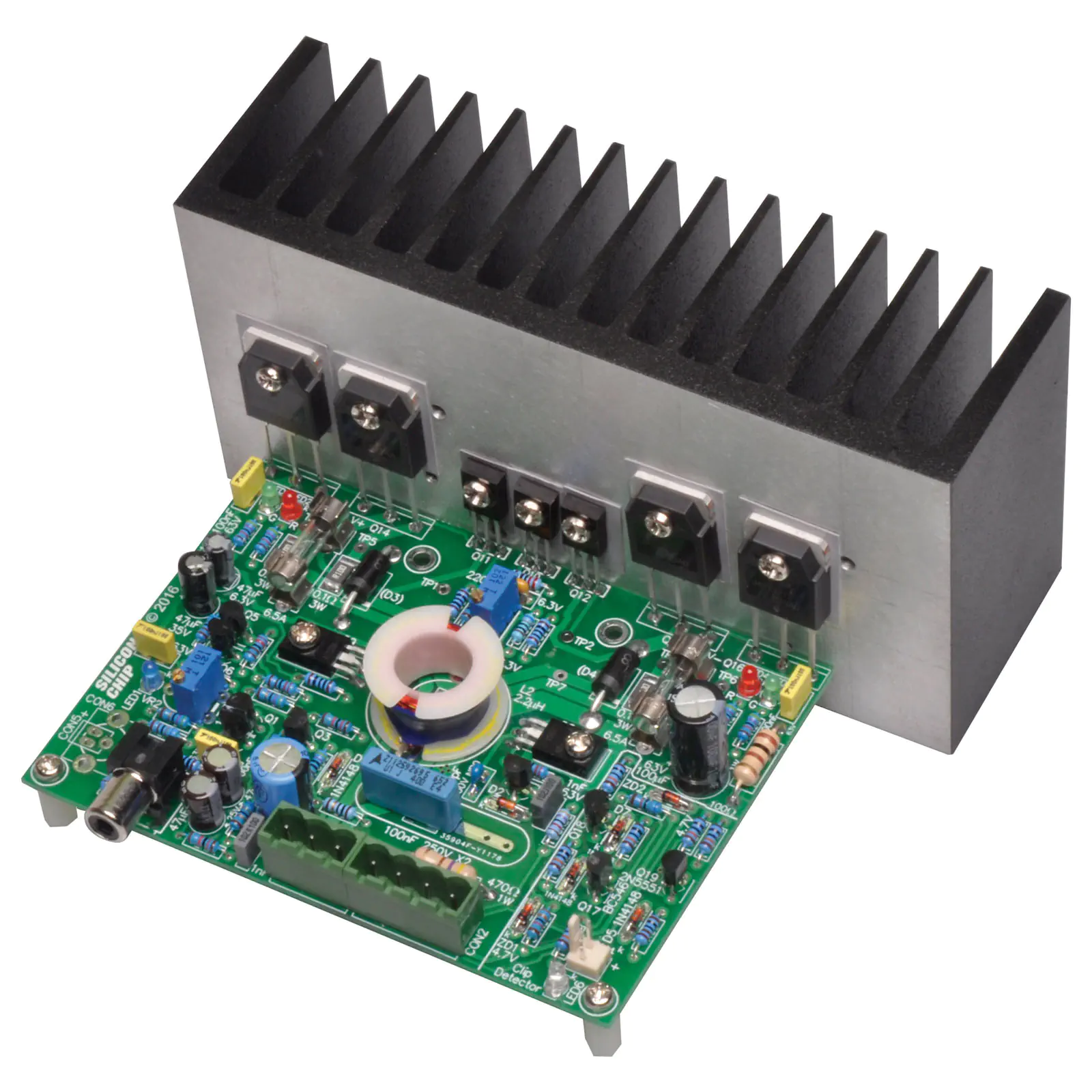

200W SC200 Amplifier Module Kit

by: Silicon Chip Magazine
SKU: K5157
This completely new amp design incorporates most of the features of Silicon Chip Ultra-LD Mk4 200W amp but uses easy-to-solder through-hole components - no SMD! (Silicon Chip  Jan-May ‘17).
$118.18

All Prices Shown are (ex GST)
Bulk Pricing
ea $118.18
4+ $109.09
i h

Overview

This completely new amp design incorporates most of the features of Silicon Chip Ultra-LD Mk4 200W amp but uses easy-to-solder through-hole components - no SMD! 200W into 4Ω load. (Silicon Chip  Jan-May ‘17).

Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

NOTE: Includes undrilled heatsink.





Specifications:



Output power (230VAC mains): 200W RMS into 4Ω, 135W RMS into 8Ω

Frequency response (10Hz-20kHz): +0,-0.05dB (8Ω); +0,-0.12dB (4Ω)

Input sensitivity: 1.26V RMS for 135W into 8Ω; 1.08V RMS for 200W into 4Ω

Input impedance: 11.85kΩ shunted with 1nF

Rated Harmonic Distortion (4Ω, 8Ω): <0.01%, 20Hz-20kHz, 20Hz-30kHz bandwidth

Signal-to-Noise Ratio: -116dB unweighted with respect to 135W into 8Ω(20Hz-20kHz)

Damping factor: ~250

Stability: unconditionally stable with any nominal speaker load 4Ω

Music power: 170W (8Ω), 270W (4Ω)

Dynamic headroom: 1dB (8Ω), 1.3dB (4Ω)

Power supply: ±57V DC from a 40-0-40 transformer

Quiescent current: 88mA nominal

Quiescent power: 10W nominal

Output offset: typically <10mV untrimmed; <1mV trimmed
